快速報價: EXFO FTBx-750C-SM3

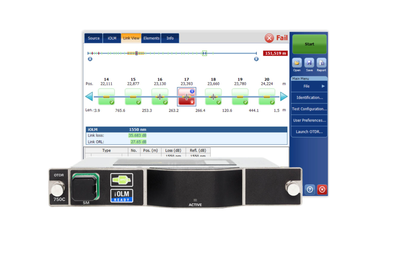

EXFO FTBx-750C-SM3
OTDR Module; SM 1310/1550/1625 nm
型號
FTBx-750C-SM3產品類別
Network & Fiber Installations製造商
EXFO配置型號包含以下特性:
Network & Fiber InstallationsOptical Time Domain ReflectometersVery Long Range: 42dB - 46dB1310/1550/1625nmHandheldModular配置
技术指标
產品總覽
資源
讓我們為您提供準確的配置
技术指标
在選擇附件時標明其特性， 有關附件詳細資訊請參見“配置”選項。
| 特性 | 參數 |
|---|---|
| Dynamic Range (range) | Very Long Range: 42dB - 46dB |
| Wavelength | 1310/1550/1625nm |
| Form Factor | Handheld |
| Form Factor | Modular |
產品總覽
FTBx-750C - metro/long-haul OTDR
High dynamic range combined with high resolution for highly accurate fiber characterization.
| Key Features |
| Dynamic range of up to 46 dB |
| Event dead zone of 0.5 m and attenuation dead zone of 2.5 m |
| Up to 256 000 sampling points |
| EXFO Connect-compatible: automated asset management; data goes through the cloud and into a dynamic database |
| Applications |
| Metro network testing |
| Long-haul network testing |
| Specifications | |
| FTBx-750C metro/longhaul OTDR | |
| Features | Parameters |
| Wavelengths (nm)¹ | 1310 ± 20/1550 ± 20/1625 ± 10 |
| Dynamic Range at 20 ms (dB)² | 1310/1550 model: dynamic range = 46/46 dB 1310/1550/1625 model: dynamic range = 45/45/45 dB |
| Event Dead Zone (m)³ | 0.5 |
| Attenuation Dead Zone (m)⁴ | 2.5 |
| Distance Range (km) | 0.1 to 400 |
| Pulse Width (ns) | 3 to 20 000 |
| Linearity (dB/dB)¹ | ±0.03 |
| LossThreshold (dB) | 0.01 |
| Loss Resolution (dB) | 0.001 |
| Sampling Resolution (m) | 0.04 to 10 |
| Sampling Points | Up to 256 000 |
| Distance Uncertainty (m)⁵ | ±(0.75 + 0.0025 % x distance + sampling resolution) |
| Measurement Time | User-defined (maximum: 60 minutes) |
| Typical Real-Time Refresh (Hz) | 4 |
| Stable Source Output Power (dBm)⁶ | 1.5 |
| Reflectance (dB)¹ | ±2 |
| Stable Source Output Power (dBm) | –2.5 |
| Reflectance (dB)¹ | ±2 |
Notes:
¹ Typical.
² Typical dynamic range with a three-minute averaging at SNR = 1.
³ Typical for reflectance from –35 dB to –55 dB, at 3-ns pulse.
⁴ Typical at 1310 nm, for reflectance at –55 dB. Attenuation dead zone is 3.5 m typical at 1310 nm with reflectance below –45 dB.
⁵ Does not include uncertainty due to fiber index.
⁶ Typical output power value at 1550 nm.
| Specifications | |
| FTBx-750C metro/longhaul OTDR | |
| Mode Overview | |
| Model | Description |
| FTBx-750C | OTDR |
| Optical Configuration (FTBx-750C-XX) | |
| SM1 | SM OTDR module, 1310/1550 nm |
| SM3 | SM OTDR module, 1310/1550/1625 nm |
| Base Software (FTBx-750C-XX-XX) | |
| OTDR | Enables OTDR application only |
| iOLM | Enables iOLM application only |
| Oi | Enables OTDR and iOLM applications |
| Singlemode Connector (FTBx-750C-XX-XX-XX) | |
| EA-EUI-28 | APC/DIN 47256 |
| EA-EUI-89 | APC/FC narrow key |
| EA-EUI-91 | APC/SC |
| EA-EUI-95 | APC/E-2000 |
| EA-EUI-98 | APC/LC |
| iOLM Software Option (FTBx-750C-XX-XX-XX-XX) | |
| 00 | iOLM Standard |
| iADV | iOLM Advanced |
| iPRO | iOLM Pro |
| iLOOP | iOLM loopback mode |
| iCERT | iOLM tier-2 certification |
Note:
EI Connectors: To maximize the performance of your OTDR, EXFO recommends using APC connectors on singlemode port. These connectors generate lower reflectance, which is a critical parameter that affects performance, particularly in dead zones. APC connectors provide better performance than UPC connectors, thereby improving testing efficiency.
For best results, APC connectors are mandatory with the iOLM application.
UPC connectors are also available. Simply replace EA-XX by EI-XX in the ordering part number. Additional connector available: EI-EUI-90 (UPC/ST).
| Important Mainframe Details |
These OTDR Modules are generally bundled with a handheld mainframe. Ready to be used as a unit to shoot fiber optic cables and to test link loss at the job site. For full information on mainframe capability, check the configuration to see which mainframe is bundled. Then, check our page on EXFO OTDR mainframes for full descriptions and datasheets. |
資源
文檔資料
Exfo FTBx-750C metro/longhaul OTDR Data Sheet
