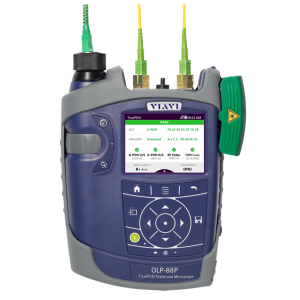

The VIAVI Solutions® OLP-88 TruePON tester is the ideal tool for field technicians dealing with G-PON and XGS-PON network service activation and for support teams charged with resolving service complaints and identifying the sources of issues. TruePON uses G-PON data analysis for real-time measurement of fiber optic cable insertion loss, downstream and upstream power levels, ODN class, and for instantaneous identification of OLT-ID ONU/ONT-ID as well as rogue ONUs causing service issues.
VIAVI Solutions® OLP-88 TruePON 測試儀是處理 G-PON 和 XGS-PON 網路服務啟動的現場技術人員以及負責解決服務投訴和識別問題來源的支援團隊的理想工具。 TruePON 使用 G-PON 資料分析來即時測量光纖電纜插入損耗、下行和上行功率等級、ODN 類別，並即時識別 OLT-ID ONU/ONT-ID 以及導致服務問題的惡意 ONU。
Key Features:
- 適用於 B-PON、E-PON、G-PON、XGS-PON 和 10G-EPON 網路的波長選擇性直通模式功率計
- 提供 1310/1490 nm、1310/1490/1550 nm 和 1270/1310/1490/1577 nm 版本
- 自動 ODN 類別偵測和功率級通過/失敗分析
- 在用損耗測量
- OLT 識別； ONU/ONT序號提取；惡意和外來 ONU 檢測
- 低插入損耗 (<1.5 dB)
- 使用內建跳線顯微鏡或選購的 P5000i 探頭自動進行通過/失敗光纖檢測分析
- 輕鬆產生專業認證報告
立即前往挑選更多 : 光功率計
| Specifications |
|
|
|
| OLP-88 and OLP-88P |
|
|
|
| Functionality |
|
|
|
| Model | Version 2327/26 (1310/1490) | Version 2327/36, 2328/36 (1310/1490/1550) | Version 2327/37 (1270/1310/1490/1577) |
| B-PON (ITU-T G983.x) | X | X | X |
| G-PON (ITU-T G984.x) | X | X | X |
| E-PON (IEEE 802.3av) | X | X | X |
| XGS PON (ITU-T G.9807.1) |
|
| X (Option) |
| 10G-EPON (IEEE 802.3av) |
|
| X (Option) |
| RF Video Signals 1550nm |
| X |
|
| Specifications |
|
|
|
| OLP-88 and OLP-88P |
|
|
|
| FTTx Mode |
|
|
|
| Model | Version 2327/26
(1310/1490)
| Version 2327/36, 2328/36
(1310/1490/1550)
| Version 2327/37
(1270/1310/1490/1577)
|
Upstream 1270 nm, Burst Mode
Power Measurement Range
Max Permitted Input Level
Spectral Passband
|
|
|
-40 to +13 dBm (1)(2)
+17 dBm
1250 to 1330 nm
|
Upstream 1310 nm, Burst Mode
Power Measurement Range
Max Permitted Input Level
Spectral Passband
|
-40 to +13 dBm (1)
+17 dBm
1290 to 1330 nm
|
-40 to +13 dBm (1)
+17 dBm
1290 to 1330 nm
|
-40 to +13 dBm (1)
+17 dBm
1250 to 1330 nm
|
Downstream 1490 nm
Power Measurement Range
Max Permitted Input Level
Spectral Passband
G-PON Data Analysis at 1490 nm
|
-45 to +7 dBm
+9 dBm
1450 to 1495 nm
-30 to +7 dBm
|
-45 to +7 dBm
+9 dBm
1450 to 1495 nm
-30 to +7 dBm
|
-45 to +7 dBm
+9 dBm
1450 to 1495 nm
-30 to +7 dBm
|
Downstream 1577 nm (2)
Power Measurement Range
Max Permitted Input Level
Spectral Passband
|
|
|
-45 to +13 dBm
+15 dBm
1528 to 1610 nm
|
RF Video Signals 1550 nm (3)
Power Measurement Range
Max Permitted Input Level
Spectral Passband
|
|
-45 to +26 dBm
+27 dBm
1540 to 1560 nm
|
|
Notes:
(1) Burst mode: -35 to +13 dBm
(2) For OLP-88 2327/37 version only, requires XGS-PON option 2327/94.04
(3) For OLP-88 2327/36, and 2328/36 versions only
| Specifications |
|
| OLP-88 and OLP-88P |
|
| Instrument |
|
| Display Resolution | 0.01 dBm/0.001 μW |
| Display Units/Information | dB, dBm, with pass/fail |
| ORL | >60 dB |
| Threshold Sets | ITU-T G.984.3 or user-specific thresholds |
| Pass-through Insertion Loss (4) | <1.5 dB |
| Power Uncertainty (4) | ±0.5 dB |
| Calibrated Wavelengths | 1270/1310/1490/1550/1577 nm |
Notes:
(4) At 23°C ±3°C, at 1310/1490/1550/1577 nm, at −7 dBm
| Specifications |
|
| OLP-88 and OLP-88P |
|
| General |
|
| Display | High-contrast 3.5 in color LCD with touch-screen functionality |
| Fiber Inspection Capability | With patch-cord microscope or external P5000i microscope (optional) |
| Data Memory | Up to 10,000 PON results |
| Data Readout | Via client USB interface |
| Electrical Interfaces | 2 x USB host, 1x micro USB, Ethernet |
| Wireless Interface | WiFi client (optional) |
| Power Supply | 12 V, 2 A with interchangeable wall plug for EU, UK, US, and AU |
| Battery | Li-ion pack 3.7 V, 20 Wh |
| Battery Life (Li-ion battery pack) | >12 hr |
| Optical Connectors | APC with SC switchable adapters (FC, ST and LC adapters optional) |
| Recommended Recalibration Interval | 3 years |
| Operating Temperature Range | –5˚ to +45˚C (23˚ to 113˚F) |
| Storage Temperature Range | –25˚ to +55˚C (–13˚ to 131˚F) |
| Specifications |
|
|
| OLP-88 and OLP-88P |
|
|
| Model | Dimensions (H x W x D) | Weight |
| OLP-88 | 208 x 112 x 64 mm
8.2 x 4.4 x 2.5 in
| 750 g
1.6 lbs
|
| OLP-88P | 208 x 153 x 64 mm
8.2 x 6.0 x 2.5 in
| 850 g
1.85 lbs
|
| Specifications |
|
| Ordering Information |
|
| Part Number | Description |
| 2327/26 | OLP-88 TruePON tester, 1310/1490 nm |
| 2327/36 | OLP-88 TruePON tester, 1310/1490/1550 nm |
| 2327/37 | OLP-88 TruePON tester, 1270/1310/1490/1577nm |
| 2328/36 | OLP-88P TruePON tester with patchcord microscope, 1310/1490/1550 nm |
All OLP-88 and -88P TruePON testers include:
- APC connector and SC optical adapter (x2)
- SC2 soft shoulder case
- Quick-start manual and safety instructions
- RBP2 rechargeable LiON battery pack (3.7 V, 20 Wh) and PS4 power supply (12 V, 2 A)
| Specifications |
|
| OLP-88 and OLP-88P |
|
| Accessories, Hardware/Sofware Options |
|
| Software Options |
|
| Part Number | Description |
| 2327/94.01 | OLP-88 Alien ONT detection |
| 2327/94.02 | OLP-88 GPON-ID test |
| 2327/94.04 | OLP-88 XGS-PON option (for 2327/37 only) |
| Hardware Options |
|
| 2327/90.21 | WiFi option including USB WiFi adapter |
| Accessories |
|
| FBP-SD101 | P5000i digital analysis microscope with 4 tips (FBPT-SC, FBPT-LC, FBPTU25M, FBPT-U12M) |
| 2155/00.32 | ST switchable optical adapter for OLP-88 |
| 2155/00.05 | FC switchable optical adapter for OLP-88 |
| 2155/00.07 | LC switchable optical adapter for OLP-88 |
| FITP-RCG1 | Kit, RBP2 rechargeable battery (Li ion) and FBPP-PS4 power supply (12 V) |
| FBPP-PS4 | Power supply for SmartClass Fiber (12 V) |
| FITP-RBP2 | Rechargeable battery for SmartClass Fiber (Li ion) |
| FITP-UC4 | UC4 hands-free carrier for SmartClass Fiber |
| FITP-UC4P | UC4P hands-free carrier for SmartClass Fiber with PCM |
| FBPP-SCASE2 | SCASE2 soft shoulder case for SmartClass Fiber tools |
