The ultimate CD/PMD characterization solution. The ultimate solution for CD/PMD characterization.
The high-speed networking market has been trying to reconcile two conflicting objectives: deliver the faster data rates—10G, 40G and 100G—demanded by subscribers, and keep OPEX down to maintain profitability. Most network operators are well on their way to achieving the first objective, thanks to new fiber deployments and new technology advances such as coherent detection, DPSK/DQPSK and ROADM-based mesh networks.
However, the additional field work—installation, activation as well as the greater dispersion granularity now required—can push operation expenses in the wrong direction. These new requirements force operators to retain the services of more field crews, potentially reducing the average expertise level of technicians and increasing the rate of repeat jobs.
In a nutshell, network operators must absorb more CAPEX to equip their additional technicians, and even more importantly, they must absorb more truck rolls and OPEX.
Key Features |
Single-ended testing of multiple links from one location for fewer truck rolls and reduced OPEX |
Fully automated, highly intelligent interface |
Standards-compliant approach |
From the no.1 vendor by market share for CD and PMD testing, based on Frost & Sullivan's 2014 FOTE study |
Get first-time-right results thanks to a single-button approach |
EXFO Connect-ready: automated asset management; data goes through the cloud and into a dynamic database |
Applications |
Accurate, complete 10 Gbit/s, 40 Gbit/s and 100 Gbit/s qualification |
Metro, core and long-haul network testing |
Effective fiber-type identification using lambda zero, CD slope and coefficient in Raman deployments |
Housed in either the compact FTB-2, FTB-2 Pro, FTB-200 or FTB-500 platform |
Specifications | |

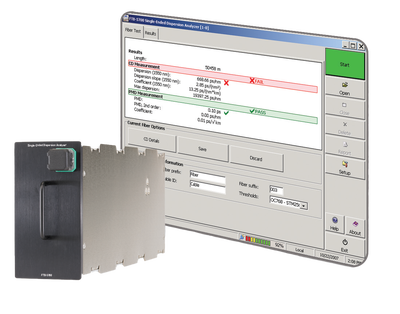

FTB-5700 - Single-Ended Dispersion Analyzer | |
Ordering Information | |
Model (FTB-5700-XX) | |
FTB-5700-CD-PMD | Single-ended CD and PMD analyzer |
FTB-5700-PMD | Single-ended PMD analyzer |
FTB-5700-CD | Single-ended CD analyzer |
Connector (FTB-5700-XX-XX) | |
EI-EUI-28 | UPC/DIN 47256 |
EI-EUI-76 | UPC/HMS-10/AG |
EI-EUI-89 | UPC/FC narrow key |
EI-EUI-90 | UPC/ST |
EI-EUI-91 | UPC/SC |
EI-EUI-95 | UPC/E-2000 |
EA-EUI-28 | APC/DIN 47256 |
EA-EUI-89 | APC/FC narrow key |
EA-EUI-91 | APC/SC |
EA-EUI-95 | APC/E-2000 |
