The Keysight M918xA Series (M9181A, M9182A, M9183A) compact digital multimeters (DMM) provide popular measurement functions such as DCV, ACV, DCI, ACI, 2- and 4-wire resistance, and more, with the accuracy and stability you would expect from a 6.5-digit PXI DMM. High performance in a small, rugged package gives you an ideal deployment platform for many automated test systems.
| Key Features |
| Compact PXI form factor and high throughput are ideal for automated test systems |
| PC multimeter card with fast measurement speeds to help you stay productive |
| Soft front panel, software drivers, and application code examples ease instrument control and integration into your existing systems |
| Factory calibrated and shipped with an ISO-9002, NIST-traceable calibration certificate |
| Benefits |
| Stay productive with high throughput up to 15,000 readings/s |
| Reduce development time with application development in the environment of your choice |
| Choose customer-supported calibration procedures as well as Keysight calibration services |
| Be confident with high measurement accuracy up to 40 ppm |
| Enjoy highest test throughput due to lowest latency |
| Get fast and easy instrument connections with Keysight IO Libraries Suite and complete software drivers for Windows OS |
| Specifications |
|
M918xA Series
6.5 Digit PXI Digital Multimeters
|
|
| Model Overview |
|
| Model | Description |
| M9181A | 6½ digit PXI DMM with up to 150 readings/s, accuracy of 90pp and basic features. |

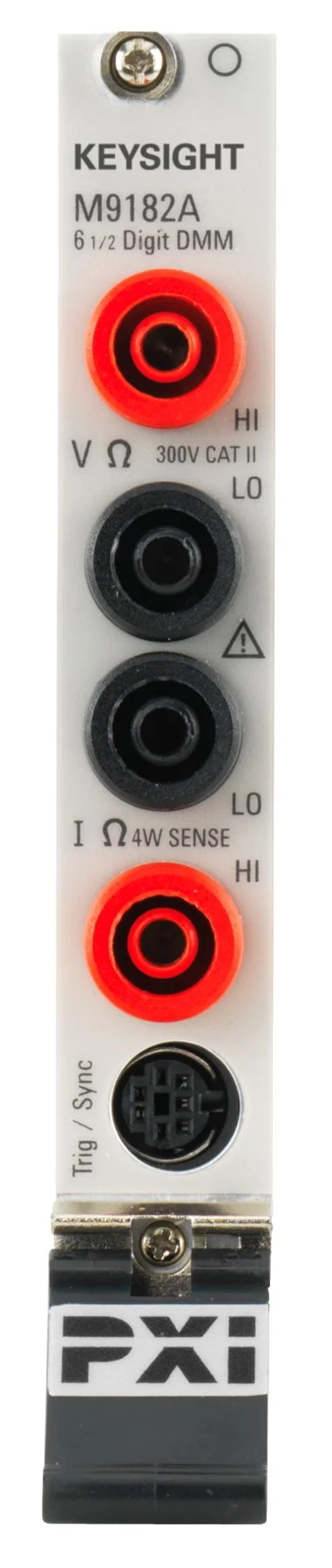

| M9182A | 6½ digit PXI DMM with up to 4,500 readings/s, high throughput, low latency, high accuracy of 40ppm and 10 built-in measurement types. |
| M9183A | 6½ digit PXI DMM with up to 15,000 readings/s, high throughput, lowest latency, high accuracy of 40ppm, various measurement capabilities, & DC source. |
| Specifications |
|
|
|
|
| M918xA Series 6.5 Digit PXI Digital Multimeters |
|
|
|
|
| Model | Digits of Resolution | Basic 1-Year DCV Accuracy | Max. Reading Speed | Measurement Functions |
| M9181A | 6½ | 0.009% | 150 readings/s | DCV and ACV
DCI and ACI
2- and 4-wire Resistance
|
| M9182A | 6½ | 0.004% | 4,500 readings/s | DCV and ACV
DCI and ACI
2- and 4-wire Resistance
Frequency / Period
Capacitance
Temperature
|
| M9183A | 6½ | 0.004% | 15,000 readings/s | DCV and ACV
DCI and ACI
2- and 4-wire Resistance
Frequency / Period
Capacitance
Temperature
Duty cycle
Pulse width
Totalizer / Event counter
Offset compensated resistance
|
