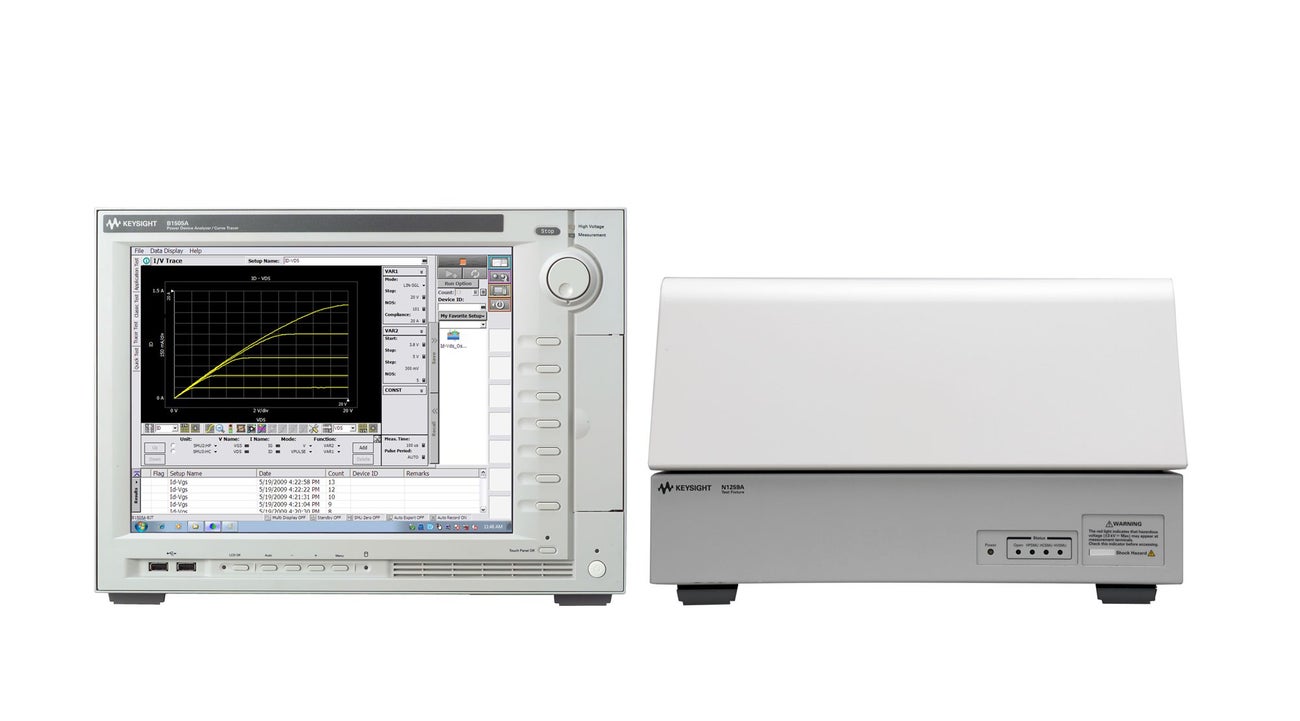

Keysight's B1505A power device analyzer delivers a single-box solution that characterizes high power devices from sub-pico amps up to 10 kV / 1500 A. The B1505A offers traditional curve tracer knob sweep control with a modern GUI. Configure this modular system to fit your most challenging measurement needs with a 10-slot power device analyzer and a variety of plug-in modules.
The B1505AP is pre-configured with the H50 3 kV / 500 A / Fixture Pack and N1265A Ultra High Current Expander
Key Features:
- Analyze data without an external PC using the intuitive 15-inch touch screen interface
- Enjoy an all-in-one device characterization analyzer supporting IV, CV, pulse/dynamic IV, and more
- Capture ultra-fast transient phenomena not possible with other conventional test instruments
- Switch between CV and IV measurements without re-cabling
- Improve measurement efficiency across a wide range of operating conditions
- Detect multi-frequency AC capacitance measurements from a range of 1 kHz to 5 MHz
- Save set-up information and measurement results automatically
- Streamline data management and analysis with Windows®-based EasyEXPERT group+ software
