Power quality issues can affect the operation of critical loads and have a negative impact on your bottom line. Think of the Fluke 435 II Power Quality and Energy Analyzer as your insurance policy. The Fluke 435 Series II Power Quality and Energy Analyzer is the world's only Power Quality analyzer that can monetize the cost of energy waste due to poor power quality.
The wide range of measurement functions and measurement methods in the Fluke 435-II make it the ideal tool for both power quality troubleshooting and discovering energy savings Whether you’re checking the performance of motors and generators, trying to discover the source of an intermittent power problem or performing an energy study the Fluke 435-II will give you the data you need to quickly get to the heart of the problem.
Wrapped in a lightweight, rugged package, the Fluke 435 II Energy Analyzer is the ideal portable power quality instrument providing advanced power quality functionality and energy analysis capabilities. If you require the same advanced functionality at a higher frequency, Fluke 437 II is the must-have power quality analyzer for 400 Hz power systems.
FLUKE 430 SERIES FEATURES: | |
Energy loss calculator | Classic active and reactive power measurements, unbalance and harmonic power, are quantified to pinpoint true system energy losses in dollars (other local currencies available). |
Power inverter efficiency | Simultaneously measure AC output power and DC input power for power electronics systems using optional DC clamp. |
PowerWave data capture | 435 and 437 Series II analyzers capture fast RMS data, show half-cycle and waveforms to characterize electrical system dynamics (generator start-ups, UPS switching etc.). |
Waveform capture | 435 and 437 Series II models capture 50/60 cycles (50/60Hz) of each event that is detected in all modes, without set-up. |
Automatic Transient Mode | 435 and 437 Series II analyzers capture 200 kHz waveform data on all phases simultaneously up to 6 kV. |
Fully Class-A compliant | 435 and 437 Series II analyzers conduct tests according to the stringent international IEC 61000-4-30 Class-A standard. |
Mains signaling | 435 and 437 Series II analyzers measure interference from ripple control signals at specific frequencies. |
400 Hz measurement | 437 Series II analyzer captures power quality measurements for avionic and military power systems. |
Troubleshoot | Analyze the trends using the cursors and zoom tools. |
MODEL | FLUKE 434-II | FLUKE 435-II | FLUKE 437-II |
Standards compliance | IEC 61000-4-30 Class S | IEC 61000-4-30 Class A | IEC 61000-4-30 Class A |
Volt Amp Hz | • | • | • |
Dips and swells | • | • | • |
Harmonics | • | • | • |
Power and energy | • | • | • |
Energy loss calculator | • | • | • |
Unbalance | • | • | • |
Monitor | • | • | • |
Inrush | • | • | • |
Event waveform capture | • | • | |
Flicker | • | • | |
Transients | • | • | |
Mains signaling | • | • | |
Power wave | • | • | |
Power inverter efficiency | • | • | • |
400 Hz | • | ||
C1740 Soft Case | • | • | |
C437-II Hard Case with rollers | • | ||
SD card (Max 32 GB) | 8 GB | 8 GB | 8 GB |

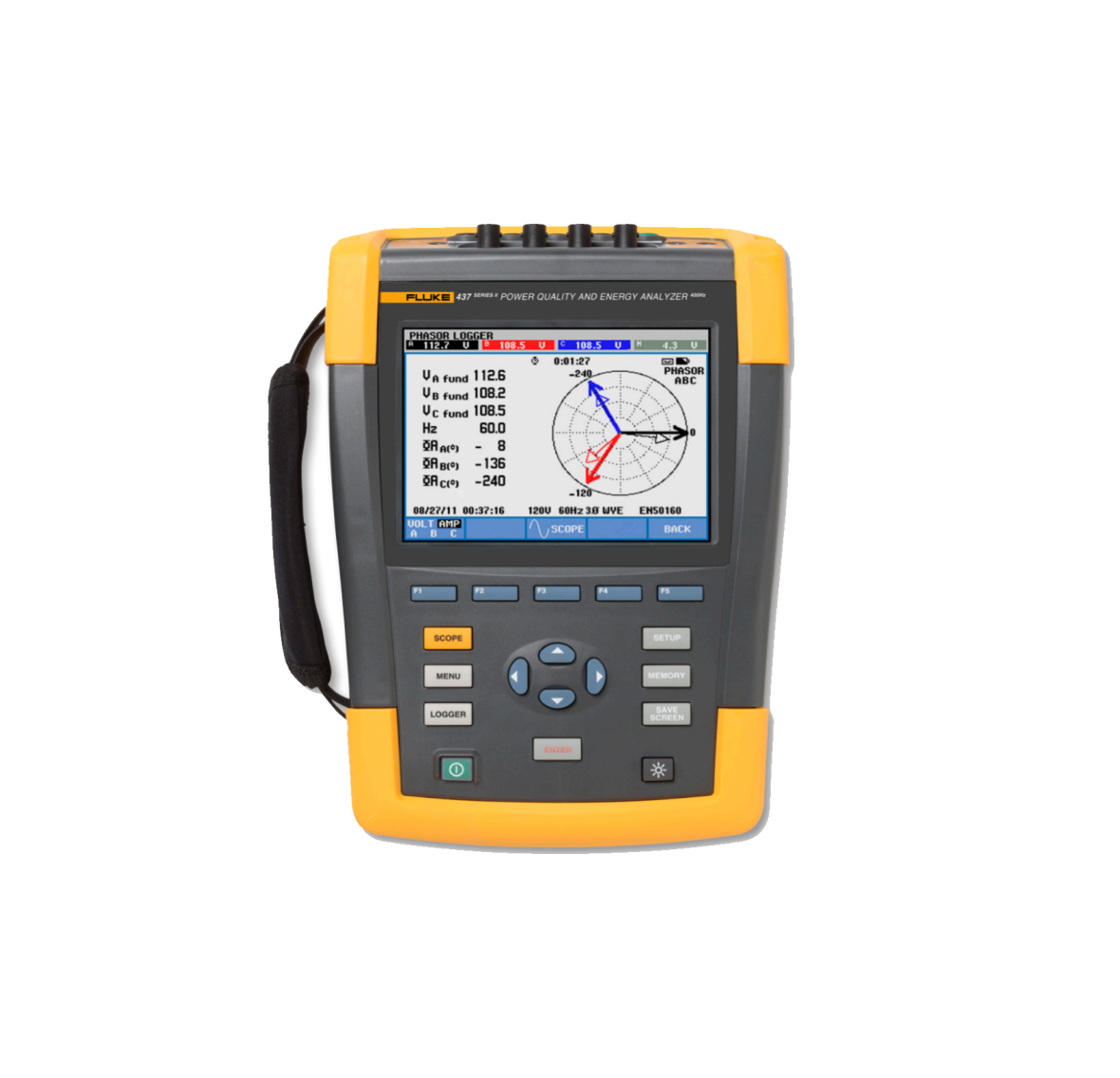

FLUKE-437-II INCLUDES:: |
BC430 Power Adapter |
International Plug Adapter Set |
BP290 (Single Capacity Li-ion Battery) 28 Wh (7 hours or more) |
TLS430 Test Lead and Alligator Clip Set |
WC100 Color Coding Clips and Regional Decals |
i430flex-TF, 24 inch (61 cm) Length, 4 Clamps |
8GB SD card |
PowerLog on CD (includes operator manuals in PDF format) |
USB Cable A - Mini B |
Soft Carrying Bag |
