快速報價: Tektronix AWG70002A

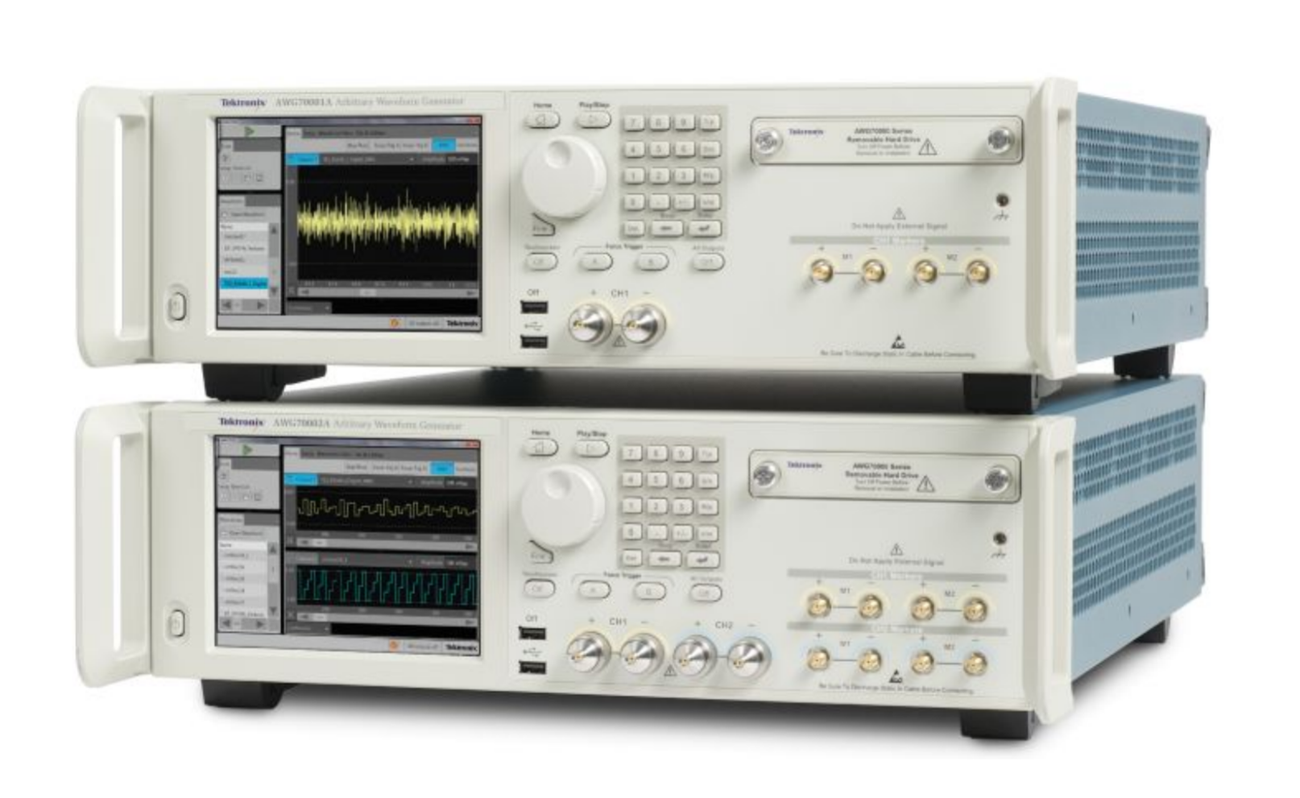

Tektronix AWG70002A
Arbitrary Waveform Generator: 2 Channel, 2G Samples Record Length, 10 bit
型號
AWG70002A產品類別
Digital Design製造商
Tektronix配置型號包含以下特性:
Digital DesignHigh-Speed ARBS250 GS/s配置
技术指标
產品總覽
資源
讓我們為您提供準確的配置
技术指标
在選擇附件時標明其特性， 有關附件詳細資訊請參見“配置”選項。
| 特性 | 參數 |
|---|---|
| Channel/Port Count | 2 |
| Maximum Sample/Data Rate | 50 GS/s |
產品總覽
The industry-leading AWG70000A Series arbitrary waveform generator (AWG) provides you with unparalleled performance at the cutting edge for sample rate, signal fidelity, and waveform memory. In order to engineer the world's most complex data communications systems, the ability to create ideal, distorted and "real life" signals is essential.
The AWG70000A Series of AWGs delivers this, giving you the industry's best signal stimulus solution for ever-increasing measurement challenges. With up to 50 GS/s and 10-bit vertical resolution, it offers easy generation of very complex signals and complete control over signal characteristics.
| Key Features |
| Sample rates up to 50 GS/s |
| -80 dBc spurious free dynamic range |
| 10 bits vertical resolution |
| 16 GSample waveform memory |
Complete solution for wideband RF signal generation in a single box - Direct generation of wideband signals with carriers up to 20 GHz, removing the need for external RF conversion |
Simulate real-world analog effects on high speed digital data streams - Model signal impairments up to speeds of 12.5 GBs |
Generate high precision RF signals - Spurious Free Dynamic Range performance better than -80 dBc |
Create high speed baseband signals for optical transmission with the vertical resolution to handle higher order complex modulation - 10 bits of vertical resolution at a sample rate of 50 GS/s |
Create long waveforms scenarios without building complex sequences - Up to 16 GSamples of Waveform Memory plays 320 ms of data at 50 GS/s |
| Synchronize multiple units (manually or with the AWG Synchronization Hub) to achieve a multi-channel high speed AWG system |
Fully operational without external PC - Built-in display and buttons make it possible to quickly select, edit and play waveforms directly from the front panel of the AWG |
Simulate real-world environments by playing back captured signals - Waveforms captured with Oscilloscopes or Real-Time Spectrum Analyzers can be played back, edited or re-sampled on the AWG |
Smooth transition from simulation to the real-world testing environment - Waveform vectors imported from third-party tools such as MATLAB |
| Applications |
Wideband RF/MW for communications and defense electronics - Output wideband RF signals up to 20 GHz |
Validation and compliance testing of high speed silicon and communications devices - Easily stress test receivers with a wide array of signal impairments |
Coherent optical research - Generation of high Baud rate baseband signals with higher order, complex modulation |
Leading edge research in electronics, physics & chemistry - High speed, low jitter signal source generates uniquely specified analog signals, fast pulses, data streams and clocks |
| Specifications | ||
AWG70000A Series Arbitrary Waveform Generators | ||
| Model Overview | ||
| Model | AWG70001A | AWG70002A |
| Digital to Analog Converter | Sample rate (nominal): 1.5 kS/s - 50 GS/s Resolution (nominal): 10 bit (no markers selected) 9 bit (one marker selected) 8 bit (two markers selected) | Sample rate (nominal): 1.5 kS/s - 25 GS/s Resolution (nominal): 10 bit (no markers selected) 9 bit (one marker selected) 8 bit (two markers selected) |
| Sin(x)/x roll-off | Sin(x)/x (-3dB): 11.1 GHz | Sin(x)/x (-3dB): 11.1 GHz |
| Specifications | |
AWG70000A Series Arbitrary Waveform Generators | |
| Model Overview | |
| Model | Description |
| AWG70001A | 10 bit, 2 GSamples record length, 1-channel arbitrary waveform generator. Option 150: 1.5 kS/s to 50 GS/s |
| AWG70002A | 10 bit, 2 GSamples record length, 2-channel arbitrary waveform generator. Option 225: 1.5 kS/s to 25 GS/s |
資源
文檔資料
Tektronix AWG70000A Series Arbitrary Waveform Generators Data Sheet
