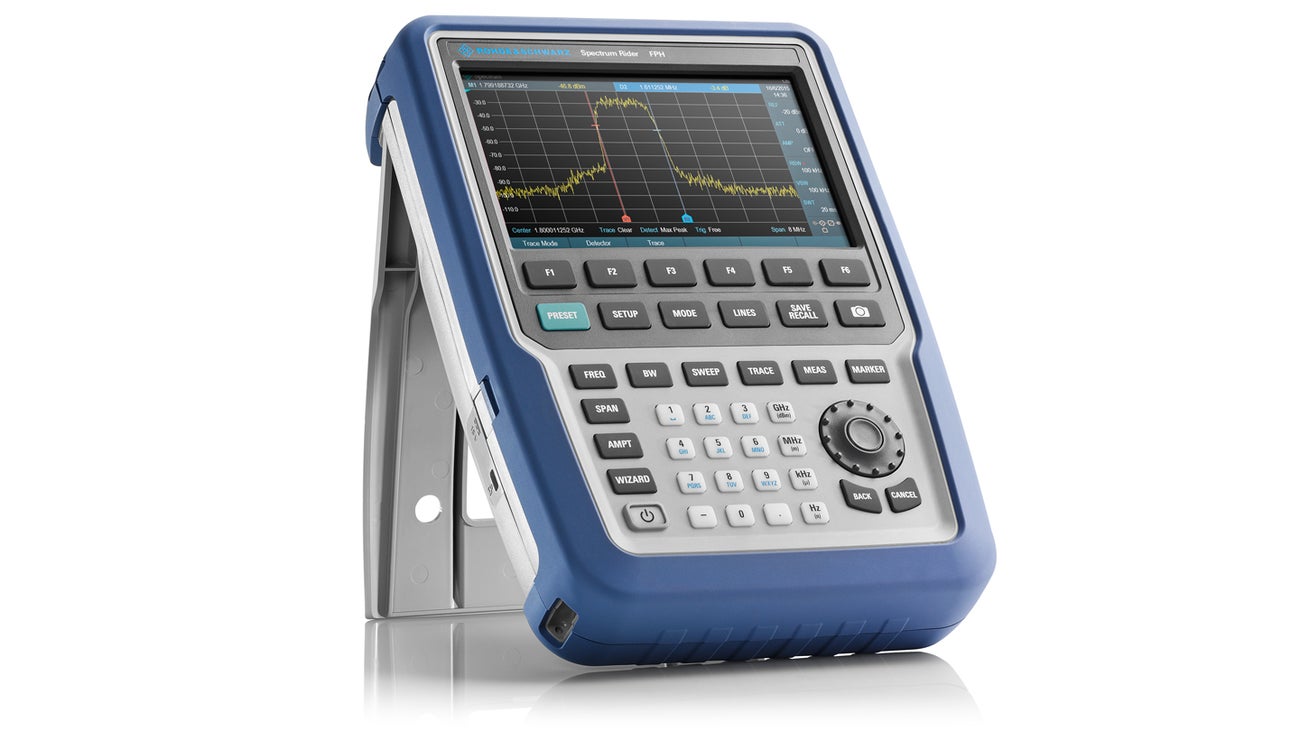

Rohde & Schwarz FPH (1321.1111.02)

Flexiblity

(Extendable Frequency Range)

The Frequency range of every Spectrum Rider FPH model can be extended as follows:

Spectrum Rider FPH .02 model: Upgrade from 2 GHz to 3/4 GHz

Spectrum Rider FPH .06 model: Upgrade from 6 GHz to 8 GHz

Spectrum Rider FPH .13/.23 (with tracking generator) model: Upgrade from 13.6 GHz to 20 GHz

Spectrum Rider FPH .26/ .36 (with tracking generator) model: Upgrade from 26.5 GHz to 31 GHz

Performance

(Excellent displayed average noise level (DANL))

The Spectrum Rider has a DANL as low as -146dBm (typ.).

A low DANL signifies the analyzer's ability to capture weak signals.

Turn on the preamplifier (option) to further increase the sensitivity to -162dBm (20MHz to 3 GHz).

Preamplifier options:

Spectrum Rider FPH .02 model: FPH-B22

Spectrum Rider FPH .06 model: FPH-B23

Spectrum Rider FPH .13/.23 model: FPH-B24

Spectrum Rider FPH .26/ .36 model: FPH-B25

Spectrum Rider FPH .44/ .54 model: FPH-B26

Portability

(Weighs only from 2.5kg (model dependent))

The Spectrum Rider FPH has an ergonomic design, a small form factor and is lightweight.

It comes with a convenient side strap to support your hand during the short measurement period.

The holster (HA-Z322) comes with a harness that is carefully designed to equally distribute weight around the body for hands-free operation.

Durability

(a single charge lasts for a day's work)

The Spectrum Rider FPH battery can cover a full day of field work.

When turned on the battery takes 4 hours to charge.

It charges faster when the device is turned off or with an external charger, where the charging time is only 3.5 hours.

Spectrum Rider FPH .02 model: 8 hours for full-charge

Spectrum Rider FPH .06 model: 7 hours for full-charge

Spectrum Rider FPH .13/.23 model: 6 hours for full-charge

Spectrum Rider FPH .26/ .36 model: 4.5 hours for full-charge

Spectrum Rider FPH .44/ .54 model: 4.5 hours for full-charge

Usability

(Touchscreen gestures, non-reflective screen and backlit keypad)

To enhance user experience, the user interface operates like a smartphone.

The touchscreen is more than just the menu bar; users can move the spectrum, zoom in and out of the span, add/delete markers, etc.

Spectrum Rider FPH

Handheld Spectrum Analyzer

2 GHz

(3/4 GHz opt)

–125 dBc (1 Hz)

(f = 500 MHz, 1 MHz offset)

6 GHz

(8 GHz opt)

–125 dBc (1 Hz)

(f = 500 MHz, 1 MHz offset)

13.6 GHz

(20 GHz opt)

–125 dBc (1 Hz)

(f = 500 MHz, 1 MHz offset)

26.5 GHz

(31 GHz opt)

–125 dBc (1 Hz)

(f = 500 MHz, 1 MHz offset)

13.6 GHz

(20 GHz opt)

–120 dBc (1 Hz)

(f = 500 MHz, 1 MHz offset)

26.5 GHz

(31 GHz opt)

–120 dBc (1 Hz)

(f = 500 MHz, 1 MHz offset)

–120 dBc (1 Hz)

(f = 500 MHz, 1 MHz offset)

–120 dBc (1 Hz)

(f = 500 MHz, 1 MHz offset)
