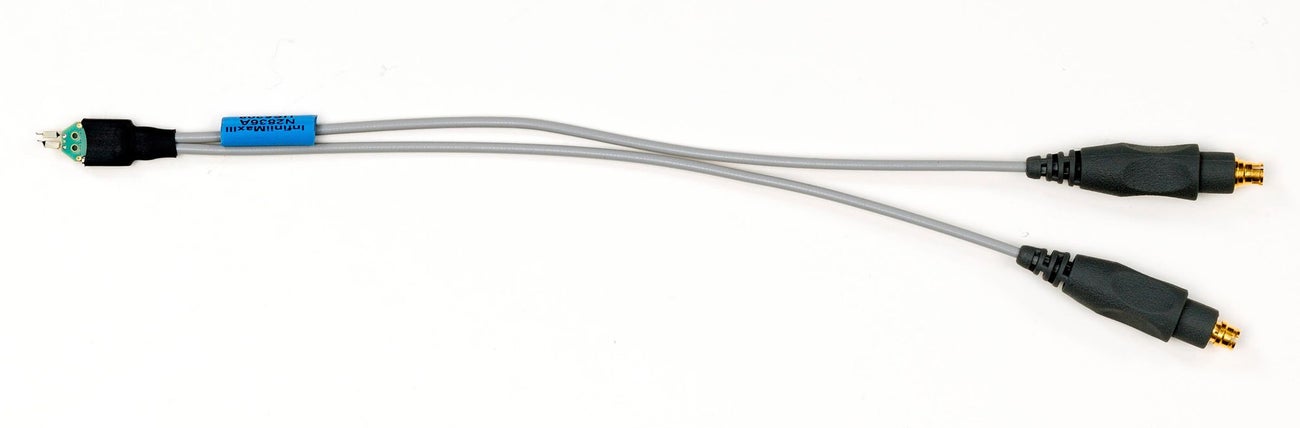

Keysight Technologies N2836A

InfiniiMax III Solder-in Probe Head; 26 GHz

Model

N2836A

Manufacturer

Keysight Technologies

Configured models contain the following attributes:

Oscilloscope Probes20GHz <= 50GHz

Configurations

Key Specs

Product Overview

Resources

Let us help you with your exact configuration

Please use 'Get Quick Quote' and we’ll contact you and quote for your exact need.

You can also get in touch, if you prefer, and our experts will be able to guide you with the right application and procurement solution for this product.

Attribute	Value
High Frequency (range)	20GHz <= 50GHz

Product Overview

The N2836A InfiniiMax III 26 GHz solder-in head is an economical semi-permanent solder-in connection that provides up to 26 GHz of system bandwidth.

Key Features

26 GHz bandwidth (with InfiniiMax III N2803A amp)

Cdiff = 108 fF, Cse = 140 fF

100kΩ input Rdiff (@ DC), 1kΩ input Rdiff (@ >10kHz)

6:1 attenuation ratio, normal sensitivity

Variable spacing from 5 mil – 250 mil (or 0.127 mm – 6.35 mm)

Benefits

Compatible with InfiniiMax III probe amp

The 130 ohm axial resistors at the tip of the N2836A ZIF tip can be replaced when they are worn out or damaged.

The replacement axial resistor kit for the N2836A and N2838A is N2836-68701. Each resistor kit contains 10 resistors.
