Keysight Technologies (formerly Agilent) N9950A | 300kHz-32GHz FieldFox Handheld Microwave Combo Analyzer | Electro Rent

Optie-ID	Beschrijving
N1972A-710	AC / DC adapter for US / Canada
N1972A-711	AC / DC adapter for Europe / China
N1972A-712	AC / DC adapter for non US / Canada / Europe / China
N9950A-0B0	Download the product manual from the Keysight website
N9950A-1A7	Calibration + Uncertainties + Guardbanding
N9950A-010	Vector network analyzer time domain
N9950A-030	Remote control capability
N9950A-208	USB power sensor measurements versus frequency
N9950A-209	Extended range transmission analysis (ERTA)
N9950A-210	Vector network analyzer transmission/reflection
N9950A-211	Vector network analyzer full 2-port S-parameters
N9950A-212	1-port mixed-mode S-parameters
N9950A-215	TDR cable measurements
N9950A-233	Spectrum analyzer
N9950A-235	Pre-amplifier
N9950A-236	Interference analyzer and spectrogram
N9950A-238	Spectrum analyzer time gating
N9950A-302	USB power sensor support
N9950A-307	GPS receiver
N9950A-308	Vector voltmeter
N9950A-309	DC bias variable-voltage source
N9950A-310	Built-in power meter
N9950A-312	Channel scanner
N9950A-330	Pulse measurements
N9950A-350	Real-time spectrum analyzer
N9950A-351	I/Q analyzer
N9950A-352	Indoor and outdoor mapping
N9950A-355	Analog demodulation
N9950A-356	Noise figure measurements
N9950A-358	EMF measurements
N9950A-360	Phased array antenna control
N9950A-370	Over the air LTE FDD measurements
N9950A-377	Over the air 5G measurements
N9950A-A6J	ANSI Z540-1-1994 Calibration
N9950A-ABA	Printed User's Guide in English
N9950A-DST	Demo for indirect channel partners, fixed 9-month license
N9950A-FWD	Included firmware support offset
N9950A-FWS	Included firmware support deferral
R-50C-011-3	Calibration Assurance Plan - Return to Keysight - 3 years
R-50C-011-5	Calibration Assurance Plan - Return to Keysight - 5 years
R-50C-011-7	Calibration Assurance Plan - Return to Keysight - 7 years
R-50C-011-10	Calibration Assurance Plan - Return to Keysight - 10 years
R-50C-016-3	Keysight Calibration + Uncertainties + Guardbanding - 3 years
R-50C-016-5	Keysight Calibration + Uncertainties + Guardbanding - 5 years
R-51B-001-5Z	Warranty Assurance Plan - Return to Keysight - 5 years
R-51B-001-7Z	Warranty Assurance Plan - Return to Keysight - 7 years
R-51B-001-10Z	Warranty Assurance Plan - Return to Keysight - 10 years

Kenmerk	Waarde
High Frequency (range)	20GHz <= 50GHz
Low Frequency (range)	100kHz <= 1MHz
Connector Type	2.4mm-Male (Jack)
Form Factor	Handheld

Productoverzicht

FieldFox is equipped to handle routine maintenance, in-depth troubleshooting and anything in between. FieldFox delivers Keysight-quality measurements – wherever you need to go. Add FieldFox to your kit, and carry precision with you. The microwave combination analyzer's base function is a cable and antenna analyzer and it can be configured to include a spectrum and network analyzer.

FieldFox can be ordered with additional capabilities: power meter, independent signal generator, vector voltmeter, interference analyzer, variable DC source, built-in GPS receiver, and remote control using an iPad or iPhone. The future is Ka band. Now, there’s a rugged, dependable handheld designed to deliver precise, lab-grade measurements up to 50 GHz. At only 7.1 lbs., it’s an all-in-one cable and antenna tester (CAT) + vector network analyzer (VNA) + spectrum analyzer and more.

Which means, now you get comprehensive system performance insight at higher frequencies. Plus with easy upgrades and multiple configurations, you’ll be ready to go where no handheld has gone before — today and beyond.

Key Features

32 GHz max frequency

Carry industry’s first 50 GHz handheld µW analyzer: standard model includes cable and antenna analyzer

Expand capabilities with optional VNA, spectrum analyzer, built-in power meter, vector voltmeter, and more

Save time by measuring DTF and TDR in a single sweep

Simultaneously measure all four S-parameters

Make accurate SA measurements (± 0.5 dB) without needing warm-up

Easily measure average and pulse power with a USB sensor

Lightest all-in-one analyzer at only 7.1 lb. (3.2 kg)Full-band tracking generator

Independent signal source

Interference analyzer

Built-in power meter

Built-in GPS receiver

Built-in variable DC voltage source

Pulse measurements

Specifications

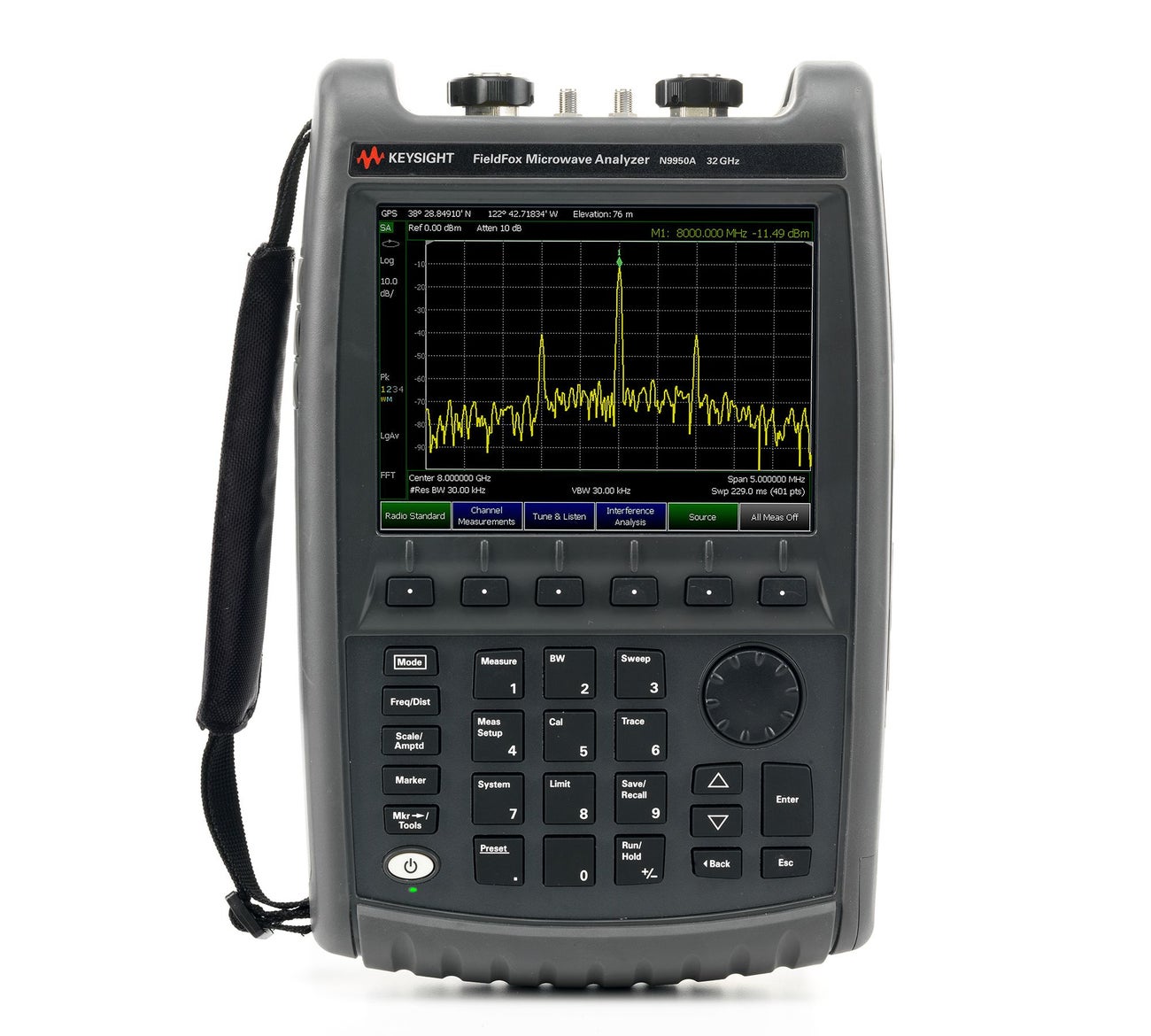

N9950A FieldFox Handheld Microwave Analyzer
Feature	Parameters
Maximum Frequency	32 GHz
Minimum Frequency	300 kHz
SA Start Frequency	5 kHz
System Dynamic Range	110 dB
Best Speed at 1001 Point, 1 Sweep	478 us/pt
Output Power	4 dBm
Trace Noise	n/a
Number of Built-In Ports	2 ports
Instrument Type	Combination Analyzer
Cable and Antenna Analyzer	Yes - Standard
Spectrum Analyzer	Yes - Optional
Vector Network Analyzer	Yes - Optional
Additional CAT/VNA Based Features	Vector Voltmeter Mixed-Mode S-Parameters DTF/TDR Cable Measurements
Additional SA Based Features	Built-In Power Meter Extended Range Transmission Analysis (ERTA) Real-Time Spectrum Analysis Noise Figure Measurements Over-The-Air Measurements
System Features	Built-In DC Source GPS Receiver - Internal Only Remote Control Capability
Power Measurement Using USB Sensor	CW or Swept-Frequency Frequency-Offset RF Pulse Test with Peak Sensor
Standard Attenuator Range	n/a
Standard Attenuator Step	n/a
DANL @1 GHz	-159 dBm
Maximum Analysis Bandwidth	n/a
Phase Noise @1 GHz (1 MHz offset)	n/a
Phase Noise @1 GHz (10 kHz offset)	-111 dBc/Hz
Phase Noise @1 GHz (30 kHz offset)	n/a
Spur Free Dynamic Range	n/a
TOI @1 GHz (3rd Order Intercept)	n/a
Applications Available	Yes
Maximum Real-Time Bandwidth	n/a
Overall Amplitude Accuracy	n/a
Bandwidth Options	n/a
Performance Level	n/a
Applications-Cellular	89600 VSA Software Over-The-Air LTE FDD and 5GTF
Applications-Digital Video	n/a
Applications-General Purpose	AM/FM Tune and Listen Field Strength Measurement SCPI Code Compatibility Spectrogram Stimulus Response
Applications-Wireless Connectivity	n/a
Handheld / Modular	Yes

Specifications
FieldFox Handheld Microwave Vector Network Analyzer
N991xA, N992xA Frequency Overview
Model	Frequency Range
N9913A	30 kHz to 4 GHz
N9914A	30 kHz to 6.5 GHz
N9915A/N9925A	30 kHz to 9 GHz
N9916A/N9926A	30 kHz to 14 GHz
N9917A/N9927A	30 kHz to 18 GHz
N9918A/N9928A	30 kHz to 26.5 GHz
N995xA Frequency Overview
N9950A	300 kHz to 32 GHz
N9951A	300 kHz to 44 GHz
N9952A	300 kHz to 50 GHz

Specifications
FieldFox Handheld Analyzers Selection Guide
Maximum Frequency	Combination Models (CAT + VNA + SA)	Combination Models (CAT + VNA + SA)	VNA Models	VNA Models	SA Models
4 GHz	N9912A-104	N9913A	N9923A-104
6/6.5 GHz	N9912A-106 (2)	N9914A (3)	N9923A-106 (2)
9 GHz		N9915A		N9925A	N9935A
14 GHz		N9916A		N9926A	N9936A
18 GHz		N9917A		N9927A	N9937A
26.5 GHz		N9918A		N9928A	N9938A
32 GHz		N9950A			N9960A
44 GHz		N9951A			N9961A
50 GHz		N9952A			N9962A

Notes:

(1). Also referred to as cable and antenna analyzer

(2). Maximum frequency is 6 GHz.

(3). Maximum frequency is 6.5 GHz

Specifications
FieldFox RF and Microwave Model Overviews
Ordering Information
Model	Description	CAT and VNA Frequency	SA Frequency *	Test Port Connectors
N9913A	4 GHz FieldFox RF analyzer	30 kHz to 4 GHz	100 kHz to 4 GHz	Type-N (f)
N9914A	6.5 GHz FieldFox RF analyzer	30 kHz to 6.5 GHz	100 kHz to 6.5 GHz	Type-N (f)
N9915A	9 GHz FieldFox microwave analyzer	30 kHz to 9 GHz	100 kHz to 9 GHz	Type-N (f)
N9916A	14 GHz FieldFox microwave analyzer	30 kHz to 14 GHz	100 kHz to 14 GHz	Type-N (f)
N9917A	18 GHz FieldFox microwave analyzer	30 kHz to 18 GHz	100 kHz to 18 GHz	Type-N (f)
N9918A	26.5 GHz FieldFox microwave analyzer	30 kHz to 26.5 GHz	100 kHz to 26.5 GHz	3.5 mm (m)
N9950A	32 GHz FieldFox microwave analyzer	300 kHz to 32 GHz	9 kHz to 32 GHz	NMD 2.4 mm (m)
N9951A	44 GHz FieldFox microwave analyzer	300 kHz to 44 GHz	9 kHz to 44 GHz	NMD 2.4 mm (m)
N9952A	50 GHz FieldFox microwave analyzer	300 kHz to 50 GHz	9 kHz to 50 GHz	NMD 2.4 mm (m)
