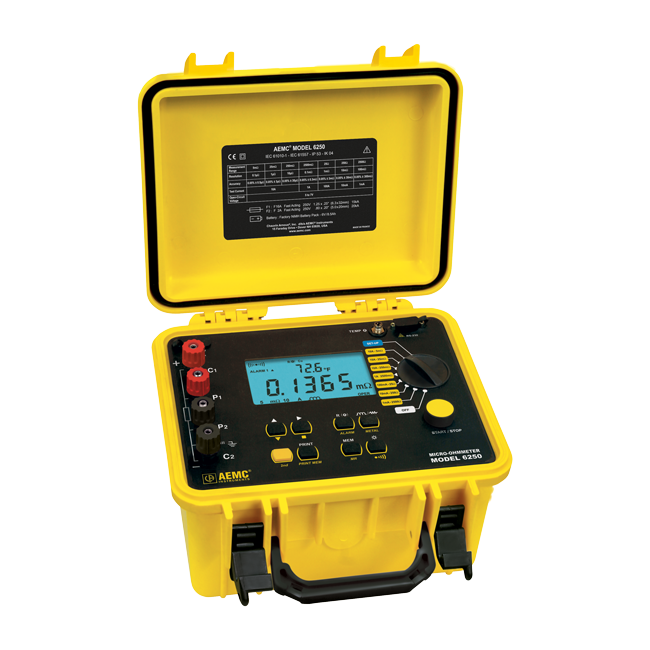

The 10A Micro-Ohmmeter Model 6250 is a rugged, low resistance tester designed for both plant maintenance and field use. Utilizing a four-lead Kelvin method, the Model 6250 is the most accurate Micro-Ohmmeter available, with results within 0.05%.
The Model 6250 is uniquely designed to conduct tests on both resistive and inductive material, with operator selection directly from the front panel. Three test modes are available; resistive (instantaneous test), inductive (continuous test), and auto (repetitive test). Up to 1500 measurements can be stored and printed directly to a printer of from a PC.
The DataView® Software included allows you to configure the instrument, store data and print reports.
| Key Features |
| Measure from 1µΩ (0.1µΩ resolution) to 2500.0Ω |
| Test Current selection of 1mA, 10mA, 100mA, 1A and 10A |
| RTD temperature probe to check tested sample (optional) |
| Selectable metal types |
| Automatic and manual temperature correction |
| Two progammable alarm set points |
| Stores up to 1500 test results |
| Selectable inductive or resistive test modes |
| Automatic multiple test mode (multiple tests without pressing the test button) |
| Large multi-line electroluminescent display |
| Local or remote test setup and control |
| Internal rechargeable batteries conduct up to 5000 - 10A tests |
| Rugged, double insulated waterproof case |
| Includes RS-232 to USB 2.0 cable and AC line cord |
| Includes free DataView software for data storage, real-time display, analysis and report generation |
| Specifications |
|
| Model 6250 |
|
| Features | Parameters |
| Range | 5.0000mΩ |
| Accuracy | ±0.15% of Reading +1.0µΩ |
| Resolution | 0.1µΩ |
| Test Current | 10A |
| Measurement Mode | Selectable: Inductive (continuous test)
Resistive (instantaneous test) or Auto (multiple tests)
|
Metal Type
Alpha
| Selectable: copper, aluminum or other metal
Programmable from 000.00 to 99.99
|
| Alarms | Two - programmable set points from 0.0 to 2500.0Ω |
| Memory | Stores up to 1500 test results;
Data in memory can be reviewed on the instrument display, on a PC or via direct printout
|
| Power Source | Rechargeable 6V, 8.5Ah NiMH battery pack (included) |
| Battery Life | Approximately 5000 10A tests |
| Battery Charger | 120/240VAC ± 20% (45 to 400Hz) |
| Auto Power OFF | When battery voltage <5.0V |
| Overload Protection | 250Vrms |
| Dimensions (L x W x H) | 10.70 x 9.76 x 7.18”
(272 x 248 x 182mm)
|
| Weight | 8.1 lbs (3.69 kg) |
| IP Rating | IP 54 per IEC 60529 cover closed |
| Altitude Operating | 2000 m |
| Operating Temperature | 14° to 131°F (-10° to +55°C) & 10 to 80% RH |
| Storage Temperature (without battery) | -40° to 140°F (-40° to +60°C) & 10 to 90% RH |
| Safety | IEC/EN 61010-1 50V CAT III Pollution 2, CE |
| Specifications |
|
|
| Micro-ohmmeter Model 6250 |
|
|
| Model | Cat. No | Description |
| 6250 | 2129.81 | Micro-ohmmeter Model 6250 |
