Snelle Offerte: NH Research 9300-100-TP

+31 (0) 318 588 688Hebt u hulp nodig? Spreek met een van onze experts.

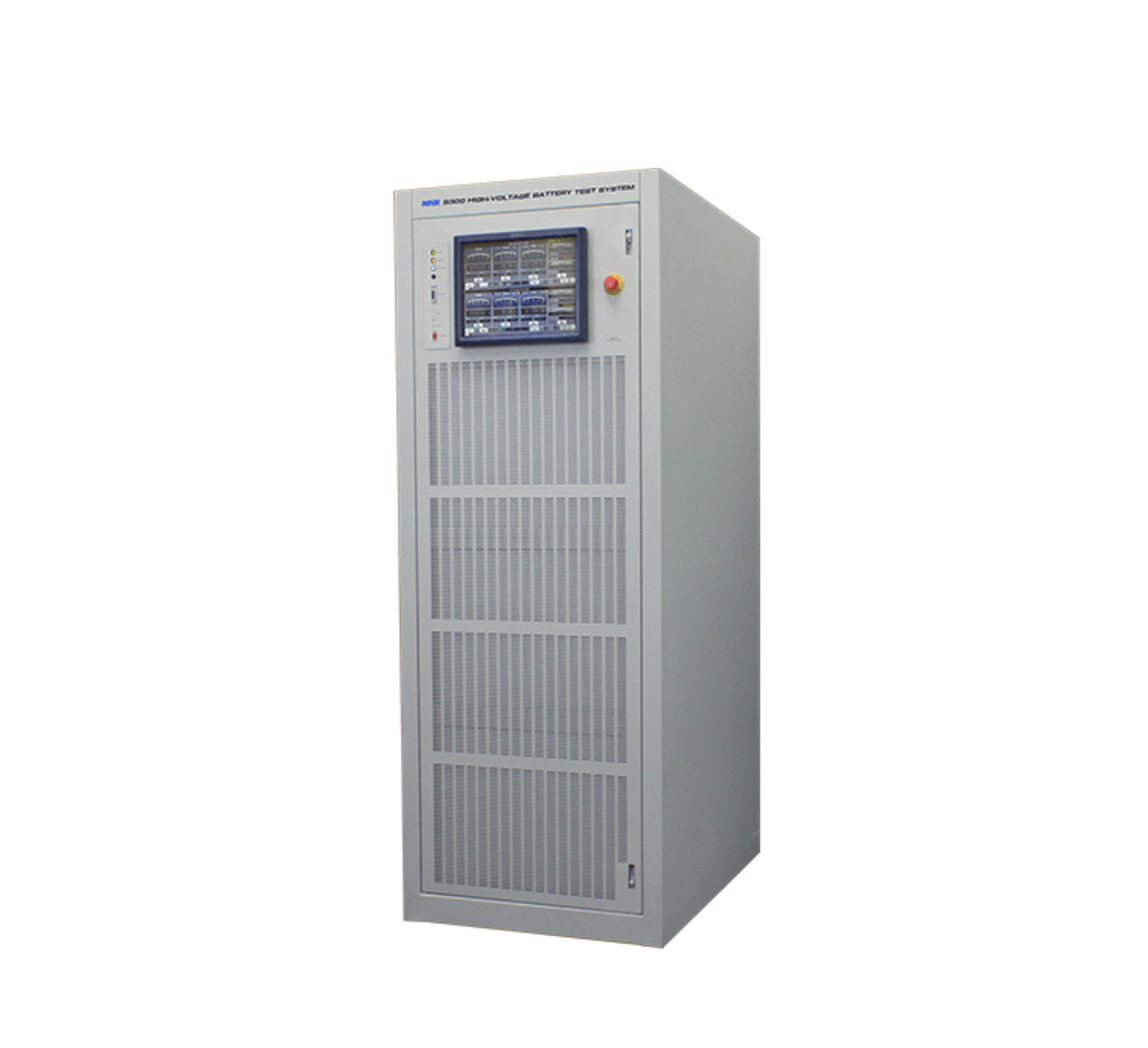

NH Research 9300-100-TP

Regenerative Battery Pack Test System- 100 kW, 1200V, 333A

Model

9300-100-TP

Productgroep

Power Supplies / Electronic Loads

Fabrikant

NH Research

Geconfigureerde modellen bevatten de volgende opties:

Power Supplies / Electronic LoadsRegenerative Power Supplies

Configuraties

Belangrijke specificaties

Productoverzicht

Hulpbronnen

Kies uw configuratie

Show:

Zoek & combineer opties, bijv. 'C4000; M400'

Beschikbare opties voor NH Research 9300-100-TP

Optie-ID	Beschrijving
380VAC	USA 380VAC/200A

Toont 1 - 2 van 2 resultaten

Regenerative Battery Pack Test System; 100 kW, 1200V, 333A

Product-ID: P-164171

Huren

Bevestigd bij offerte

Offerte

Aantal

Weken

Startdatum

Gebruikt

Beschikbaarheid wordt op de offerte vermeld

€ 76.023,00*€ 96.016,00

Financiele Oplossingen

Vraag nu om meer informatie

100kW 1200V 333A bi-directional regenerative loads in a cabinet with a display. Can be paralleled.

Product-ID: P-558314

380VAC • USA 380VAC/200A

Huren

Bevestigd bij offerte

Offerte

Aantal

Weken

Startdatum

Gebruikt

Beschikbaarheid wordt op de offerte vermeld

Inlichtingen

E-mail +31 (0) 318 588 688

Financiele Oplossingen

Vraag nu om meer informatie

Toont 1 - 2 van 2 resultaten

* Prijzen en beschikbaarheid kunnen zonder voorafgaande kennisgeving worden gewijzigd. Alle prijzen kunnen variëren als gevolg van verzendvoorwaarden, btw of omzetbelasting, invoerrechten en wisselkoersen. Producten zijn mogelijk niet op alle locaties beschikbaar. Alle vermelde besparingen zijn gebaseerd op de volledige catalogusprijs van nieuwe instrumenten; werkelijke besparingen kunnen variëren op basis van optie (s), configuratie, wisselkoersen en andere factoren. Garantie kan variëren per categorie of specifiek beschikbaar product. Alle voorwaarden worden bevestigd door volledige schriftelijke offerte.

Productoverzicht

NHR’s 9300 high voltage battery test system and battery emulator includes power ranges from 100kW up to 2.4MW. This innovative battery test system addresses the higher voltage and higher power battery test requirements for electric vehicles, renewable energy storage, solar PV inverters, aerospace and other critical power industries. NHR’s 9300 battery pack test system is highly configurable and has 100kW building blocks with dual voltage ranges of 600V or 1,200V and current up to 333A. It can parallel up to 24 building blocks to get 2.4MW of power and up to 8,000A of current. Key differentiating features from other battery pack test equipment on the market include high accuracy, speed and modularity as well as new battery emulation and regenerative technologies, designed for high-voltage battery pack testing, battery life-cycle testing, charge/discharge cycling, battery charger testing, and more.

Key Features:

Wide Operating Envelope at 100kW per cabinet
Bidirectional DC Source, scalable to 2.4MW/8000A
Regenerative, greater than 90% efficiency of discharge power returned to AC mains
Built-in digital measurements with charting & scope displays
Current, Voltage & Mode transitions in <2 mSec
Battery Emulation Mode
Touch Panel, LabVIEW® & IVI Drivers
Enerchron® Test Executive

The High-Voltage Battery Test System (9300 Series) is a fast-acting, fully programmable, and bi-directional DC source (charge) that provides reversible current flow in order to act as a regenerative DC load (discharge). Both modes support any combination of constant power, constant voltage, and constant-current regulation limits. Battery test applications include battery modules/packs, fuel cells, ultra-capacitors, and other energy storage devices used in the automotive/electric vehicles, renewable energy, aviation, heavy industrial, marine, grid storage, university research, and standards certification laboratory markets.

NHR’s battery test equipment has become popular for its versatility and multi-purpose functions. For example, in the Electric Vehicle industry, the 9200/9300 series battery pack testers can be used for testing of EV Powertrain, drive cycle simulation, EV battery module and battery pack, battery life-cycle, EVSE, on-board chargers, EV inverters, DC chargers and more!
