Quick quote: EXFO FTB-880V2-SONET-SDH
EXFO FTB-880V2-SONET-SDH
FTB-880V2 Netblazer Multi-Service Module
Model
FTB-880V2-SONET-SDHProduct Family
Telecommunication Transmission TestersManufacturer
EXFOConfigured models contain the following attributes:
Telecommunication Transmission TestersTransmission Tester Portable up-to 10GBitHandheldModularConfigurations
Key Specs
Product Overview
Resources
Let us help you with your exact configuration
Please use 'Get Quick Quote' and we’ll contact you and quote for your exact need.
You can also get in touch, if you prefer, and our experts will be able to guide you with the right application and procurement solution for this product.
Key Specs
Indicates attributes available at part level. See Configurations tab for part detail.
| Attribute | Value |
|---|---|
| Form Factor | Handheld |
| Form Factor | Modular |
Product Overview
The ongoing transition toward a converged network infrastructure for legacy DSn/PDH, ISDN, SONET/SDH, OTN and Fibre Channel, requires a test tool that can cover a wide range of interfaces and rates—without sacrificing portability, speed or cost.

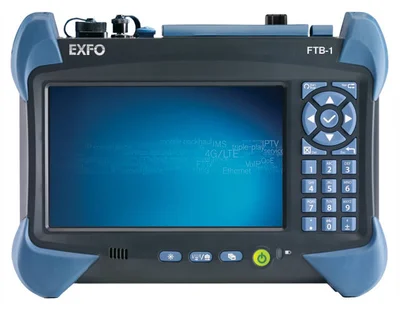

Leveraging the powerful, intelligent FTB-1 Pro handheld platform, the NetBlazer V2 Series streamlines processes and empowers field technicians to test and validate DSn/PDH, ISDN, SONET/SDH, OTN, Fibre Channel, common public radio interface (CPRI) and packet-based high-speed Ethernet services efficiently.
The FTB-880v2/870v2 NetBlazer are the field technician’s go-to solution covering all things 10G. Fully loaded Ethernet testing includes iSAM and RFC 6349 with GigE and 10 GigE dual ports, as well as OTN, SONET/SDH, DSn/PDH, ISDN PRI, fiber-to-the-antenna (FTTA), Fibre Channel and packet synchronization.
| Key Features |
| Comprehensive testing for DSn/PDH, ISDN, SONET/SDH, OTN, Fibre Channel (1x-16x), CPRI and Ethernet interfaces up to 100 |
| iSAM intelligent service activation methodology, based on the ITU-T Y.1564 and RFC 6349 standards, simplifies. |
| RFC-6349 testing: 10M-100G multisession TCP testing with bidirectional results |
| Pluggable CFP4 and QSFP28 optics to facilitate the testing of next-generation networks, and QSFP+ interface for 40GigE |
| Dual-port or quad-port testing up to 10G WAN and LAN, allows technicians to run up to four simultaneous tests |
| FTTA/C-RAN validation from 1.2 Gbit/s to 9.8 Gbit/s via layer-2 CPRI protocol and unframed BER testing |
| Specifications | |
| NetBlazer V2 Series Model Overview | |
| Model | Description |
FTB-890 NetBlazer (tests up to 100G) | The FTB-890 NetBlazer is the entry level 10M to 100G tester that covers a wide range of technologies including OTN, SONET/SDH, CPRI and Fibre Channel. |
FTB-890NGE NetBlazer (tests up to 100G) | The FTB-890NGE NetBlazer is the most comprehensive all-in-one tester, including testing for legacy networks at 64K up to next-generation networks at speeds of 100G. |
FTB-880v2 NetBlazer (tests up to 10G) | The FTB-880v2/870v2 NetBlazer are the field technician’s go-to solution covering all things 10G. Fully loaded Ethernet testing includes; iSAM and RFC 6349 with GigE and 10 GigE dual ports, as well as OTN, SONET/SDH, DSn/PDH, ISDN PRI, fiber-to-the-antenna (FTTA), Fibre Channel and packet synchronization. |
FTB-880Q NetBlazer (tests up to 10G) | Double up everything the FTB-880v2 has to offer and you get the NetBlazer FTB-880Q. The FTB-880Q is designed for maximum field technician efficiency through accelerated processes running up to four simultaneous tests, as well as completely independent tests with zero restrictions. The FTB-880Q/870Q are the only handheld testers offering quad-port GigE and quad-port 10 GigE. |
| Specifications | |
| Applications and Modules | |
Module: FTB-720 LAN/WAN Access OTDR | Access Network Testing: On the strength of best-in-class specifications and four test wavelengths. The FTB-720 LAN/WAN Access OTDR is optimized for fiber-optic contractors and private network operators, enabling them to fully test and qualify any type of fiber network. |
Module: FTB-730 PON FTTx/MDU OTDR | FTTH Testing: With a dynamic range of up to 39 dB and enabling power meter and visual fault locator functionalities. The FTB-730 PON FTTx/MDU OTDR module allows fiber installers to seamlessly characterize splitters in PON FTTx and multiple dwelling unit (MDU) applications. |
Module: FTB-810 NetBlazer ransport Tester | DSn/PDH and SONET/SDH Testing: The FTB-810x NetBlazer series offers comprehensive, yet simple test suites for field technicians to easily turn up, validate and troubleshoot transport circuits; Covering all DSn/PDH and SONET/SDH interfaces up to 10 Gbit/s |
Module: FTB-860 NetBlazer Ethernet Tester | Ethernet Testing up to 10G: The FTB-860 NetBlazer Ethernet Tester enables field technicians to quickly and easily turn up, validate and troubleshoot Ethernet services, with full EtherSAM capabilities, from 10 Mbit/s to 10 Gbit/s. |
Module: FTB-880 NetBlazer Multiservice Tester | Multiservice Testing: The FTB-880 NetBlazer allows field technicians to easily turn up, validate and troubleshoot DSn/PDH, SONET/SDH and Ethernet services up to 10 Gbit/s in converged optical networks. |
| Specifications | ||||||
| NetBlazer V2 Series Overview | ||||||
| Model | FTB-870V2 | FTB-880V2 | FTB-870Q | FTB-880Q | FTB-890 | FTB-890NGE |
| DSn/PDH (DS1/E1, ISDN PRI) | Y | Y | Y | Y | Y | |
| DSn/PDH (DS1/DS3, E1, E3, E4) | Y | Y | Y | |||
| Ethernet Testing (10G and below) | Y | Y | Y | Y | Y | Y |
| Ethernet Testing (40/100G) | Y | Y | ||||
| OTU1/OTU2 and Over-Clock Rates | Y | Y | Y | Y | Y | Y |
| OTU3/OUT4 and Over-Clock Rates | Y | Y | ||||
| SONET/SDH (up to 10G) | Y | Y | Y | Y | Y | Y |
| SONET/SDH (electrical) | Y | Y | Y | |||
| Fibre Channel (1x, 2x, 4x, 8x,10x) | Y | Y | Y | Y | Y | Y |
| Fibre Channel (16x) | Y | Y | ||||
| 1588 PTP/SyncE | Y | Y | Y | Y | Y | Y |
| Carrier Ethernet OAM | Y | Y | Y | Y | Y | Y |
| RFC 6349 (up to 10G TCP) | Y | Y | Y | Y | Y | Y |
| RFC 6349 (40G and 100G TCP) | Y | Y | ||||
| ExacTCP (up to 1G TCP) | Y | Y | Y | Y | Y | Y |
| CPRI (1.2G up to 9.8G) | Y | Y | Y | Y | Y | Y |
| RF Spectrum Analysis over CPRI Links | Y | Y | Y | Y | Y | |
| Dual-Port Testing (up to 10G) | Y | Y | Y | Y | Y | |
| Dual-Port Testing (40G/100G) | Y | Y | ||||
| Quad-Port Testing | Y | Y | ||||
| Simultaneous Transport/Datacom Testing | Y | Y |
