Pasternack PE9888-11

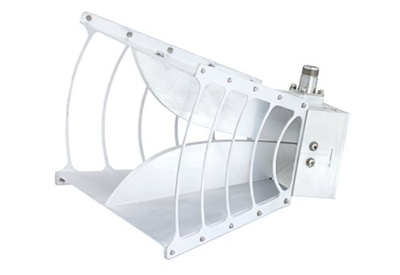

Broadband Gain Horn Antenna; Operating from 1GHz to 18GHz, Nominal Gain 11dB with N Female Input Connector

Model

PE9888-11

Product Family

RF & Microwave Network Analyzers

Manufacturer

Pasternack

Configured models contain the following attributes:

RF & Microwave Network AnalyzersEMC / EMI / RFI Analyzers10GHz <= 20GHz1GHz <= 10GHz

Configurations

Key Specs

Product Overview

Resources

Let us help you with your exact configuration

Please use 'Get Quick Quote' and we’ll contact you and quote for your exact need.

You can also get in touch, if you prefer, and our experts will be able to guide you with the right application and procurement solution for this product.

Key Specs

Indicates attributes available at part level. See Configurations tab for part detail.

Attribute	Value
High Frequency (range)	10GHz <= 20GHz
Low Frequency (range)	1GHz <= 10GHz

Product Overview

PE9888-11 broadband waveguide horn with adapter is also known as a waveguide horn antenna with coaxial adapter or transition. This broadband waveguide horn antenna with coaxial adapter / transition has a dB nominal gain and a broadband connector. Our dB broadband waveguide horn with coax transition adapter has a minimum frequency of 1,000 MHz and a maximum frequency of 18 GHz.

Broadband waveguide horn antenna with broadband input PE9888-11 has a vertical beam width of and horizontal of degrees at 3 dB. This broadband horn antenna with dB is part of over 40,000 RF, microwave and millimeter wave components available from Pasternack.

Key Features

Max VSWR of 1.50:1 up to 18 GHz

Max input power 300 Watts

Nominal Gain typical 11 dB

Applications

EMI Detection

Antenna gain measurement

Pattern measurement

Key Specifications
PE9888-11 Broadband Gain Horn Antenna; Operating from 1GHz to 18GHz
Features	Parameters
Connector Input	N Type - Female
Frequency, Min	1,000 MHz
Frequency, Max	18 GHz
Polarization	Linear
Height	8.031 Inch
Width	6.457 Inch
Length	9.606 Inch
