The VMA vector modulation analysis measurement application transforms the X-Series signal analyzers with multi-touch into vector signal analyzers by providing a wide range of measurements, digital types, and filters to perform comprehensive signal analysis, helping you thoroughly test your designs, ensure product quality, and optimize without compromise.
| Key Features |
| Support spectrum and power measurements: monitor spectrum, channel power, OBW, CCDF, ACP, SEM and Spurious |
| Support I/Q waveform measurement including both RF envelope and I/Q waveform |

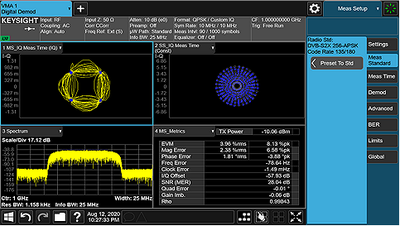

| Support digital demod measurement with multiple result traces like Raw Main time, Spectrum, I/Q Meas Time, I/Q Meas Spectrum, Error Vector Time, Error Vector Spectrum, Demod Results, Demod Bits |
| Support digital modulation formats: 2-64 FSK, BPSK, QPSK, 8PSK, 16-1024QAM, MSK, ASK, APSK, VSB etc. |
| Convenient presets for popular formats: NADC, EDGE, PDC, PHS, DVB (16/32/64/256QAM), DVB-S2/S2X (16/32/64/128/256 APSK), TETRA, APCO-25, DMR, dPMR, WiSUN (FSK and O-QPSK PHY), WLAN 802.11ay (CB1/CB2 MCS12) DECT, VDL Mode 2, MIL-STD CPM, SOQPSK-TG etc. |
| Support flexible digital modulation format, measurement filter, reference filter, symbol rate etc. settings with custom defined test limit with Pass/Fail indicator |
| Performance: Absolute amplitude accuracy: up to 0.19 dB, 95% percentile; EVM (QPSK): < 0.5% rms |
| Support multi-touch user interface and SCPI remote interface programming |
| KeysightCare software support subscription included |
VMA digital demodulation measurement application (N9054EM0E)
VMA custom OFDM measurement application (N9054EM1E)
| Software License Type | Software License | Support Subscription |
| Node-locked perpetual | R-Y5C-001-A | R-Y6C-001- Z2 |
| Node-locked subscription | R-Y4C-001-Z1 | Included |
| Transportable perpetual | R-Y5C-004-D | R-Y6C-004- Z2 |
| Transportable time-based | R-Y4C-004- Z1 | Included |
| Floating perpetual (single site) | R-Y5C-002-B | R-Y6C-002- Z2 |
| Floating subscription (single site) | R-Y4C-002- Z1 | Included |
| USB portable perpetual | R-Y5C-005-E | R-Y6C-005- Z2 |
| USB portable subscription | R-Y4C-005- Z1 | Included |
Notes:
1. z means different time-based license duration. F for six months, L for 12 months, X for 24 months, and Y for 36 months. All time-based licenses have included the support subscription same as the time -base duration.
2. z means different support subscription duration. L for 12 months (as default), X for 24 months, Y for 36 months, and Z for 60-months. Support subscription must be purchased for all perpetual licenses with 12-months as the default.
All software upgrades and KeysightCare support are provided for software licenses with valid support subscription.
