Quick quote: HV Diagnostics TD30

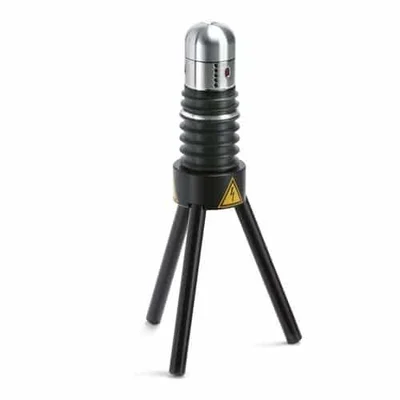

HV Diagnostics TD30
Diagnostic Measurement System; Tan Delta 30
Model
TD30Product Family
Electrical Power TestManufacturer
HV DiagnosticsConfigured models contain the following attributes:
Electrical Power TestHipot TestingConfigurations
Key Specs
Product Overview
Resources
Let us help you with your exact configuration
Please use 'Get Quick Quote' and we’ll contact you and quote for your exact need.
You can also get in touch, if you prefer, and our experts will be able to guide you with the right application and procurement solution for this product.
Key Specs
Please refer to the Resources section for Datasheets or see the Product Overview.
If you would like to know more, please get in touch and one of our team will be happy to help.
Product Overview
The TD30 was the first small portable VLF TD system with wireless Bluetooth technology that really made performing Tan Delta testing in the field easy to perform. Compared to other TD systems on the market that dvrequired several connections to be made or were large and bulky, the TD30 requires very few connections and does not use any special batteries or fiber optic cabling that is prone to damage in the field environment.
The TD30 is designed to work with the HVA30, HVA30-7 and HVA34 VLF test systems making it suitable for testing 25kV and below cable systems. The unit is supplied with host of accessories including corona protection, Blue tooth dongle, jumper cable, ground cable, C Type batteries, C Battery Charger etc.
| Key Features |
| Perform advanced diagnostics on MV Cables according to IEEE400 and 400.2 |
| Suitable for testing 25kV cables and below |
| Wireless Bluetooth Connection |
| Minimum connection hookups |
| Accurate 1E-5 Resolution! |
| Excellent, easy to use TD reporting |
| Supplied with Free TD control center Software and FW upgrades |
| Local LED indication for TD value range |
| Leakage Current Guard Protection |
| Sleep mode saves battery life |
| Uses universal C-type batteries |
| Supplied in rugged transport case with all accessories. |
| Applications |
| XLPE |
| EPR |
| PE |
| PILC |
| Capacitors |
| Transformer |
| Rotating machines |
| Detecting water trees |
| Detecting water degradation |
| Specifications | ||||
TD30 Diagnostic Measurement System; Tan Delta 30 | ||||
| Model Overview | ||||
| Model: | TD30 | TD60-MC | TD90-MC | TD120-MC |
| Ordering Information | 700 003 | 706 003 | 709 003 | 712 003 |
| Power Supply | 2 C Type Batteries | 2 C Type Batteries | 2 C Type Batteries | 2 C Type Batteries |
| Rated Operating Voltage | RMS: 1-23kV Peak:33kV | RMS:1-44kV Peak:62kV | RMS: 1-64kV Peak: 90kV | RMS:1-85kV Peak:120kV |
| Voltage Measurement | Resolution: 0.1kV Accuracy: 1% (of reading) | Resolution: 0.1kV Accuracy: 1% (of reading) | Resolution: 0.1kV Accuracy: 1% (of reading) | Resolution: 0.1kV Accuracy: 1% (of reading) |
| Current Measurement | Resolution: 1µA Accuracy: 1% (of reading) | Resolution: 1µA Accuracy: 1% (of reading) | Resolution: 1µA Accuracy: 1% (of reading) | Resolution: 1µA Accuracy: 1% (of reading) |
| Frequency Measurement | Range: 0.01 to 0.1Hz Resolution: 0.01Hz | Range: 0.01 to 0.1Hz Resolution: 0.01Hz | Range: 0.01 to 0.1Hz Resolution: 0.01Hz | Range: 0.01 to 0.1Hz Resolution: 0.01Hz |
Tan Delta/ Dissipation Factor Measurement | Resolution: 1 x 10-5 Accuracy >15nF: ±1 x 10-4 Accuracy <15nF: ±3 x 10-4 | Resolution: 1 x 10-5 Accuracy >15nF: ±1 x 10-4 Accuracy <15nF: ±3 x 10-4 | Resolution: 1 x 10-5 Accuracy >15nF: ±1 x 10-4 Accuracy <15nF: ±3 x 10-4 | Resolution: 1 x 10-5 Accuracy >15nF: ±1 x 10-4 Accuracy <15nF: ±3 x 10-4 |
| Load Range | 0.5nF to 10 µF | 0.5nF to 10 µF | 0.5nF to 10 µF | 0.5nF to 10 µF |
| Weight | 7 lbs / 3 kgs | 11 lbs / 5 kgs | 24 lbs / 11 kgs | 35 lbs / 16 kgs |
Dimensions (LxWxH) | 9.5" x 3.5" 240 x 85mm | 12" x 11" x 25" 300x280x640mm | 12" x 11" x 31" 300x280x790mm | 12" x 11" x 31" 300x280x790mm |
| Computer Interface | Bluetooth™ | Bluetooth™ | Bluetooth™ | Bluetooth™ |
| Accessories Included | Integrated HV and Grounding Cable Bluetooth USB Dongle TD Control Center Software Operating Manual Corona Protection | Integrated HV and Grounding Cable Bluetooth USB Dongle TD Control Center Software Operating Manual Corona Protection | Integrated HV and Grounding Cable Bluetooth USB Dongle TD Control Center Software Operating Manual Corona Protection | Integrated HV and Grounding Cable Bluetooth USB Dongle TD Control Center Software Operating Manual Corona Protection |
| Standards | Shock: IEC68-2-27 Vibration: IEC68-2-6 EMC: IEC6100-4-2 IEC6100-4-4 EN55011 Safety: EN60950 EN50191 EN61010-1 | Shock: IEC68-2-27 Vibration: IEC68-2-6 EMC: IEC6100-4-2 IEC6100-4-4 EN55011 Safety: EN60950 EN50191 EN61010-1 | Shock: IEC68-2-27 Vibration: IEC68-2-6 EMC: IEC6100-4-2 IEC6100-4-4 EN55011 Safety: EN60950 EN50191 EN61010-1 | Shock: IEC68-2-27 Vibration: IEC68-2-6 EMC: IEC6100-4-2 IEC6100-4-4 EN55011 Safety: EN60950 EN50191 EN61010-1 |
| Environmental | Storage: -13°F to 158°F/ -25°C to 70°C Operating: 23°F to 113°F/ -5°C to +45°C Humidity: 80% RH non-condensing | Storage: -13°F to 158°F/ -25°C to 70°C Operating: 23°F to 113°F/ -5°C to +45°C Humidity: 80% RH non-condensing | Storage: -13°F to 158°F/ -25°C to 70°C Operating: 23°F to 113°F/ -5°C to +45°C Humidity: 80% RH non-condensing | Storage: -13°F to 158°F/ -25°C to 70°C Operating: 23°F to 113°F/ -5°C to +45°C Humidity: 5 to 85% RH non-condensing |
Resources
File resources
HV Diagnostics TD Series Data Sheet
