Quick quote: Megger ADX-15-RLC

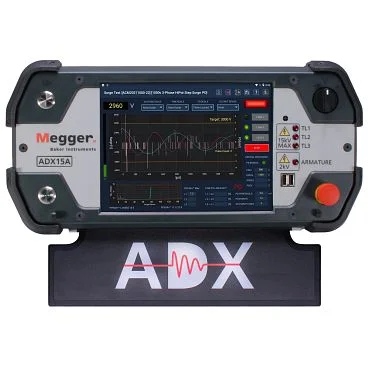

Megger ADX-15-RLC
Automated Static Motor Analyzer; with RLC, DC Insulation Resistance, DC HiPot, 15 kV
Model
ADX-15-RLCProduct Family
Electrical & Power QualityManufacturer
MeggerConfigured models contain the following attributes:
Electrical & Power QualityTransformer and Motor TestingConfigurations
Key Specs
Product Overview
Resources
Let us help you with your exact configuration
Please use 'Get Quick Quote' and we’ll contact you and quote for your exact need.
You can also get in touch, if you prefer, and our experts will be able to guide you with the right application and procurement solution for this product.
Key Specs
Please refer to the Resources section for Datasheets or see the Product Overview.
If you would like to know more, please get in touch and one of our team will be happy to help.
Product Overview
The ADX family includes models designed to perform tests up to 15 kV.
The five main options include 4 kV, 6 kV, 12 kV, 15 kV, and 15 kV-A (Armature). These analyzers can be coupled with PPX to increase test voltages to 30 kV or 40 kV for tests on high voltage motors, coils, and generators.
The Megger Baker ADX is used for motor winding, coil, assembled motor, and generator testing. It will be used by Original Equipment Manufacturers, Industrial Maintenance Engineers, Motor Repair Shops, and Service Engineers working on equipment in the field for verification, validation, fault finding, and research; or to serve as part of a maintenance program.
| Key Features |
| Detachable IEC61010-compliant HV / LV Kelvin test leads |
| PowerDB Dashboard secure cloud-based analysis software |
| 10.4-inch daylight viewable touch screen |
| Industrial IP68 Waterproof Silicone Keyboard |
| Choice of Manual, Automatic, or Sequence testing |
| Screen-level context sensitive help |
| Adaptable search capability |
| Asset management tools |
| Configurable Route based testing |
| Pulse-to-Pulse and Line-to-Line Error Area Ratio analysis |
| Import existing databases from AWA and DX |
| Android operating system |
| 2 x USB ports and ethernet connection |
| HDMI port for duplicating screens |
| Wi-Fi and Bluetooth enabled |
| Foldable viewing stand |
| Benefits |
| Asset-centric approach provides opportunities for turnkey testing. |
| Sequence mode leverages the approach for fully-automatic testing. |
| Data analysis features identify service needs and reduce down time |
| Remote asset configuration via PowerDB Dashboard frees the ADX for testing needs. |
| Separating Asset from Installation opens opportunities for data analysis |
| Tests Performed |
| Winding Resistance |
| Inductance |
| Capacitance |
| Insulation Resistance |
| Dielectric Absorption (DA) |
| Polarization Index (PI) |
| DC HiPot |
| DC Step-Voltage |
| DC Continuous Ramped |
| Surge analysis with EAR+™ |
| Partial Discharge on Surge |
| Specifications | |
ADX Automated Static Motor Analyzer | |
| Feature | Parameter |
Max. Generated Voltage (Peak Voltage for AC or DC Test) | ADX4: Nominal 100 V–4 kV ADX6: Nominal 100 V–6 kV ADX12: Nominal 100 V–12 kV ADX15: Nominal 100 V–15 kV ADX15A: Nominal 100 V–15 kV |
| Internal Memory | RAM 2GB DDR3 |
| Internal Storage | 8GB MMC and 480GB SSD Drive |
| Processor Speed | 1.0 Ghz (Quad core) |
| User Interface | Capacitive touch screen, mouse, keyboard, stylus |
| Platform | Android |
| Display | 10.4-in touch screen |
| Resolution | XGA 1024 x 768 |
| Bluetooth | 4.1 / BLE with CSA2 support |
| Wi-Fi | 802.11 a/b/g/n Dual Band 2.4 / 5 GHz |
| Ethernet | Gigabit Ethernet 10/100/1000 Mbps |
| USB Flash Drive | USB 2.0 |
| Battery Backup | 4+ hours standby time |
| Weight | ADX15: 46.3 lbs. (21 kg) ADX15A: 50.7 lbs. lbs. (23 kg) |
| Dimensions | 18 x 23 x 8.5 in (457 x 584 x 216 mm) |
| Specifications | ||
ADX Automated Static Motor Analyzer | ||
| Model Overview | ||
| Model | Description | Part Number |
| ADX 4 | 4 kV Standard ADX with DC Insulation Resistance (IR, DA, PI), DC HiPot (standard, Step, Ramp), and Surge tests only. | 1013-911 |
| ADX-4-RLC | 4 kV Standard ADX with RLC (low voltage Resistance, Inductance, and Capacitance), DC Insulation Resistance (IR, DA, PI), DC HiPot (standard, Step, Ramp), and Surge tests. | 1013-916 |
| ADX-4-RLC-PD | 4 kV Standard ADX with RLC (low voltage Resistance, Inductance, and Capacitance), DC Insulation Resistance (IR, DA, PI), DC HiPot (standard, Step, Ramp), Surge, and Partial Discharge tests. | 1013-920 |
| ADX-4-RLC-PD-PPI | 4 kV Standard ADX with RLC (low voltage Resistance, Inductance, and Capacitance), DC Insulation Resistance (IR, DA, PI), DC HiPot (standard, Step, Ramp), Surge, and Partial Discharge tests. Includes Power Pack Interface. | 1013-925 |
| ADX-6 | 6 kV Standard ADX with DC Insulation Resistance (IR, DA, PI), DC HiPot (standard, Step, Ramp), and Surge tests only. | 1013-912 |
| ADX-6-RLC | 6 kV Standard ADX with RLC (low voltage Resistance, Inductance, and Capacitance), DC Insulation Resistance (IR, DA, PI), DC HiPot (standard, Step, Ramp), and Surge tests. | 1013-917 |
| ADX-6-RLC-PD | 6 kV Standard ADX with RLC (low voltage Resistance, Inductance, and Capacitance), DC Insulation Resistance (IR, DA, PI), DC HiPot (standard, Step, Ramp), Surge, and Partial Discharge tests. | 1013-921 |
| ADX-6-RLC-PD-PPI | 6 kV Standard ADX with RLC (low voltage Resistance, Inductance, and Capacitance), DC Insulation Resistance (IR, DA, PI), DC HiPot (standard, Step, Ramp), Surge, and Partial Discharge tests. Includes Power Pack Interface. | 1013-926 |
| ADX 12 | 12 kV Standard ADX with DC Insulation Resistance (IR, DA, PI), DC HiPot (standard, Step, Ramp), and Surge tests only. | 1013-913 |
| ADX-12-RLC | 12 kV Standard ADX with RLC (low voltage Resistance, Inductance, and Capacitance), DC Insulation Resistance (IR, DA, PI), DC HiPot (standard, Step, Ramp), and Surge tests. | 1013-918 |
| ADX-12-RLC-PD | 12 kV Standard ADX with RLC (low voltage Resistance, Inductance, and Capacitance), DC Insulation Resistance (IR, DA, PI), DC HiPot (standard, Step, Ramp), Surge, and Partial Discharge tests. | 1013-922 |
| ADX-12-RLC-PD-PPI | 12 kV Standard ADX with RLC (low voltage Resistance, Inductance, and Capacitance), DC Insulation Resistance (IR, DA, PI), DC HiPot (standard, Step, Ramp), Surge, and Partial Discharge tests. Includes Power Pack Interface. | 1013-927 |
| ADX-15 | 15 kV Standard ADX with DC Insulation Resistance (IR, DA, PI), DC HiPot (standard, Step, Ramp), and Surge tests only. | 1013-914 |
| ADX-15-RLC | 15 kV Standard ADX with RLC (low voltage Resistance, Inductance, and Capacitance), DC Insulation Resistance (IR, DA, PI), DC HiPot (standard, Step, Ramp), and Surge tests. | 1013-919 |
| ADX-15-RLC-PD | 15 kV Standard ADX with RLC (low voltage Resistance, Inductance, and Capacitance), DC Insulation Resistance (IR, DA, PI), DC HiPot (standard, Step, Ramp), Surge, and Partial Discharge tests. | 1013-923 |
| ADX-15-RLC-PD-PPI | 15 kV Standard ADX with RLC (low voltage Resistance, Inductance, and Capacitance), DC Insulation Resistance (IR, DA, PI), DC HiPot (standard, Step, Ramp), Surge, and Partial Discharge tests. Includes Power Pack Interface. | 1013-928 |
| ADX-15A | 15 kV Standard ADX with DC Insulation Resistance (IR, DA, PI), DC HiPot (standard, Step, Ramp), and Surge tests only. Includes Armature testing hardware and accessories | 1013-915 |
| ADX-15A-RLC-PD | 6 kV Standard ADX with RLC (low voltage Resistance, Inductance, and Capacitance), DC Insulation Resistance (IR, DA, PI), DC HiPot (standard, Step, Ramp), Surge, and Partial Discharge tests. Includes Armature testing hardware and accessories. | 1013-924 |
Resources
File resources
Megger ADX Automated Static Motor Analyzer Data Sheet
