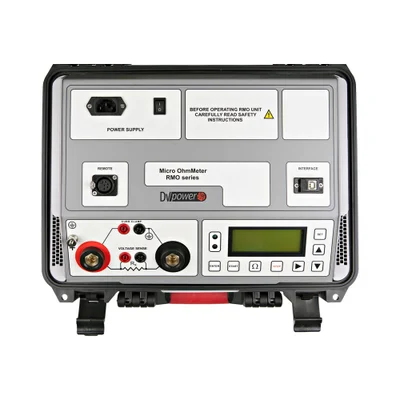

The RMO-G is a portable micro-ohmmeter designed for contact resistance measurement of non-inductive test objects and applications with increased safety requirement. It tests medium and high-voltage circuit breakers, disconnecting switches, high-current bus bar joints, cable splices, and different high-current links. Due to its Both Sides Grounded and Remote Control functionalities, the instrument accurately measures even in the most demanding environments, providing additional safety to testing personnel.
RMO-G instruments can store up to 500 measurements in internal memory. Also, they have a built-in thermal printer and USB flash drive available as an option. An additional option is the built-in High Precision module suitable for measurement of very low resistance, in the range from 1 to 30 µΩ, with 0,01 µΩ resolution.
| Key Features |
| Lightweight – from 8 to 11,5 kg /17.6 lbs to 25.4 lbs |
| Powerful – from 0 to 800 A DC |
| Measuring range 0 – 999,9 mΩ (up to 6 Ω) |
| Best resolution 0,1 µΩ (0,01 µΩ with “HP” module) |
| Typical accuracy ± (0,1 % rdg + 0,1 % FS) |
| Remote Control Unit (optional) |
| Both Sides Grounded Unit (optional) |
| A built-in High Precision module (optional) |
| SINGLE / CONTIN / BSG / DTRtest modes |
| Specifications |
|
| Micro Ohmmeter RMO-G |
|
| Features | Parameters |
| Generated Current | Up to 800A DC |
| Typical Accuracy | ± (0,1 % rdg + 0,1 % FS) |
| Resolution | up to 0,01 μΩ |
| Measuring Range | 0,1 μΩ – 999,9 mΩ
Expandable to 6000 mΩ
|
| Both Sides Grounded | Yes |
| Weight | 8-11 kg
17,6-24,3 lbs
|
| Ingress Protection | IP 67 with closed lid |
| Specifications |
|
|
| Micro Ohmmeter RMO-G |
|
|
| Ordering Information |
|
|
| Model | Order Number | Description |
| RMO100G | RMO100G-N-00 | Micro Ohmmeter RMO-G
Included Accessories:
DV-Win PC software including USB cable
Mains power cable
Ground (PE) cable
|
| RMO200G | RMO200G-N-00 | Micro Ohmmeter RMO-G
Included Accessories:
DV-Win PC software including USB cable
Mains power cable
Ground (PE) cable
|
| RMO300G | RMO300G-N-00 | Micro Ohmmeter RMO-G
Included Accessories:
DV-Win PC software including USB cable
Mains power cable
Ground (PE) cable
|
| RMO400G | RMO400G-N-00 | Micro Ohmmeter RMO-G
Included Accessories:
DV-Win PC software including USB cable
Mains power cable
Ground (PE) cable
|
| RMO500G | RMO500G-N-00 | Micro Ohmmeter RMO-G
Included Accessories:
DV-Win PC software including USB cable
Mains power cable
Ground (PE) cable
|
| RMO600G | RMO600G-N-00 | Micro Ohmmeter RMO-G
Included Accessories:
DV-Win PC software including USB cable
Mains power cable
Ground (PE) cable
|
| RMO800G | RMO800G-N-00 | Micro Ohmmeter RMO-G
Included Accessories:
DV-Win PC software including USB cable
Mains power cable
Ground (PE) cable
|
