Quick quote: Keysight Technologies N9910X
Keysight Technologies N9910X
RF & MW Handheld Analyzer Accessories
Model
N9910XProduct Family
CableManufacturer
Keysight TechnologiesConfigured models contain the following attributes:
CableAntenna & PIM AnalyzersCable & Antenna Analyzer AccysConfigurations
Key Specs
Product Overview
Resources
Let us help you with your exact configuration
Please use 'Get Quick Quote' and we’ll contact you and quote for your exact need.
You can also get in touch, if you prefer, and our experts will be able to guide you with the right application and procurement solution for this product.
Key Specs
Please refer to the Resources section for Datasheets or see the Product Overview.
If you would like to know more, please get in touch and one of our team will be happy to help.
Product Overview

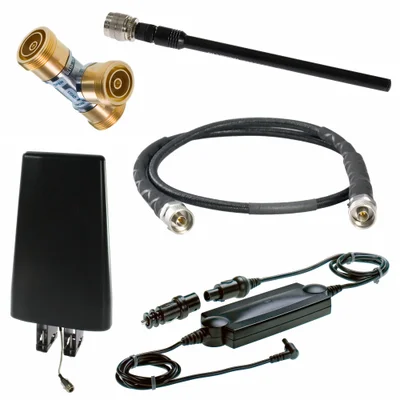

N9910X RF and Microwave handheld accessories complement Keysight's installation and maintenance test tools. These accessories provide you with a complete solution when using Keysight tools for your measurement needs.
RF & MW Handheld Analyzer Accessories | |
| Model Number | Description |
| N9910X-700 | Rugged phase-stable cable, Type-N(m) to Type-N(f) 18 GHz, 3.28 ft. |
| N9910X-701 | Rugged phase-stable cable, Type-N(m) to Type-N(m) 18 GHz, 3.28 ft. |
| N9910X-704 | Rugged phase-stable cable, Type-N(m) to TNC(f), 13 GHz, 5 ft. |
| N9910X-705 | Rugged phase-stable cable, Type-N(m) to TNC(m), 13 GHz, 5 ft. |
| N9910X-708 | Rugged phase-stable cable, 3.5 mm(m) to 3.5 (f), 26.5 GHz, 3.28 ft |
| N9910X-709 | Rugged phase-stable cable, 3.5 mm(f) to 3.5 (f), 26.5 GHz, 3.28 ft. |
| N9910X-712 | Trigger/Reference-in Cable, SMA (m) to BNC (f), 3.28 ft. |
| N9910X-713 | Bias-Tee Power Cable, SMB(f) to BNC(m), 3.28 ft. |
| N9910X-714 | Rugged phase-stable cable, 2.4 mm (f) to 2.4 mm (m) 50 ohms, 50 GHz, 3.28 ft or 1 m |
| N9910X-715 | Rugged phase-stable cable, 2.4 mm (f) to 2.4 mm (f) 50 ohms, 50 GHz, 3.28 ft or 1 m |
| N9910X-800 | 3-in-1 OSL T-Calibration kit, DC-6 GHz, Type-N(m) NOTE: This calibration kit is not eligible for annual re-calibration. There are no calibration certificate and also no data report calibrations (no UK6, 1A7 and A6J). If the customer requires annual calibration, please order 85514A or 85515A. |
| N9910X-801 | 3-in-1 OSL T-Calibration Kit, DC-6 GHz, Type-N (f) |
| N9910X-802 | T-Calibration Kit, DC-4 GHz, 7/16 DIN(m) NOTE: This calibration kit is not eligible for annual re-calibration. There are no calibration certificate and also no data report calibrations (no UK6, 1A7 and A6J). |
| N9910X-803 | T-Calibration Kit, DC-4 GHz, 7/16 DIN(f) NOTE: This calibration kit is not eligible for annual re-calibration. There are no calibration certificate and also no data report calibrations (no UK6, 1A7 and A6J). |
| N9910X-810 | Rugged phase stable cable, Type-N(m) to Type-N(m), 6 GHz, 5 ft. |
| N9910X-811 | Rugged phase stable cable, Type-N(m) to Type-N(f), 6 GHz, 5 ft. |
| N9910X-812 | Rugged phase stable cable, Type-N(m) to Type-N(m), 8 GHz, 12 ft. |
| N9910X-813 | Rugged phase stable cable, Type-N(m) to Type-N(f), 8 GHz, 12 ft. |
| N9910X-814 | Rugged phase-stable cable, Type-N (m) to 7/16 (m), 6 GHz, 60 inch or 1.5 m |
| N9910X-815 | Rugged phase-stable cable, Type-N (m) to 7/16 (m), 6 GHz, 12 ft or 3.6 m |
| N9910X-816 | Rugged phase-stable cable, Type-N (m) to Type-N (f), 6 GHz, 3.28 ft or 1 m |
| N9910X-817 | Rugged phase-stable cable, Type-N (m) to Type-N (m), 6 GHz, 3.28 ft or 1 m |
| N9910X-820 | Antenna, directional, multiband, 800-2500 MHz, 10 dBi |
| N9910X-821 | Antenna, telescopic whip, 70 MHz to 1 GHz |
| N9910X-822 | Antenna, handheld directional antenna, 600 MHz to 9 GHz |
| N9910X-823 | Antenna, cellular narrowband, 824 to 896 MHz |
| N9910X-824 | Antenna, cellular narrowband, PCS 1850 to 1990 MHz |
| N9910X-825 | Compatible with N9913/4/5/6/7/8A, N9913/4/5/6/7/8B, N9950/1/2A, N9925/6/7/8A, N9935/6/7/8A, N9933/4/5/6/7/8B, N9960/1/2/A Not compatible with N9912A and N9923A. For N9912A and N9923A |
| N9910XM28-H2A | Oleson Microwave Labs Harmonic Mixer Module (24-40 GHz) |
| N9910X-601 | Coaxial adapter NMD 2.4 mm (f) to type N (f) 50-ohm, 18 GHz |
| N9910X-602 | Coaxial adapter NMD 2.4 mm (f) to 2.92 mm/K (f) 50-ohm, 40 GHz |
| N9910X-603 | Coaxial adapter NMD 2.4 mm (f) to 3.5 mm (f) 50-ohm, 26.5 GHz |
| N9910X-604 | Coaxial adapter, 3.5mm-NMD (f) to 3.5mm (f), 26.5 GHz |
| N9910X-605 | Coaxial adapter, 3.5mm NMD (f) to Type-N (f), 18 GHz |
| N9910X-843 | Coaxial adapter, Type-N(m) to 7/16 DIN(f) |
| N9910X-845 | Kit, Adapter kit - Type-N(f) to 7/16(f),Type-N(f) to 7/16(m),Type-N(f) to Type-N(f) |
| N9910X-846 | Coaxial adapter, 50 ohm Type-N(m) to 75 ohm Type-N(f) (Quantity 2 required for 75 ohm measurements) |
| N9910X-847 | Adapter kit – Type-N(f) to TNC(m) adapter, Type-N(f) to TNC(f) adapter, 11 GHz |
| N9910X-848 | Coaxial adapter, Type-N(f) to 3.5 mm(f), 18 GHz |
| N9910X-849 | Coaxial adapter, Type-N(f) to 3.5 mm(m), 18 GHz |
| N9910X-850 | Coaxial adapter, Type-N(m) to Type-N(m), 18 GHz |
| N9910X-851 | Coaxial adapter, Type-N(f) to Type-N(f), 18 GHz |
| N9910X-852 | Coaxial adapter, Type-N(m) to Type-N(f), 18 GHz |
| N9910X-856 | Coaxial adapter, 2.4 mm (f) to 2.4 mm (f), 50 GHz |
| N9910X-857 | Coaxial adapter 2.4 mm (f) to 2.92 mm/K (f), 40 GHz |
| N9910X-860 | Fixed attenuator, 40 dB, 100 W, DC-3 GHz, Type-N(m) to Type-N(f) |
| N9910X-861 | Fixed attenuator, 40 dB, 50 W, DC-8.5 GHz, Type-N(m) to Type-N(f) |
| N9910X-870 | Battery-rechargeable Li-Ion 51WH (for HSA only) |
| N9910X-876 | Battery-rechargeable Li-Ion 70 WH (for FieldFox only) |
| N9910X-872 | External battery charger |
| N9910X-873 | (part number 0950-5824 or 0950-5014), AC/DC adapter for all countries except US and Canada |
| N9910X-874 | External bias-tee, 2.5 MHz to 6 GHz, 1 W, 0.5 A NOTE: Also recommend ordering N9910X-713 Bias-Tee Power Cable, SMB(f) to BNC(m), 3.28 ft., to connect to the FieldFox DC bias variable voltage source port. |
| N9910X-875 | DC car charger and adapter |
| N9910X-877 | (part number 0950-5824) AC/DC adaptor for US and Canada only |
| N9910X-880 | Extra soft carrying case with backpack and shoulder strap for a FieldFox analyzer |
| N9910X-881 | Hard transit case for a FieldFox analyzer |
| N9910X-886 | Torque wrench, 17mm, 90 N-cm (8 in-lb) |
| N9910X-890 | Extra Printed quick start guide |
| N9910X-891 | Extra Printed reference guide |
Resources
File resources
Keysight FieldFox Handheld Analyzers Data Sheet
