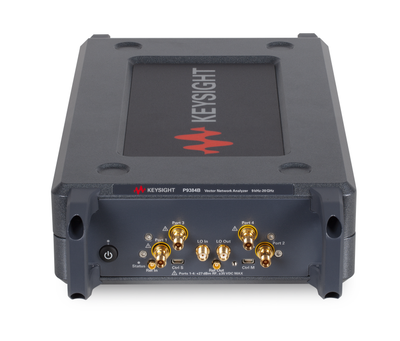

Keysight Technologies P9382B

The freedom of portable network analysis doesn’t have to mean a compromise in performance. P93xxB Series is an affordable vector network analyzer (VNA) which dramatically reduces your size of test. The VNA is packaged in a compact chassis and controlled by an external computer with powerful data processing capabilities and functionalities.

P93xxB provides excellent performance in general-purpose network analysis for passive components. With software applications like enhanced time domain analysis with TDR and automatic fixture removal, you can easily characterize passive components with the same performance of a benchtop setup. Choose from 2-port P937xB models up to 44 GHz or 4-port P938xB models up to 20 GHz.

Key Features:

• Most compact VNA for easy sharing between test locations
• Wide choice of frequency ranges – Up to 44 GHz (2-port P937xB), and up to 20 GHz (4-port P938xB)
• Ability to extend the number of test ports by combining two VNAs (maximum 8-port)
• > 115 dB dynamic range at 10 Hz IFBW
• < 0.0015 dBrms trace noise at 10 kHz IFBW
• < 15 msec cycle time for 2-port measurements, 201 points (typ)
• < 0.005 dB/deg.C temperature stability (typ)
• 1.88 kg (2-port P937xB) / 2.82 kg (4-port P938xB)
• Consistent measurement results with trusted Keysight’s VNAs (PNA/ENA or PXI VNA)
• Supports all mechanical cal kits and Electronic calibration (ECal) modules from Keysight
• Same GUI, SCPI commands and user experience with other Keysight’s VNAs
