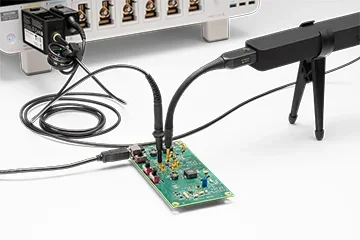

Tektronix TICP100

TICP Series IsoVu™ isolated current probes deliver exceptional bandwidth, noise rejection, accuracy, and ease of use for making current measurements. Complete galvanic isolation eliminates ground loops and enables very high common mode rejection. In a 1X configuration, the TICP Series probe's 50Ω input offers extremely low noise of less than 4.7 nV/√Hz, ideal for making accurate measurements on shunts. The probes offer a variety of attenuation tips to extend the differential voltage range. Depending upon the shunt used, the probes can perform current measurements from microamperes (μA) for low-power mobile designs to hundreds of amperes for industrial and mobility systems.

Key Applications:

• Current shunt measurements

• Half/full bridge designs using SiC or GaN, FETs, or IGBTs

• Double pulse testing (DPT)

• Floating gate measurements

• Power converter designs

• Switching power supply designs

• Steady state, sleep, and wake-up state current monitoring
