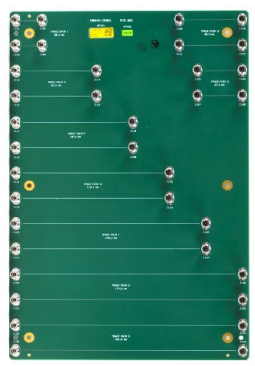

Keysight Technologies M8049A-002

ISI Channel Board; Nine Traces from 0.8 to 8.0 inches

Modello

M8049A-002

Produttore

Keysight Technologies

I modelli configurati contengono le seguenti caratteristiche:

ParBERTS

Configurazioni

Specifiche chiave

Panoramica del prodotto

Risorse

Saremo felici di aiutarti a trovare la configurazione esatta

Utilizza "Preventivo rapido" e ti contatteremo per fornirti un preventivo per le tue esigenze.

Puoi anche contattarci, se preferisci, e i nostri esperti ti guideranno a trovare la giusta applicazione e soluzione di acquisto per questo prodotto.

Panoramica del prodotto

The M8049A ISI channel boards can be used to emulate channel loss in receiver test setups. The boards are designed to be used to emulate channel loss for data rates of 32 Gb/s and higher. A choice of 21 PC board traces with different lengths can be inserted into the signal path. The trace lengths range from 0.8 inch (20.3 mm) to 22.3 inch (566.4 mm). By cascading the traces within one board or with another board a wide range of channels can be emulated with very fine resolution of insertion loss steps. With their small size the ISI channel boards can be located closely to the device under test. The cascadable ISI channels are complemented by the Keysight Technologies, Inc. compliance channels for SATA, DisplayPort, PCI Express.

Key Features

Emulate a wide range of channel loss with ISI (Inter Symbol Interference) traces with fine resolution

Three ISI boards with 5 short (1.4’’ to 5.5’’), 9 medium (0.8’’ to 7.95’’) and 7 long traces (9.05’’ to 22.25’’), traces can be cascaded

Rogers 4350B and Megtron 6 PC board material with known S21 parameters

Differential channels

Suitable for symbol rates of 32 Gbaud and higher

Small size

Specifications
Keysight M8049A-002
Features	Parameters
	M8049A-001	M8049A-002	M8049A-003
Trace Lengths	1.4" (36mm)	0.8” (20.3 mm)	9.05” (229.9 mm)
	2.4” (61.8 mm)	1.35” (34.3 mm)	11.25” (285.8 mm)
	3.4” (87.6 mm)	1.9” (48.3 mm)	13.45” (341.6 mm)
	4.5” (113.4 mm)	2.45” (62.2 mm)	15.65” (397.5 mm)
	5.5” (139.2 mm)	3.55” (90.2 mm)	17.85” (453.4 mm)
		4.65” (118.1 mm)	20.05” (509.3 mm)
		5.75” (146.1 mm)	22.25” (565.2 mm)
		6.85” (174.0 mm)
		7.95” (201.9 mm)

PC Board Material	Rogers 4350B	Megtron 6	Megtron 6
Insertion Loss	Typical values see figure 2, 3, 4 (excludes cables)
Insertion Loss For M8046A802 Cable
Typical	< 2 dB at 16 GHZ	< 2 dB at 16 GHZ	< 2 dB at 16 GHZ
Typical	< 3 dB at 32 GHZ	< 3 dB at 32 GHZ	< 3 dB at 32 GHZ
Return Loss
Typical	Better than -12 dB at up to 16 Ghz	Better than -12 dB at up to 16 Ghz	Better than -12 dB at up to 16 Ghz
Typical	Better than -10 dB at up to 24 Ghz	Better than -10 dB at up to 24 Ghz	Better than -10 dB at up to 24 Ghz
Intra-Pair Skew	< 3 ps Typical	< 3 ps Typical	< 3 ps Typical
Input Impedance	100 Ω differential, 50 Ω single ended, ± 10% typical	100 Ω differential, 50 Ω single ended, ± 10% typical	100 Ω differential, 50 Ω single ended, ± 10% typical
Max Input Voltage Levels	± 5 V	± 5 V	± 5 V
Interface	Differential or Single-ended	Differential or Single-ended	Differential or Single-ended
Connectors	2.4 mm, female Soldered	2.4 mm, female, removable connectors	2.4 mm, female, removable connectors

Specifications
Keysight M8049A-002
Table 2
Typical ISI jitter values p-p for all M8049A traces at PRBS 215-1 and selected symbol rates
	Data	10 Gb/s	-	16 Gb/s	-	26.5625 Gb/s	-	32 Gb/s	-	53.125 Gb/s	-
	Corresponding UI (unit interval	100 ps	-	62.5 ps	-	37.647 ps	-	31.25 ps	-	18.824 ps	-
	Trace Lengh	ps	UI	ps	UI	ps	UI	ps	UI	ps	UI
M8049A-001	1.4" (36mm)	-	-	1.43	0.023	1.7	0.045	3.3	0.107	3.4	0.182
	2.4” (61.8 mm)	-	-	2.13	0.034	3.7	0.098	4.3	0.139	4.5	0.237
	3.4” (87.6 mm)	-	< 0.05	2.68	0.043	5.4	0.142	5.4	0.174	6	0.321
	4.5” (113.4 mm)	-	-	3.4	0.054	6.3	0.167	5.9	0.189	8.3	0.442
	5.5” (139.2 mm)	-	-	3.68	0.059	6.7	0.177	6.2	0.199	10.7	0.568
		-	-	-	-	-	-	-	-	-	-
	Trace Lengh	ps	UI	ps	UI	ps	UI	ps	UI	ps	UI
M8049A-002	0.8” (20.3 mm)	-	-	-	-	3.9	0.103	4.2	0.136	4.6	0.246
	1.35” (34.3 mm)	-	-	-	-	4.1	0.109	4.3	0.138	4.8	0.258
	1.9” (48.3 mm)	-	-	-	-	4.3	0.115	4.6	0.146	5.2	0.276
	2.45” (62.2 mm)	-	-	-	-	4.8	0.128	5	0.16	5.3	0.279
	3.55” (90.2 mm)	-	< 0.05	3.4	0.054	5.3	0.14	5.5	0.177	6.1	0.322
	4.65” (118.1 mm)	-	-	4.4	0.065	6	0.16	6.7	0.214	7.2	0.381
	5.75” (146.1 mm)	-	-	4.9	0.078	7.2	0.191	8.1	0.259	-	-
	6.85” (174.0 mm)	-	-	5.5	0.089	8.3	0.22	9.4	0.301	-	-
	7.95” (201.9 mm)	5.5	0.055	6.7	0.107	9.9	0.263	11.4	0.364	-	-
		-	-	-	-	-	-	-	-	-	-
	Trace Lengh	ps	UI	ps	UI	ps	UI	ps	UI	ps	UI
M8049A-003	9.05” (229.9 mm)	6.2	0.062	8	0.128	11.1	0.294	13.7	0.438	-	-
	11.25” (285.8 mm)	8.4	0.084	10.4	0.166	15	0.399	-	-	-	-
	13.45” (341.6 mm)	11.2	0.112	13.8	0.221	18.9	0.503	-	-	-	-
	15.65” (397.5 mm)	14.4	0.144	18.1	0.289	-	-	-	-	-	-
	17.85” (453.4 mm)	18.2	0.182	22.5	0.359	-	-	-	-	-	-
	20.05” (509.3 mm)	22.3	0.223	28.2	0.451	-	-	-	-	-	-
	22.25” (565.2 mm)	26.4	0.264	34.2	0.547	-	-	-	-	-	-
