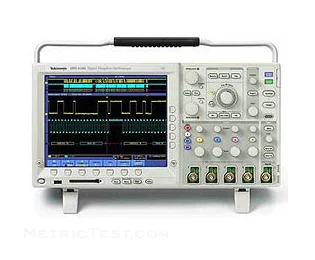

Tektronix DPO4104

Digital Phosphor Oscilloscope; 4 Channel, 1GHz

Modello

DPO4104

Famiglia di prodotti

Oscilloscopes & Logic Analyzers

Produttore

Tektronix

I modelli configurati contengono le seguenti caratteristiche:

Oscilloscopes & Logic AnalyzersOscilloscopes 1 - 3GHz45 GS/s100MHz <= 1GHz

Configurazioni

Specifiche chiave

Panoramica del prodotto

Risorse

Saremo felici di aiutarti a trovare la configurazione esatta

Utilizza "Preventivo rapido" e ti contatteremo per fornirti un preventivo per le tue esigenze.

Puoi anche contattarci, se preferisci, e i nostri esperti ti guideranno a trovare la giusta applicazione e soluzione di acquisto per questo prodotto.

Specifiche chiave

Indica le opzioni disponibili sullo strumento. Consultate la scheda Configurazioni per i dettagli dello strumento

Attributo	Valore
Channel/Port Count	4
Maximum Sample/Data Rate	5 GS/s
High Frequency (range)	100MHz <= 1GHz

Panoramica del prodotto

Offering up to 1 GHz bandwidth and 5 GS/s sample rate, the MSO/DPO4000B Mixed Signal Oscilloscope Series delivers the performance you need to see fast-changing signal details. With as many as 20 channels, you can analyze analog and digital signals with a single instrument. Combine that with automated serial and parallel bus analysis, innovative Wave Inspector® controls, and automated power measurements, and the MSO/DPO4000B Series provides the feature-rich tools you need to simplify and speed debug of your complex design.

Key Features

1 GHz, 500, 350 MHz Bandwidth Models

2 and 4 Channel Models

Sample Rates Up to 5 GS/s on All Channels

10 Megasample Record Length on All Channels

35,000 wfms/s Maximum Waveform Capture Rate

Wave Inspector® Controls Provide Unprecedented Efficiency in Waveform Analysis

I2C, SPI, CAN, RS-232/422/ 485/UART Serial Triggering and Analysis Options

10.4 in. (264 mm) XGA Color Display

Small Footprint and Light Weight – Only 5.4 in. (137 mm) deep and 11 lbs. (5 kg)!

USB and CompactFlash on Front Panel for Quick and Easy Storage

Built-in Ethernet Port

Plug ’n’ Play Connectivity and Analysis Software Solutions

USB 2.0 Device Port for Direct PC Control of Oscilloscope using USBTMC

Suite of Advanced Triggers

e*Scope® Remote Viewing and Control

Interoperability with Tektronix Logic Analyzers

TekVPI™ Probe Interface Supports Active, Differential and Current Probes for Automatic Scaling and Units

HDTV and Custom Video Trigger Option

Specifications
MSO4000 / DPO4000 Series
Ordering Information
Model	Description
DPO4032	350 MHz, 2.5 GS/s, 10 M record length, 2 channel digital phosphor oscilloscope
DPO4034	350 MHz, 2.5 GS/s, 10 M record length, 4 channel digital phosphor oscilloscope.
DPO4054	500 MHz, 2.5 GS/s, 10 M record length, 4 channel digital phosphor oscilloscope.
DPO4104	1 GHz, 5 GS/s, 10 M record length, 4 channel digital phosphor oscilloscope.
All Models Include:	One P6139A 500 MHz, 10x Passive Probe per Channel, Front Cover (200-4908-00), CompactFlash Memory Card; 32 MB (156-9413-00), User Manual, Documentation CD (063-3903-00), OpenChoice® Desktop Software, National Instruments SignalExpress Tektronix Edition Software, Calibration Certificate Documenting Traceability to National Metrology Institute(s) and ISO9001 Quality System Registration, Power Cord, Accessory Bag (016-1967-00), Three Year Warranty. Please specify power plug and manual version when ordering.
