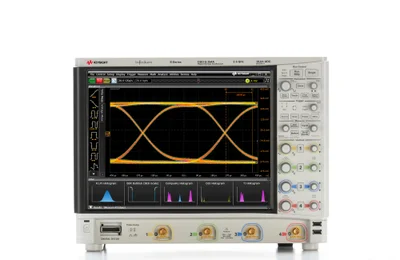

The DSOS254A S-Series oscilloscopes have 2.5 GHz of bandwidth, a 15” XGA capacitive touch screen, and a 10-bit analog-to-digital converter.
Infiniium S-Series oscilloscopes incorporate innovative technology designed to deliver superior measurements. Cutting edge hardware and a broad suite of software work together to give you unmatched measurement capability. Our 10- bit ADC and low-noise front-end work together to provide up to 8 GHz of performance with fantastic signal integrity. Improve noise performance even more using high resolution mode, which can achieve up to 16 bits of vertical resolution.
A vast selection of high-speed digital debug tools gives you the best troubleshooting and design tools available on the market. We put all of this in an advanced frame with a solid-state drive for fast boot-up, 15” capacitive touch display for ease of use, and a high-powered motherboard for fast processing. It’s all compatible with a myriad of Keysight probes and applications.
| Key Features |
| 2.5 GHz bandwidth (upgradable) |
| 4 analog channels |
| Achieve up to 16 bits of vertical resolution with our advanced system architecture |
| Capture a longer signal trace with 20 GSa/s max sample rate and 100 Mpts/channel of standard memory |
| Get superior signal integrity with an average system ENOB of 8.1 bits at full bandwidth |
| Gain increased usability with the multi-touch supported 15 inch capacitive touch screen and solid state drive for fast boot and reliability |
| Improve your testing with a wide range of protocol, compliance, and analysis software |
| Specifications |
|
| DSOS254A High-Definition Oscilloscope |
|
| Features | Parameters |
| Bandwidth | 2.5 GHz |
| Bandwidth Upgrades | n/a |
| Max Memory Depth | 800 Mpts (2 channels), 400 Mpts (4 channels) |
| Max Sample Rate | 20 GSa/s (2 channels), 10 GSa/s (4 channels) |
| Display Size | n/a |
| ADC Bits | 10 bits |
| Noise Floor | n/a |
| Effective Number of Bits (ENOB) | n/a |
| Operating System | n/a |
| Maximum Vertical Resolution | 16 bits |
S-Series
Specification
|
|
|
|
|
|
|
|
| Model | DSOS054A
MSOS054A
| DSOS104A
MSOS104A
| DSOS204A
MSOS204A
| DSOS254A
MSOS254A
| DSOS404A
MSOS404A
| DSOS604A
MSOS604A
| DSOS804A
MSOS804A
|
| Bandwidth (BW) | 500 MHz | 1 GHz | 2 GHz | 2.5 GHz | 4 GHz | 6 GHz (4) | 8 GHz (4) |
| 10/90% Rise Time (2) | 860 ps | 430 ps | 215 ps | 172 ps | 107.5 ps | 71.7 ps | 53.8 ps |
| Full BW ENOB (3) | 8.1 | 7.8 | 7.5 | 7.4 | 7.2 | 6.8 | 6.4 |
| Full BW Noise Floor (5) | 74 uV | 90 uV | 120 Uv | 130 uV | 153 uV | 195 uV | 260 uV |
| Sample Rate | 20 GSa/s on
2 channels
10 GSa/s on
4 channels
| 20 GSa/s on
2 channels
10 GSa/s on
4 channels
| 20 GSa/s on
2 channels
10 GSa/s on
4 channels
| 20 GSa/s on
2 channels
10 GSa/s on
4 channels
| 20 GSa/s on
2 channels
10 GSa/s on
4 channels
| 20 GSa/s on
2 channels
10 GSa/s on
4 channels
| 20 GSa/s on
2 channels
10 GSa/s on
4 channels
|
| Standard Memory | 100 Mpts/ch
upgradeable up to 400 Mpts/ch
| 100 Mpts/ch
upgradeable up to 400 Mpts/ch
| 100 Mpts/ch
upgradeable up to 400 Mpts/ch
| 100 Mpts/ch
upgradeable up to 400 Mpts/ch
| 100 Mpts/ch
upgradeable up to 400 Mpts/ch
| 100 Mpts/ch
upgradeable up to 400 Mpts/ch
| 100 Mpts/ch
upgradeable up to 400 Mpts/ch
|
| Vertical Resolution | 10 bits at
full bandwidth
up to
16 bits
in high resolution
| 10 bits at
full bandwidth
up to
16 bits
in high resolution
| 10 bits at
full bandwidth
up to
16 bits
in high resolution
| 10 bits at
full bandwidth
up to
16 bits
in high resolution
| 10 bits at
full bandwidth
up to
16 bits
in high resolution
| 10 bits at
full bandwidth
up to
16 bits
in high resolution
| 10 bits at
full bandwidth
up to
16 bits
in high resolution
|
| RF Noise Density (6) | -160 dBm/Hz | -160 dBm/Hz | -160 dBm/Hz | -160 dBm/Hz | -160 dBm/Hz | -160 dBm/Hz | -160 dBm/Hz |
| SFDR (7) | 72 dB | 72 dB | 72 dB | 72 dB | 72 dB | 72 dB | 72 dB |
| Display Size | 15” XGA Capacitive Touchscreen
VGA
Display Port for External Monitors
| 15” XGA Capacitive Touchscreen
VGA
Display Port for External Monitors
| 15” XGA Capacitive Touchscreen
VGA
Display Port for External Monitors
| 15” XGA Capacitive Touchscreen
VGA
Display Port for External Monitors
| 15” XGA Capacitive Touchscreen
VGA
Display Port for External Monitors
| 15” XGA Capacitive Touchscreen
VGA
Display Port for External Monitors
| 15” XGA Capacitive Touchscreen
VGA
Display Port for External Monitors
|
Notes:
1. DSO and MSO models have four analog channels. MSO models include 16 digital channels.
2. Calculation passed on 0.43/BW.
3. Measured at full bandwidth without high resolution mode enabled. Typical specification; not warranted.
4. 6 GHz and 8 GHz only possible when two channels are active. Four channel bandwidth is 4 GHz.
5. Measured at 2 mV/div at full oscilloscope bandwidth and sample rate, no high resolution.
6. Tested at 1 mV/div, -38 dBm, 1.0001 GHz CF, 500 kHz span, 3 kHz RBW.
7. Tested with 1 GHz, 0dBm signal at input, FFT with 3 GHz CF, 5 GHz span, 100 kHz RBW.
