Quick quote: Rohde & Schwarz CMW100 (1201.0002K03)

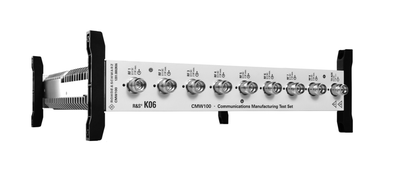

Rohde & Schwarz CMW100 (1201.0002K03)
Communications Manufacturing Test Set; 70 MHz to 3 GHz
Model
CMW100 (1201.0002K03)Product Family
Wireless CommunicationsManufacturer
Rohde & SchwarzConfigured models contain the following attributes:
Wireless CommunicationsWireless Handset TestConfigurations
Key Specs
Product Overview
Resources
Let us help you with your exact configuration
Please use 'Get Quick Quote' and we’ll contact you and quote for your exact need.
You can also get in touch, if you prefer, and our experts will be able to guide you with the right application and procurement solution for this product.
Key Specs
Please refer to the Resources section for Datasheets or see the Product Overview.
If you would like to know more, please get in touch and one of our team will be happy to help.
Product Overview
The 3 GHz Communications Tester for FR1 Bands - 5G, IoT, LoRa, BlueTooth, GNSS, WiLAN, Cellular
The R&S CMW100 communication manufacturing test set is a trendsetting product for calibrating and verifying wireless devices. The R&S CMW100 can perform receiver and transmitter tests for cellular and non-cellular technologies. The R&S CMW100 features high measurement accuracy as well as parallel testing, and can be used to optimize test time and capacity utilization.
The R&S CMW100 communications manufacturing test set is based on the CMW platform. The flexible RF interface permits simultaneous testing of up to eight RF ports. The R&S CMW100 remote control and measurement concepts are compatible with the R&S®CMW500. Both testers use the same methods for optimizing test time and capacity utilization. The CMW100 can be used to cost-effectively calibrate and verify wireless devices in non-signaling mode (analyzer/generator).
| Key Features |
| Continuous frequency range up to 6 GHz |
| Multitechnology solution |
| Parallel testing on up to eight RF ports |
| High measurement performance |
| High measurement accuracy |
| Support of a wide range of methods for reducing test time and maximizing capacity utilization |
| Minimum space requirements and footprint |
| Low weight |
| Silent |
| High MTBF |
| Benefits |
| High flexibility when designing production concepts thanks to horizontal or vertical mounting |
| Short implementation time and ramp-up phase thanks to R&S®CMW500 - Production Test compatible T&M and remote control concept |
| High accuracy and throughput thanks to fully automatic level correction |
| Eco-friendly due to minimal space requirements and low energy consumption |
| Platform Overview | |
CMW500 The all-in-one test platform | The R&S®CMW500 wideband radio communication tester is the universal test platform for RF integration and protocol development. The R&S®CMW500 includes a fully integrated end-toend (E2E) data solution that permits comprehensive IP throughput and quality measurements. The R&S®CMW500 can be used in all phases – from product development to production to service. It is the solution with the widest range of supported technologies. |
CMW270 The expert for all non-cellular technologies | The R&S®CMW270 wireless connectivity tester is a cost-effective alternative for development, production and service. The non-cellular specialist offers features comparable to those of the R&S®CMW500. It supports Bluetooth®, WLAN and broadcast technologies. |
CMW290 The compact RF tester for basic functional tests | The R&S®CMW290 functional radio communication tester is the cost-effective compact version of the R&S®CMW500. The tester is the right instrument for users who need to measure fundamental RF characteristics or verify the functionality of wireless devices. The R&S®CMW290 provides service companies with a high-quality, customized, automated test environment for functional input and output tests. Powerful network emulation allows IoT/M2M system integrators to functionally test module integration and custom IP applications. |
CMX500 The 5G NR signaling tester | The R&R®CMX500 radio communication tester is the test platform for signaling tests in all 5G frequency bands: sub6 GHz (FR1) and mmWave (FR2). In non-standalone (NSA) mode, the R&S®CMW500 supports legacy technologies in mixed operation with LTE. |
CMP200 The mmWave (FR2) production tester | The R&S®CMP200 radio communication tester consists of a vector signal analyzer and a generator for RF frequencies from 4 GHz to 20 GHz. Together with the R&S®CMPHEAD30 remote radio head up/downconverter for the higher frequency ranges (mmWave), it forms a compact non-signaling test platform for production testing of 5G FR2 products. |
CMW100 The sub6 GHz (FR1) RF tester for production | The R&S®CMW100 communications manufacturing test set is based on the R&S®CMW platform. The flexible RF interface permits simultaneous testing of up to eight RF ports. The R&S®CMW100 remote control and measurement concepts are compatible with the R&S®CMW500. Both testers use the same methods for optimizing test time and capacity utilization. The R&S®CMW100 can be used to cost-effectively calibrate and verify wireless devices in non-signaling mode (analyzer/generator). |
| Specifications | ||
| CMW100 communications manufacturing test set | ||
| Ordering Information | ||
| Model | Order Number | Description |
| CMW100 | 1201.0002K03 | Communications manufacturing test set |
| CMW-PS10 | 1210.7606.02 | Hardware kit |
| DCV-2 | 0240.2193.08 | Documentation of calibration values |
| CMW-PK461 | 1210.7129.02 | Extended frequency range, 4 GHz to 6 GHz |
| CMW-PKM121 | 1210.7164.02 | GSM WCDMA, TX measurements, UL |
| CMW-PKM151 | 1210.7187.02 | LTE, TX measurements, UL |
| CMW-PKM171 | 1210.7206.02 | TD-SCDMA, TX measurements, UL |
| CMW-PKM181 | 1210.7229.03 | CDMA2000® 1xEV-DO, TX measurements, DL |
| CMW-PKM611 | 1210.7264.02 | Bluetooth® BR EDR LE, TX measurements (SL) |
| CMW-PKM651 | 1210.7287.02 | WLAN 802.11 a/b/g/n/ac, TX measurements (SL) |
| CMW-PKV191 | 1210.7306.03 | waveforms for ARB generator |
Note:
The R&S®CMW100 communications manufacturing test set can be operated only in combination with a standard computer, which is not included. The required R&S®CMW100 software must be installed on the computer. It can be downloaded free of charge or ordered as an accessory (R&S®CMW100-Z31).
