Quick quote: Keysight Technologies P5004B

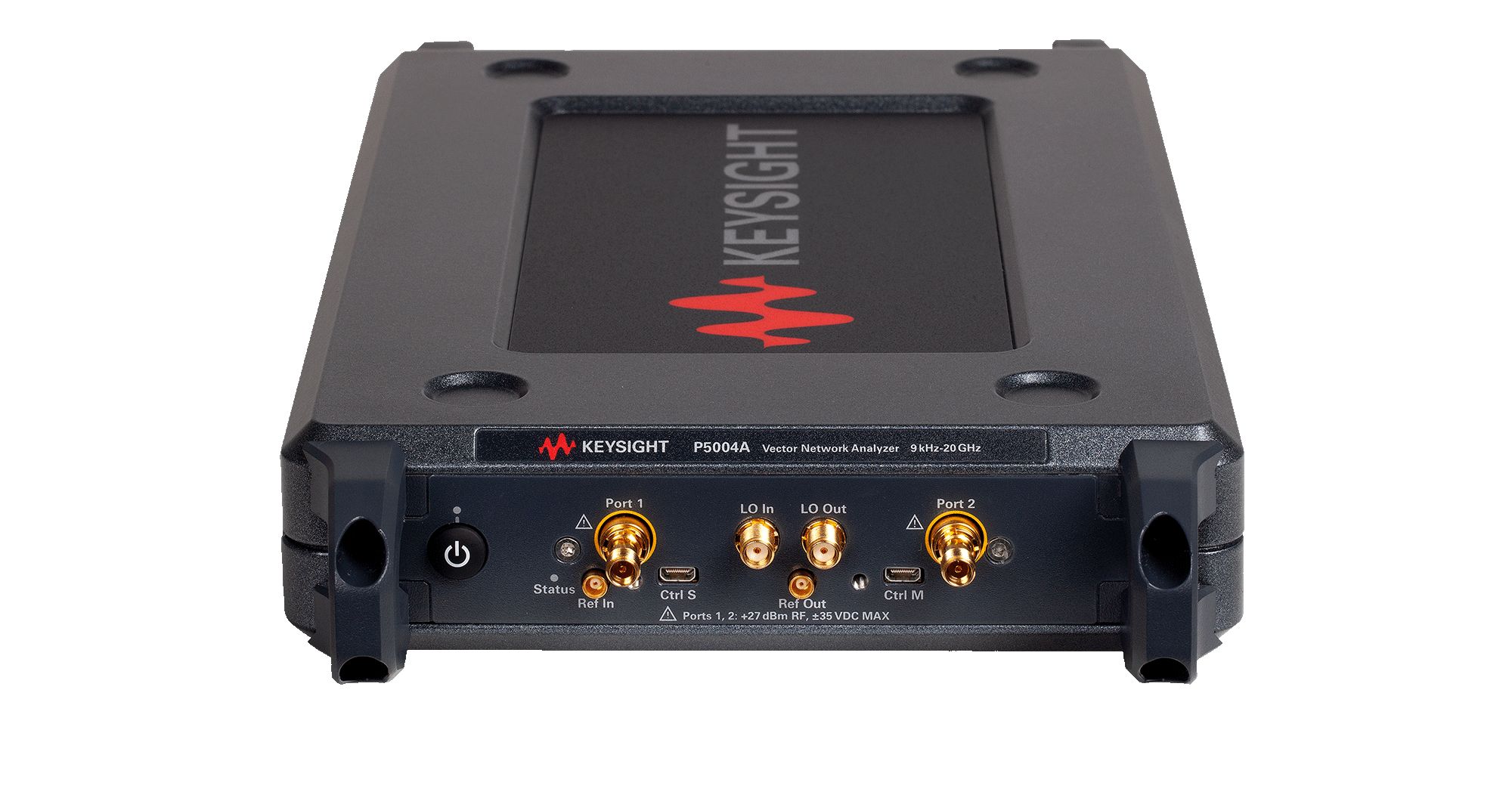

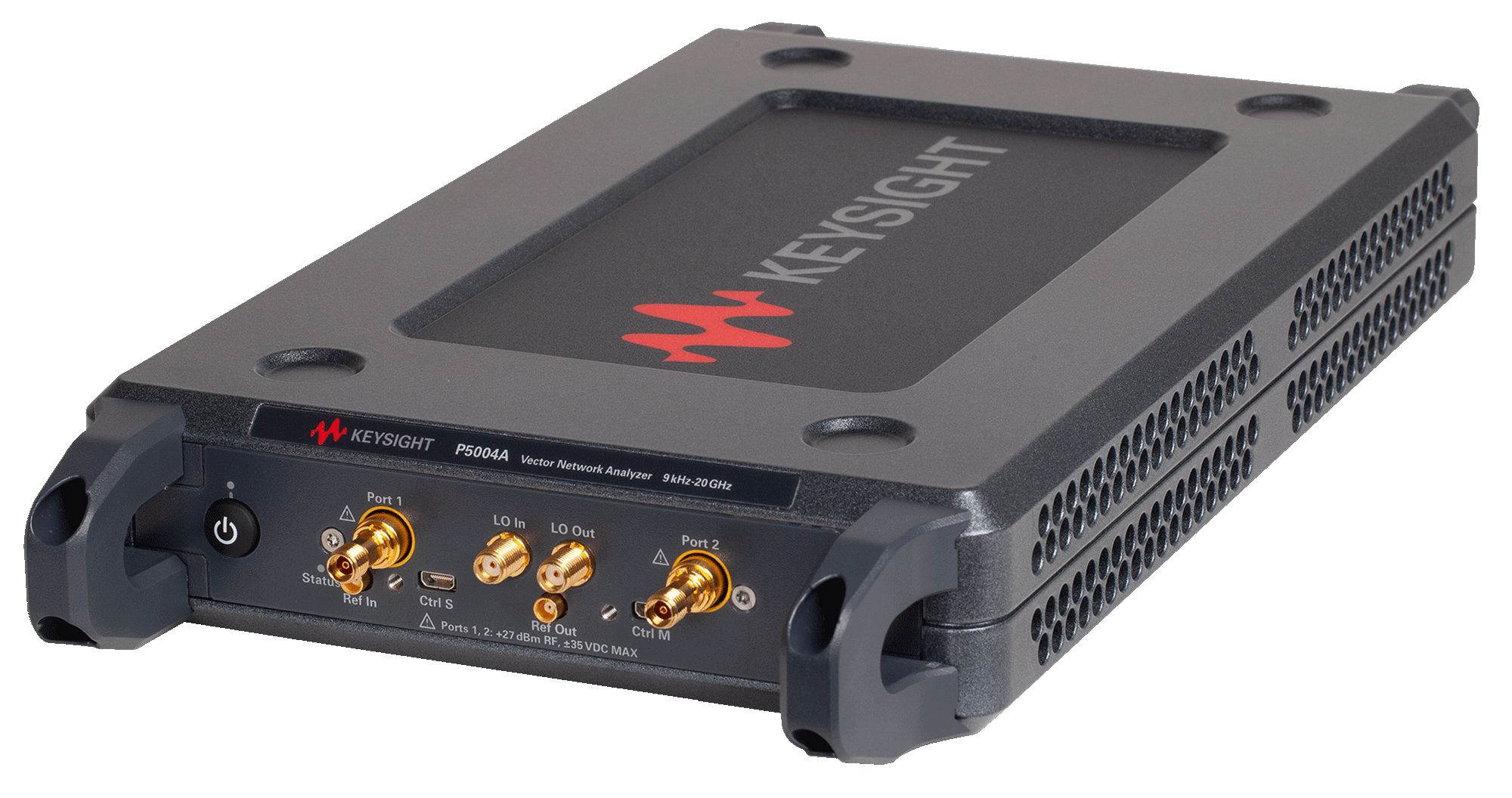

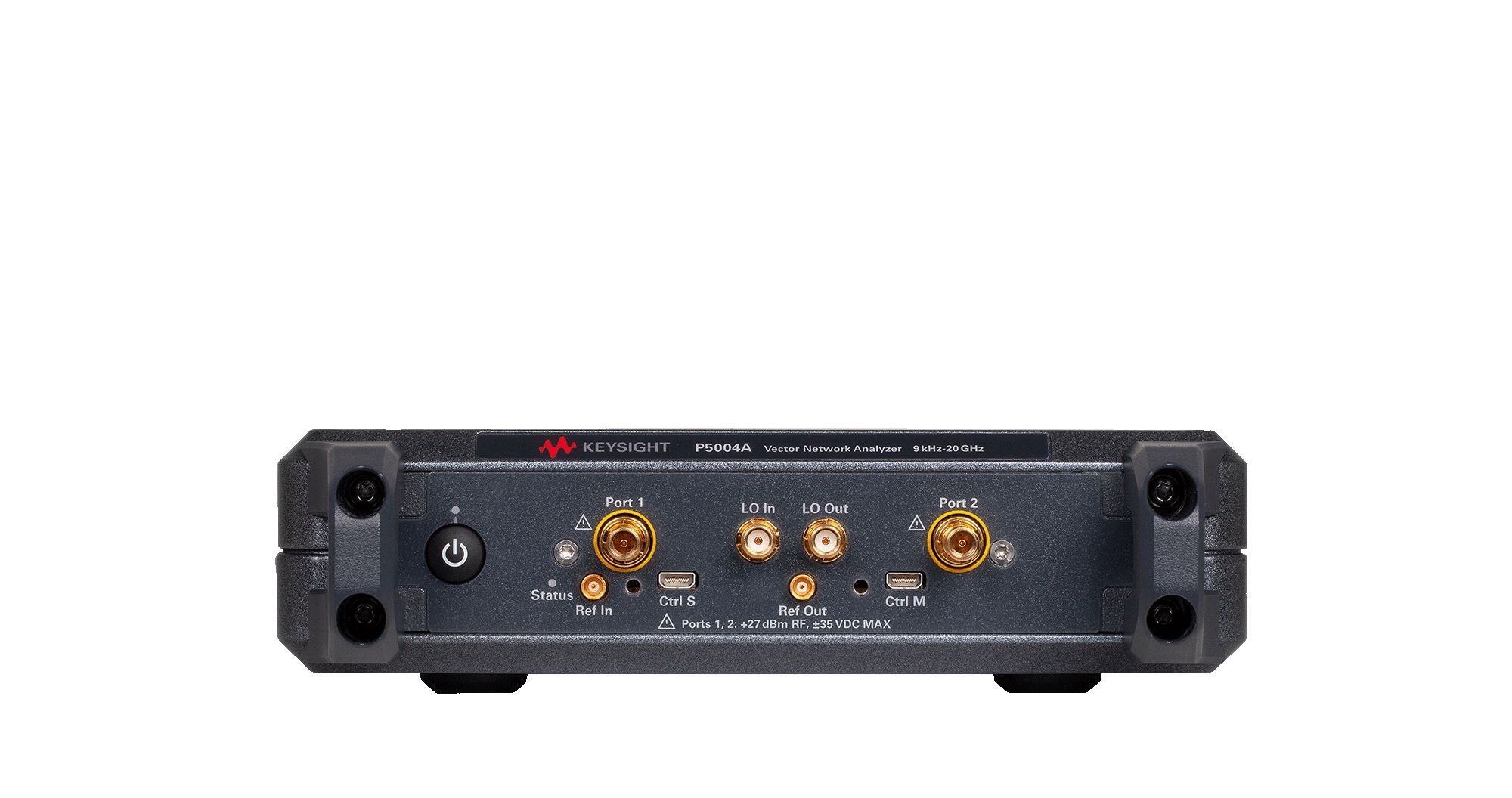

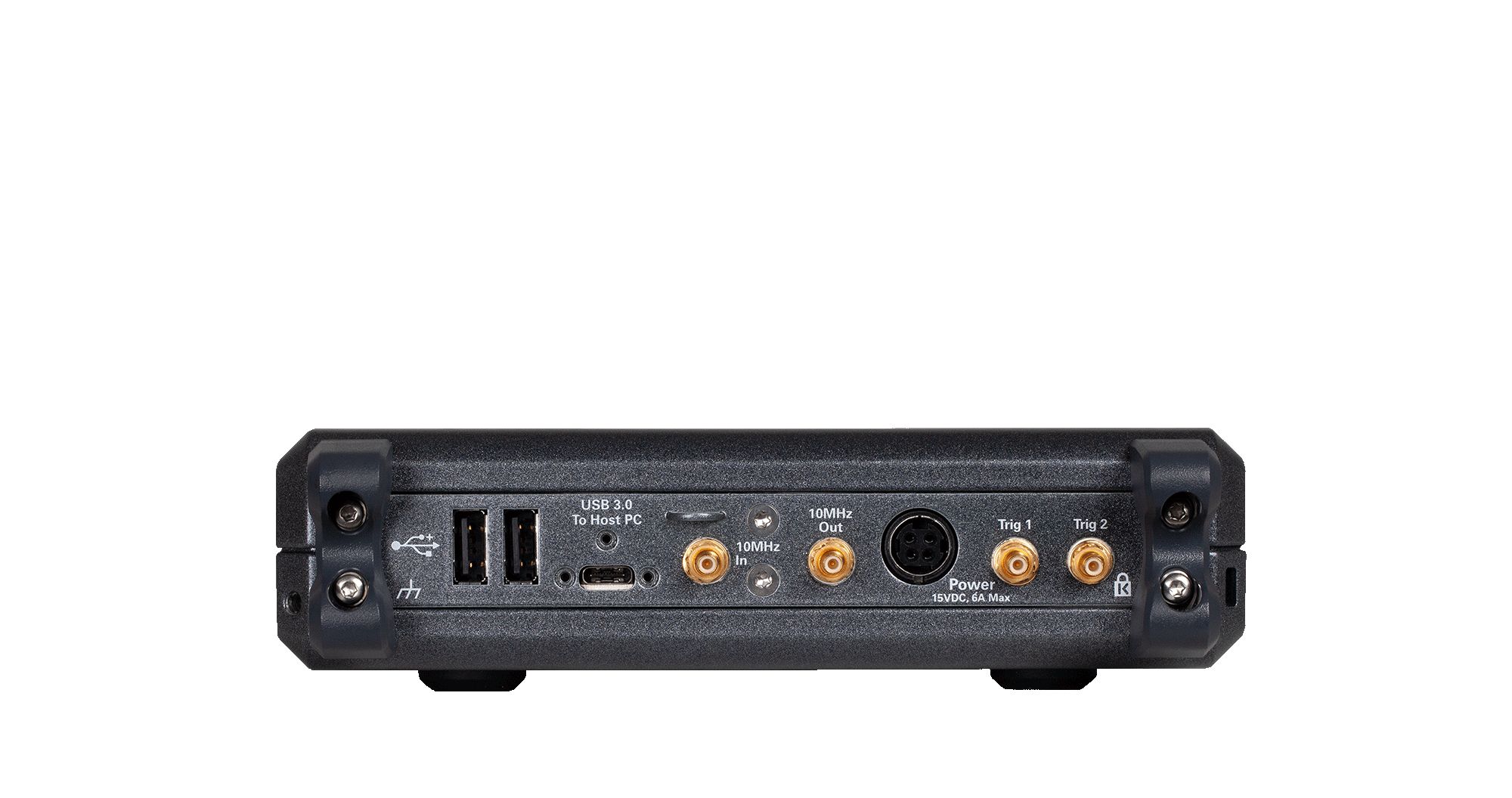

Keysight Technologies P5004B
Streamline Vector Network Analyzer; 2 Port, 9 kHz to 20 GHz
Model
P5004BProduct Family
RF & Microwave Network AnalyzersManufacturer
Keysight TechnologiesConfigured models contain the following attributes:
RF & Microwave Network AnalyzersNetwork Analyzers <20GHz20GHz <= 50GHz1kHz <= 100kHzConfigurations
Key Specs
Product Overview
Resources
Let us help you with your exact configuration
Please use 'Get Quick Quote' and we’ll contact you and quote for your exact need.
You can also get in touch, if you prefer, and our experts will be able to guide you with the right application and procurement solution for this product.
Key Specs
Indicates attributes available at part level. See Configurations tab for part detail.
| Attribute | Value |
|---|---|
| High Frequency (range) | 20GHz <= 50GHz |
| Low Frequency (range) | 1kHz <= 100kHz |
Product Overview
Compact, faceless, vector network analyzer (VNA). Flexible two-port VNA dramatically reduces your size of test. Up to 20 GHz.
The freedom of portable network analysis doesn’t have to mean a compromise in performance. The B-models of the Keysight Streamline Series VNAs unlock the full performance of the network analyzer hardware with fast measurements over Thunderbolt 3 connections to your host PC. Gain confidence in your measurements with best-in-class performance offering fast, reliable, and repeatable results. Explore the complete characterization of your devices with a rich portfolio of software applications that transform the compact network analyzer into a complete RF measurement solution.
The P50xxB series offers the performance required for testing passive components, amplifiers, mixers or frequency converters. The vector network analyzer (VNA) provides best-in-class key specifications such as dynamic range, measurement speed, trace noise and temperature stability. Choose from 2- or 4-port models up to 53 GHz, or 6-port models up to 20 GHz.
The Streamline Series utilizes the same measurement science as other Keysight VNAs such as the PNA, ENA and PXI VNA. A common software platform makes it easy to choose the right level of performance to match budget and measurement needs. This commonality guarantees measurement consistency, repeatability, and a common remote-programming interface across multiple instruments in R&D and manufacturing
| Key Features |
| 2-port, 100 kHz to 53 GHz |
| Improve throughput with fast Thunderbolt 3 interface |
| Choose from a wide range of measurement applications to gain deeper insight into your component tests |
| Share the portable VNA with other teams and locations |
| Extend the number of test ports by cascading two VNAs |
| Measure with the same GUI, SCPI commands, and measurement science as Keysight’s trusted high-performance VNAs |
| Calibrate quickly with Keysight Electronic Calibration (ECal) modules |
| Upgrade your hardware with high performance-enabling software |
| Keep your instrument up to date with VNA activation software |
| Specifications | |
Streamline Series Vector Network Analyzer (B-models) | |
| Feature | Parameter |
| System IF Bandwidth Range | P9370B to P9377B: 1 Hz to 700 kHz P9382B: 1 Hz to 700 kHz P9384B: 1 Hz to 700 kHz P5000B to P5008B: 1 Hz to 15 MHz P5020B to P5028B: 1 Hz to 15 MHz |
| Number of Points | 1 to 100,003 |
| PC System Requirement | Operating Systems: Windows 10 (64-bit) Available Memory: 16 GB recommended, 4 GB minimum Available Disk Space: 4 GB minimum Display Resolution: 1024 x 768 minimum Connection with VNA: Thunderbolt 3 and Thunderbolt 4 Recommended CPU: Intel Core i7 10th Generation or later recommended |
| Instrument Drivers | Keysight IO Libraries: Keysight IO Libraries Suite 2022 Update 1 (18.2.28014.7) or later |
| Temperature | Operating: 0 to 50 °C ambient 10 to 70 °C instrument temperature Non Operating: -40 to 70 °C |
| Humidity | Operating: Type tested at 20 to 80 %, wet bulb temperature < 29 °C (non-condensing) Non Operating: Type tested at 20 to 90 %, wet bulb temperature < 40 °C (non-condensing) |
| Altitude | Operating: Up to 2,000 meters (6,561 feet) Non Operating: Up to 4,572 meters (15,000 feet) |
| Vibration | Operating: 0.3 G maximum, 5 Hz to 500 Hz Non Operating: 0.75 G maximum, 5 Hz to 500 Hz |
| Instrument Protection | IP 30 IEC/EN 60529 |
| Warm up Time | 60 minutes |
| Specifications | |||
| P500xB Series | |||
| Model Overview | |||
| Model ¹ | Description | Ports | Test Port Connectors |
| P5000B | 9 kHz to 4.5 GHz | 2 | 3.5 mm (f) |
| P5001B | 9 kHz to 6.5 GHz | 2 | 3.5 mm (f) |
| P5002B | 9 kHz to 9 GHz | 2 | 3.5 mm (f) |
| P5003B | 9 kHz to 14 GHz | 2 | 3.5 mm (f) |
| P5004B | 9 kHz to 20 GHz | 2 | 3.5 mm (f) |
| P5005B | 100 kHz to 26.5 GHz | 2 | 3.5 mm (f) |
| P5006B | 100 kHz to 32 GHz | 2 | 2.4 mm (f) |
| P5007B | 100 kHz to 44 GHz | 2 | 2.4 mm (f) |
| P5008B | 100 kHz to 53 GHz | 2 | 1.85 mm (f) |
| Specifications | |||
| P937xB Series | |||
| Model Overview | |||
| Model ¹ | Description | Ports | Test Port Connectors |
| P9370B | 9 kHz to 4.5 GHz | 2 | 3.5 mm (f) |
| P9371B | 9 kHz to 6.5 GHz | 2 | 3.5 mm (f) |
| P9372B | 9 kHz to 9 GHz | 2 | 3.5 mm (f) |
| P9373B | 9 kHz to 14 GHz | 2 | 3.5 mm (f) |
| P9374B | 9 kHz to 20 GHz | 2 | 3.5 mm (f) |
| P9375B | 100 kHz to 26.5 GHz | 2 | 3.5 mm (f) |
| P9377B | 100 kHz to 44 GHz | 2 | 2.4 mm (f) |
| Specifications | |||
| P938xB Series | |||
| Model Overview | |||
| Model ¹ | Description | Ports | Test Port Connectors |
| P9382B | 9 kHz to 9 GHz | 4 | 3.5 mm (f) |
| P9384B | 9 kHz to 20 GHz | 4 | 3.5 mm (f) |
| Specifications | |||
| P502xB Series | |||
| Model Overview | |||
| Model ¹ | Description | Ports | Test Port Connectors |
| P5020B | 9 kHz to 4.5 GHz | 4 or 6 | 3.5 mm (f) |
| P5021B | 9 kHz to 6.5 GHz | 4 or 6 | 3.5 mm (f) |
| P5022B | 9 kHz to 9 GHz | 4 or 6 | 3.5 mm (f) |
| P5023B | 9 kHz to 14 GHz | 4 or 6 | 3.5 mm (f) |
| P5024B | 9 kHz to 20 GHz | 4 or 6 | 3.5 mm (f) |
| P5025B | 100 kHz to 26.5 GHz | 4 | 3.5 mm (f) |
| P5026B | 100 kHz to 32 GHz | 4 | 2.4 mm (f) |
| P5027B | 100 kHz to 44 GHz | 4 | 2.4 mm (f) |
| P5028B | 100 kHz to 53 GHz | 4 | 1.85 mm (f) |
Note:
¹ The B-models of Keysight Streamline Series VNAs include:
Thunderbolt 3 cable assembly for connection with a host PC (800-mm, P/N: 8121-3588)
Power Supply (external AC-DC adapter.
P/N: 0950-6128 for P937xB/P500xB
P/N: 0950-6166 for P938xB/P502xB)
Power Cord
