Quantifi Photonics OSA-1004-1-FC-MTRQ

Accurate measurement of optical spectrum without artifacts:

Good dynamic range

High optical throughput

High spectral resolution

High wavelength accuracy.

Choose the model that meet your requirements and pay for only the capabilities you need.

OSA can also be customized to other customer specified wavelength range.

CohesionUI makes it simple to control the OSA from your PC or mobile device.

Its cutting edge design offers  a sleek modern interface, cross device compatibility, customizable views and remote network access.

PXIe

Modular

Our expanding range of PXIe optical test solutions are used by customers in mixed-signal test and measurement systems, reducing complexity, lowering the cost of test and accelerating time to market.

Features:

Multi vendor, open standard with over 2500 PXI modules available.

Advanced timing and synchronization capabilities across instruments.

Low latency, high performance processing and fast data throughput.

Design and build scalable, high channel count systems.

Small footprint and lower power consumption

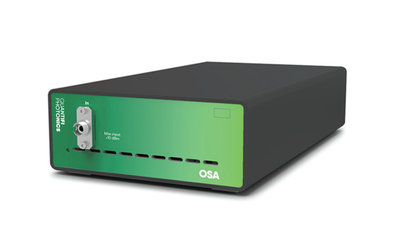

MATRIQ

Compact and Portable

The MATRIQ series provides the same high-performance test capabilities of our PXIe modules in an compact benchtop design. MATRIQ instruments are simple to setup and easy to operate, making them the perfect choice for your optical lab or test bench.

Features:

Same performance and control as our PXIe modules.

Plug and play with USB or Ethernet connectivity.

Control via the web-based GUI, COHESIONUI or SCPI commands.

Compact and portable design saves benchtop space

1000 Series

Optical Spectrum Analyzer

FC/PC

FC/APC

SC/PC

SC/APC

FC/PC

FC/APC

SC/PC

SC/APC

130 x 40 x 215 mm

5.1 x 1.6 x 8.5 inches

53 x 120 x 202 mm

2.1 x 4.7 x 8.0 inches

~ 1 kg

~ 2.2 lbs

~ 1.1 kg

~ 2.4 lbs

5 °C to 45 °C

41 °F to 113 °F

5 °C to 45 °C

41 °F to 113 °F

-40 °C to 70 °C

-40 °F to 158 °F

-40 °C to 70 °C

-40 °F to 158 °F
