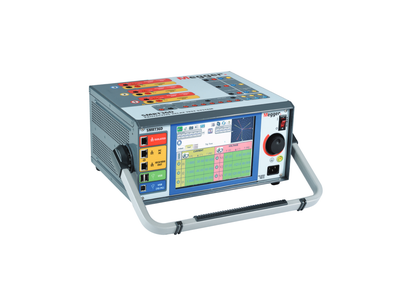

Megger SMRT36D

The SMRT36D is a multipurpose, light-weight, field portable test set capable of testing a wide variety of electro-mechanical, solid-state and microprocessor-based protective relays, motor overload relays and similar protective devices. The unit can be operated either manually via the built-in touchscreen user interface, or placed under full computer control via the Advanced Visual Testing Software™ (AVTS), or the Smart Touch-View Interface™ (STVI) software running on a PC. The STVI, is Megger’s second generation of automatic / semiautomatic manual user interface software. It incorporates a large, easy to read Full Color high resolution, high definition, TFT LCD touch-screen display, which displays metered values such as AC and DC Amperes, AC and DC Volts, and Time in both seconds and cycles. Depending on the type of test selected, other values may be displayed, such as Phase Angle, Frequency, Ohms, Watts, VA, or Power Factor.

Key Features:

• New Integrated Smart Touch View Interface (STVI)
• Multi-colored graphics with intuitive navigation
• Enhanced dynamic test capabilitie
• Built-in test report generator
• New high current output - 60 Amps at 300 VA per phase
• Improved low current accuracy . currents below 100 mA
• New convertible voltage channels . 15 Amps at 120 VA
• Dynamic, Transient and GPS Satellite Synchronized End-to-End Testing Capability
• IEC 61850 Testing Capability
