Quick quote: EXFO FTB-880-FLEX
EXFO FTB-880-FLEX
Modular Test Kit; 10GigE SONET SDH PDH
Model
FTB-880-FLEXProduct Family
Telecommunication Transmission TestersManufacturer
EXFOConfigured models contain the following attributes:
Telecommunication Transmission TestersTransmission Tester Portable up-to 10GBitHandheldModularConfigurations
Key Specs
Product Overview
Resources
Let us help you with your exact configuration
Please use 'Get Quick Quote' and we’ll contact you and quote for your exact need.
You can also get in touch, if you prefer, and our experts will be able to guide you with the right application and procurement solution for this product.
Key Specs
Indicates attributes available at part level. See Configurations tab for part detail.
| Attribute | Value |
|---|---|
| Form Factor | Handheld |
| Form Factor | Modular |
Product Overview
The ongoing transition toward a converged network infrastructure for legacy DSn/PDH, ISDN, SONET/SDH, OTN and Fibre Channel, requires a test tool that can cover a wide range of interfaces and rates—without sacrificing portability, speed or cost.

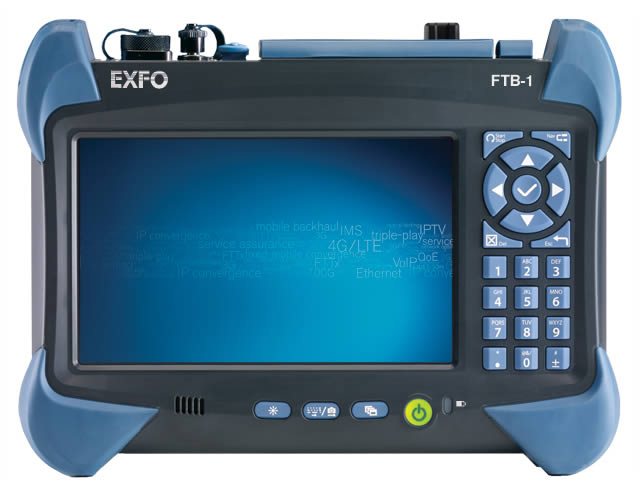

Leveraging the powerful, intelligent FTB-1 Pro handheld platform, the NetBlazer V2 Series streamlines processes and empowers field technicians to test and validate DSn/PDH, ISDN, SONET/SDH, OTN, Fibre Channel, common public radio interface (CPRI) and packet-based high-speed Ethernet services efficiently.
Housed in the FTB-1 Platform, the FTB-880 offers comprehensive, yet simple test suites for field technicians to easily turn up, validate and troubleshoot DSn/PDH, ISDN, SONET/SDH, OTN, CPRI/OBSAI and SyncE/1588 PTP services at up to 11.3 Gbit/s.Modular Test Kit 10GigE SONET SDH PDH.
| Key Features |
| Comprehensive testing for DSn/PDH, ISDN, SONET/SDH, OTN, Fibre Channel (1x-16x), CPRI and Ethernet interfaces up to 100 Gbit/s |
| iSAM intelligent service activation methodology, based on the ITU-T Y.1564 and RFC 6349 standards, simplifies and speeds up Ethernet service activation |
| RFC-6349 testing: 10M-100G multisession TCP testing with bidirectional results |
| Pluggable CFP4 and QSFP28 optics to facilitate the testing of next-generation networks, and QSFP+ interface for 40GigE |
| Dual-port or quad-port testing up to 10G WAN and LAN, allows technicians to run up to four simultaneous tests |
| FTTA/C-RAN validation from 1.2 Gbit/s to 9.8 Gbit/s via layer-2 CPRI protocol and unframed BER testing |
| Real-time, high-resolution radio frequency (RF) spectrum analysis using digitized RF data (IQ data) in the CPRI link |
| Carrier Ethernet OAM testing covering the Y.1731, G.8113.1 (MPLS-TP), MEF and 802.1ag and IEEE 802.3ah Link OAM standards |
| Ethernet service activation with EtherSAM (ITU-T Y.1564) service configuration and performance tests, complemented by Remote Discovery, Smart Loopback and Dual Test Set capabilities |
| Ultra-powerful processing backed by quad-core FTB platform with Windows 8.1 Professional operating system, providing access to many third-party apps and the ability to connect to a wide range of devices |
| Specifications | |
| FTB Model Overview | |
| Model | Description |
| FTB-890 NetBlazer (tests up to 100G) | The FTB-890 NetBlazer is the entry level 10M to 100G tester that covers a wide range of technologies including OTN, SONET/SDH, CPRI and Fibre Channel. |
| FTB-890NGE NetBlazer (tests up to 100G) | The FTB-890NGE NetBlazer is the most comprehensive all-in-one tester, including testing for legacy networks at 64K up to next-generation networks at speeds of 100G. |
| FTB-880v2 NetBlazer (tests up to 10G) | The FTB-880v2/870v2 NetBlazer are the field technician’s go-to solution covering all things 10G. Fully loaded Ethernet testing includes iSAM and RFC 6349 with GigE and 10 GigE dual ports, as well as OTN, SONET/SDH, DSn/PDH, ISDN PRI, fiber-to-the-antenna (FTTA), Fibre Channel and packet synchronization. |
| FTB-880Q NetBlazer (tests up to 10G) | Double up everything the FTB-880v2 has to offer and you get the NetBlazer FTB-880Q. The FTB-880Q is designed for maximum field technician efficiency through accelerated processes running up to four simultaneous tests, as well as completely independent tests with zero restrictions. The FTB-880Q/870Q are the only handheld testers offering quad-port GigE and quad-port 10 GigE. |
| Specifications | |||||||
| Netblazer Modules | |||||||
| Transport Only | Transport Only | Loopback Only | Ethernet Only | Ethernet Only | Multiservice | Multiservice | |
| Modules | FTB-810 | FTB-810G | FTB-860GL | FTB-860 | FTB-860G | FTB-870 | FTB-880 |
| DSn/PDH testing | • | • | • | ||||
| ISDN (PRI) | • | • | • | ||||
| SONET/SDH testing (2.5G) | • | • | • | • | |||
| SONET/SDH testing (10G) | • | • | • | ||||
| OTN | • | • | |||||
| Fibre Channel (1x, 2x, 4X) | • | • | • | • | |||
| Fibre Channel (8x, 10X) | • | • | • | ||||
| Ethernet testing (1G) | • (1) | • | • | • | • | ||
| Ethernet testing (10G) | • (1) | • | • | • | |||
| OBSAI 3.1G | • | • | • | • | |||
| 1588 PTP / SyncE | • | • | • | • | |||
| Carrier Ethernet OAM | • | • | • | • | |||
| ExacTCP | • | • | • | • | |||
| Packet Capture/Filters | • | • | • | • | |||
| CPRI 1.2G to 6.1G | • | • | • | • | |||
| CPRI 1.2G to 9.8G | • | • | • |
Note:
(1) Simultaneous bidirectional loopback partner
| Specifications | ||||||
| Model Overview | ||||||
| Model | FTB-870V2 | FTB-880V2 | FTB-870Q | FTB-880Q | FTB-890 | FTB-890NGE |
| DSn/PDH (DS1/E1, ISDN PRI) | Y | Y | Y | Y | Y | |
| DSn/PDH (DS1/DS3, E1, E3, E4) | Y | Y | Y | |||
| Ethernet testing (10G and below) | Y | Y | Y | Y | Y | Y |
| Ethernet testing (40/100G) | Y | Y | ||||
| OTU1/OTU2 and over-clock rates | Y | Y | Y | Y | Y | Y |
| OTU3/OUT4 and over-clock rates | Y | Y | ||||
| SONET/SDH (up to 10G) | Y | Y | Y | Y | Y | Y |
| SONET/SDH (electrical) | Y | Y | Y | |||
| Fibre Channel (1x, 2x, 4x, 8x,10x) | Y | Y | ||||
| Fibre Channel (16x) | Y | Y | ||||
| 1588 PTP/SyncE | Y | Y | Y | Y | Y | Y |
| Carrier Ethernet OAM | Y | Y | Y | Y | Y | Y |
| RFC 6349 (up to 10G TCP) | Y | Y | Y | Y | Y | Y |
| RFC 6349 (40G and 100G TCP) | Y | Y | ||||
| ExacTCP (up to 1G TCP) | Y | Y | Y | Y | Y | Y |
| CPRI (1.2G up to 9.8G) | Y | Y | Y | Y | Y | Y |
| RF spectrum analysis over CPRI links | Y | Y | Y | Y | Y | |
| Dual-Port testing (up to 10G) | Y | Y | Y | Y | Y | |
| Dual-Port testing (40G/100G) | Y | Y | ||||
| Quad-port testing | Y | Y | ||||
| Simultaneous transport/datacom testing | Y | Y |
