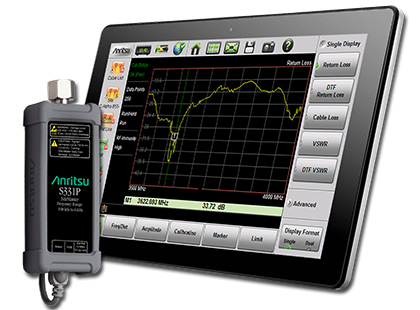

The S331P is an ultraportable version of the industry-leading Site Master Series of Cable and Antenna Analyzers. It is the smallest, lightest, fastest, and most cost effective instrument in the Site Master family. No battery is required, since the USB port of Windows 7, 8 & 10 tablet devices, laptops or desktop PCs power it. Available with two frequency ranges starting from 150 kHz up to 4 GHz and 150 kHz to 6 GHz, it is the only small headless Site Master product capable of measurements down to 150 kHz for low frequency radio communications applications and up to 6 GHz for higher frequency applications like LTE-U in the 5 GHz unlicensed spectrum.
The most trusted, reliable, and preferred cable and antenna analyzer The S331P is the lightest, smallest and fastest Site Master ever. Addressing the market need for broad frequency coverage and high performance in an extremely compact and economical design, the S331P provides wireless operators and contractors, DAS installers, and public safety network installers and maintenance professionals with the first pocket-sized headless cable and antenna analyzer that can measure the new LTE-U frequencies. Smallest, lightest, and fastest Site Master.
| Key Features |
| Direct connection to DUTs eliminating the need for phase stable cables |
| Powered through USB interface (No battery required) |
| Rugged and reliable |
| Impact, dust and splash resistant |
| Factory default 1-Port ReadyCal (automatically applied to all measurements except Transmission) |
| Compatible with Anritsu Software tools including easyTest™ Tools |
| Easy to Use |
| Same user interface as the S331L |
| Integrated Help function |
Site Master Classic Mode:
The Site Master S331P offers a convenient Classic Mode that is easy to use. Current customers with other Site Master models will find Classic Mode familiar and easy to use.
|
Site Master Advanced Mode:
The Site Master S331P also offers a mode with more capability called Advanced Mode. Advanced Mode has a much more modern look and feel to it, and many users will immediately appreciate the new Advanced Mode GUI’s button layout and functionality. With Advanced Mode, users also get some extra capabilities such as 8 markers instead of 6 and 6 customizable touch screen icons for quick recalling of regularly used setups, making operation easier and more efficient.
|
| Efficient Sweep Management |
Store multiple file formats;
Sweeps, setups, screenshots
|
| Fast preview of stored sweeps |
Line Sweep Tools (LST) Software;
Edit sweeps, rename, archive
Generate PDF or HTML reports
|
| Standard *.dat sweep file format |
Compatible with HHST;
Widely accepted by operators
|
| Specifications |
|
| Site Master™ S331P Ultraportable Cable & Antenna Analyzer |
|
| Model Overview |
|
| Model | Description |
| S331P | Cable and Antenna Analyzer
(requires one frequency option)
|
| Frequency Options |
|
| S331P-0704 | 150 kHz to 4 GHz |
| S331P-0706 | 150 kHz to 6 GHz |
