The Anritsu MU104014A Multirate Module is usually configured with the MT1040A mainframe. Check the configuration screen to verify a configuration with a mainframe.

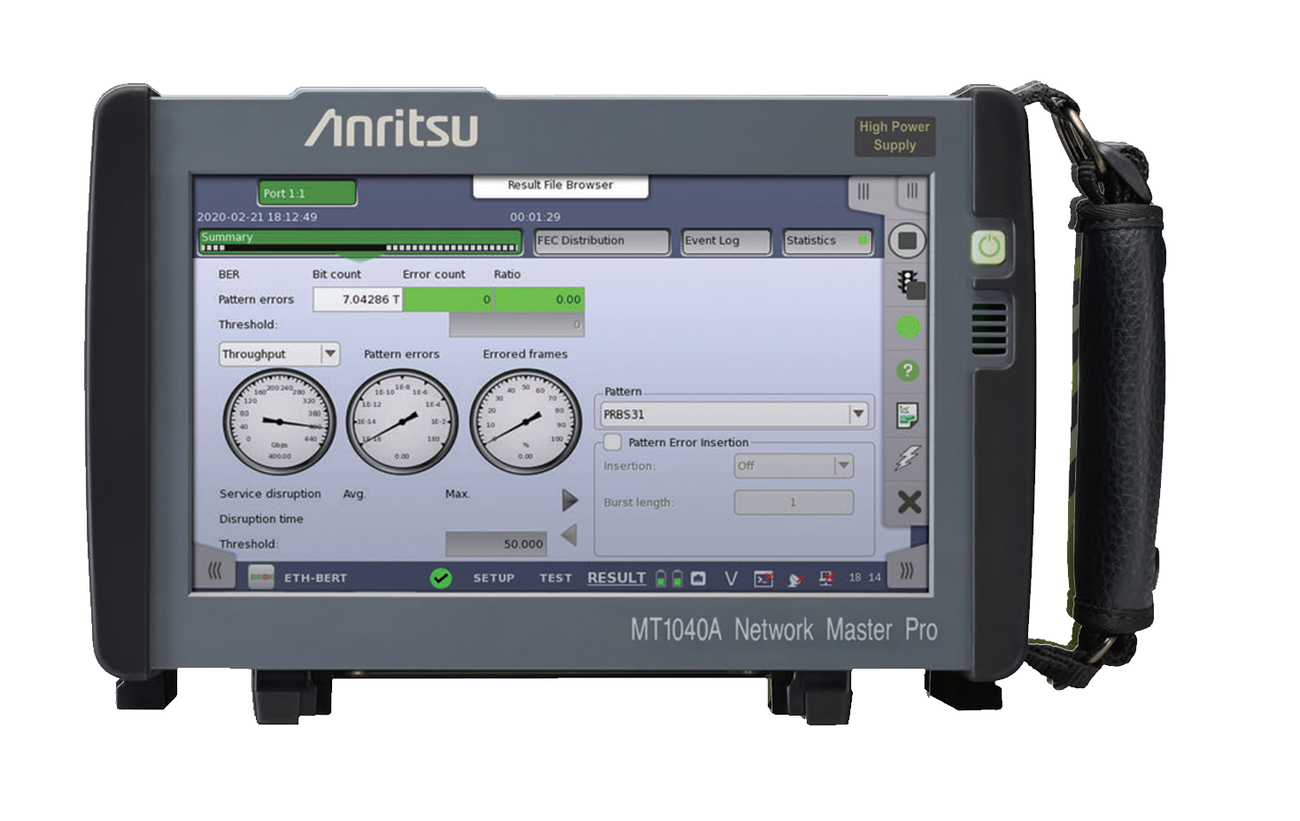

The portable B5-size Network Master Pro MT1040A for 400G has customized expandability with easy operation. Installing the OTDR measurement module supports optical fiber continuity tests.
The MT1040A supports networks ranging from 10M to 400G speeds. To assure and improve network quality, operators perform periodic equipment upgrades and maintenance, so they prefer measuring instruments with a variety of interfaces to help assure efficient work in the shortest time.
With multiple protocols, the all-in-one Network Master Pro supports various network types.
| Supported Interfaces |
| Ethernet: 10M/100M/1000M, 10G/25G/40G/100G/200G, 400G |
| OTN/SDH/SONET: 2.5G/10G/40G/100G |
| Mobile back/fronthaul: eCPRI/RoE/CPRI/OBSAI |
| Fibre Channel: 1GFC to 16GFC |
The Network Master Pro MT1040A for 400G networks is a handheld portable instrument for evaluating the communications quality of various networks operating at speeds between 10 Mbps and 400 Gbps. 400G Ethernet uses Forward Error Correction (FEC), which requires FEC evaluation. With a built-in FEC analysis function for 400G Ethernet, the MT1040A is ideal for quality evaluation of QSFP-DD and OSFP optical modules and devices, as well as for network performance evaluation.
| Key Features |
| One unit supports all transport-network field tests |
| Easy-to-use portable semi-B5 size case with easy-to-read 9-inch touch screen |
| Measurement automation-support tools for efficient one-button execution of difficult tests |
| For evaluating both 400 GbE dual-port and 100 GbE 4-port equipment* |
Note:
* Requires two units each of MT1040A-020 and MU10401xA
| Benefits |
|
| The full range of built-in versatile MT1040A functions make field testing easy | Intuitive operation using large 9-inch color touch panel
400G Dual Ports Measurements (Option)
SEEK function supporting fast, automated, on-site installation and maintenance test procedures
Remote-controlled, long-term continuity testing using VNC
Wireless control over WLAN*1
Optical fiber end-face condition inspection using dedicated Fiberscope
Stable Linux OS based test environment *2
User measurement module retrofitting
|
Notes:
*1 Optional depending national and regional rules
*2 Regarding source program
| Specifications |
|
| MT1040A Mainframe |
|
| Model Overview |
|
| Model | Description |
| MT1040A | Network Master Pro |
| Standard Accessories |
|
| MT1040A-006 | High Power Supply*1 |
| Line Cord*2 |
| B0745A | Softcase |
| B0771A*3 | MT1040A Rear Panel kit |
| G0418A | AC Adaptor |
| G0423A | Two LiION Batteries |
| W4039AE | Quick Reference Guide |
| Z1746A | Stylus |
| Z2077A | Utilities ROM |
| Z2082A | Handle |
| Software Options*4 |
|
| MT1040A-003*5 | Connectivity for WLAN/Bluetooth |
| MT1040A-011 | Site Over Remote Access Connect |
| Option for Two Transport Modules*6 |
|
| MT1040A-020 | Activate for 400G Dual/100G Quad Option |
| Standard Accessories |
|
| G0419A | AC Adapter (400 W) |
Notes:
*1: The presence of the MT1040A-006 option can be recognized at the top right of the front panel.
*2: One line cord is attached to the area to shipment.
*3: Composed of B0720A, B0730A, B0731A, B740A and B0741A.
*4: These options can be retrofitted. The Model/Order No. of retrofit options is “-3**”.
Example:
MT1040A-003 Connectivity for WLAN/Bluetooth becomes MT1040A-303
Connectivity for WLAN/Bluetooth Retrofit.
When retrofitting an option, please either specify one of the following media along with the relevant option, or Web download.
Z1849A: DVD-ROM for Retrofit Options
Z1850A: USB Stick for Retrofit Options
*5: WLAN is available for certified countries and regions including USA, Japan and EU countries. Please visit the Anritsu web site for updated information.
*6: Can be added to main unit in which MT1040A-006 already installed. However, battery operation is not possible when using two transponder modules together.
