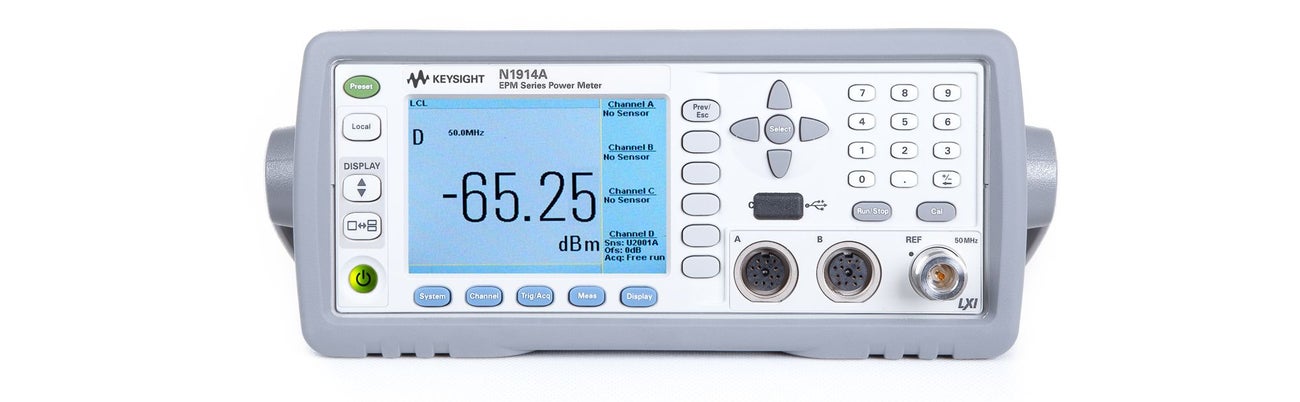

The N1914A dual channel power meter is compatible with all N8480, 8480, U2000 Series and E-series sensors (except the E9320 family), and provides average power measurements from -70 to +44 dBm, 9 kHz to 110 GHz.
The EPM Series Power meters (N1914A, N1913A) give repeatable and reliable results for bench applications.
These power meters offer a measurement speed of up to 400 readings/second for fast, accurate average power measurements, and come with the industry’s first color LCD screen in an average power meter, allowing you to view and analyze test data more easily. A noteworthy enhancement from the conventional dual-channel power meter, EPM Series power meter enables four-channel power measurement by connecting U2000 Series USB power sensors via optional USB host. Connect U2000 Series USB power sensors to the EPM Series power meters via the optional USB hosts and get up four channels for power measurements.
| Key Features |
| Frequency range of 9 kHz to 110 GHz (sensor dependent) |
| Wide dynamic range of -70 to +44 dBm (sensor dependent) |
| Go beyond GPIB with LAN LXI-C and USB connectivity |
| Code-compatible with E4418/19B power meters* and 436A/37B/38A power meters (option 200) |
| Increased measurement channels: up to three channels with two additional U2000 Series power sensors connected using the optional USB hosts |
| Automated frequency/power sweep measurements with the optional external trigger in/out feature |
| A BenchVue software license (BV0007B) is now included with your instrument. BenchVue makes it simple to connect, control instruments, and automate test sequences. |
| Specifications |
|
EPM Series Power Meters
E-Series and 8480 Series Power Sensors
|
|
| Model / Option Overview |
|
| Model | Description |
| Power Meters |
|
| N1913A | Single-channel average power meter |
| N1914A | Dual-channel average power meter |
| Power Meter Configurations |
|
| N1913/4A-004 | Delete power sensor cable(s) |
| N1913/4A-101* | Single/dual-channel average power meter |
| N1913/4A-201 | Single/dual-channel average power meter with VGA, trigger in/out, 1 front and 1 rear USB port |
| N1913/4A-B01 | Without battery (mandatory for Option 201) |
| N1913/4A-C01 | Front calibrator, front sensor |
| N1913/4A-C02 | Front calibrator, parallel front and rear sensor |
| N1913/4A-C03 | Rear calibrator, parallel front and rear sensor |
| N1913A-200 | 436A and 437B code compatibility for new N1913A purchase |
| N1914A-200 | 438A code compatibility for new N1914A purchase |
| N6901A-1FP | 436A and 437B code compatibility for N1913A. Post purchase upgrade only. |
| N6902A-1FP | 438A code compatibility for N1914A. Post purchase upgrade only. |
| Power Sensor Cables |
|
| 11730A | Power sensor cable: 1.5 m/5 ft |
| 11730B | Power sensor cable: 3.0 m/10 ft |
| 11730C | Power sensor cable: 6.1 m/20 ft |
| 11730D | Power sensor cable: 15.2 m/50 ft |
| 11730E | Power sensor cable: 30.5 m/100 ft |
| 11730F | Power sensor cable: 61 m/200 ft |
| Other Accessories |
|
| 34131A | Transit case |
| 34141A | Soft carrying case |
| 34161A | Accessory pouch |
| N191xA-908 | Rackmount kit for one instrument |
| N191xA-909 | Rackmount kit for two instruments |
| Software |
|
| BV0007B | BenchVue Power Meter/Sensor Control and Analysis app license |
| Calibration |
|
| N191xA-1A7 | Calibration + Uncertainties + Guardbanding |
| N191xA-A6J | ANSI Z540-1-1994 Calibration |
| R-50C-011-3 | Calibration Assurance Plan - Return to Keysight - 3 years |
| R-50C-011-5 | Calibration Assurance Plan - Return to Keysight - 5 years |
| R-50C-021-3 | ANSI Z540-1-1994 Calibration - 3 years |
| R-50C-021-5 | ANSI Z540-1-1994 Calibration - 5 years |
| GPIB Connectivity Products |
|
| 82357B | USB/GPIB converter |
| 10833x | GPIB cables:
10833D (0.5 m)
10833A (1 m)
10833B (2 m)
10833C (4 m)
10833F (6 m)
10833G (8 m)
|
| Option Number |
|
| N191xA-0B1 | Hard copy English language User’s Guide and Installation Guide |
| N191xA-0BF | Hard copy English language Programming Guide |
| N191xA-0BW | Hard copy English language Service Guide |
| N191xA-ABA | Hard copy English language User’s Guide and Programming Guide |
| N191xA-ABJ | Hard copy Japanese localization User’s Guide and Programming Guide |
| N1913A-CD1 | Documentation Optical Disk (consists of documentation CD-ROM and Keysight Instruments Control DVD) |
Note:
* Option 101 provides the calibrator and the sensor(s) on the front panel. It can’t be ordered with any of the B0x/C0x options.
