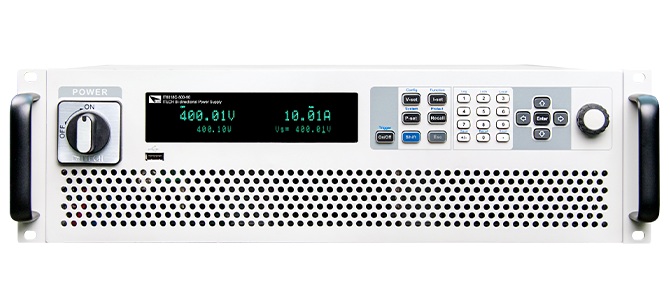

Itech IT6015C-80-450

En stock

Affichez les configurations

Bidirectional Programmable DC Power Supply; 80V / 450A / 15kW

Modèle

IT6015C-80-450

Gamme de produits

Power Supplies / Electronic Loads

Fabricant

Itech

Cette configuration a les caractéristiques suivantes:

Power Supplies / Electronic LoadsRegenerative Power Supplies

Configurations

Caractéristiques principales

Description produit

Ressources

Choisissez votre configuration

Show:

Chercher en combinant des options par ex. « C4000; M400 »

Options disponibles pour Itech IT6015C-80-450

Option	Description
IT-E167	RS-232 analog communication interface.
IT-E168	fiber module 1 + optical fiber cable for Unit parallel. 30cm +1.5m (N units of IT6000C need N pcs of IT-E168) cable no bending

Affiché(s) 1 - 1 de 1 résultats

ITECH, 80V/450A/15kW Bidirectional DC PSU, 3U

ID de produit: P-560589

IT-E167 • RS-232 analog communication interface.IT-E168 • fiber module 1 + optical fiber cable for Unit parallel. 30cm +1.5m (N units of IT6000C need N pcs of IT-E168) cable no bending

Location

Confirmé sur le devis

Devis

Quantité

Semaines

Date de début

Occasion

Unités disponibles

8 125,00 €*10 058,00 €

Solutions Financières

Renseignez-vous maintenant pour en savoir plus

Affiché(s) 1 - 1 de 1 résultats

* La disponibilité des produits et leurs prix sont sujets à des changements non-notifiés. Tous les prix peuvent varier en raison des coûts de transport, de la TVA, des taxes commerciales, des frais d'importation et du taux de change.Les produits ne sont pas nécessairement disponibles dans chaque pays. Chaque remise mentionnée est basée sur le prix liste complet de l'instrument neuf; les remises véritables peuvent varier en fonction des options, de la configuration, des taux de change et d'autres facteurs. La garantie peut varier selon la catégorie de produit ou selon le produit spécifié disponible. Toutes les conditions sont à confirmer par un devis rédigé complet.

Description produit

IT6000C series is a bi-directional programmable DC power supply which adopts the third generation SiC-base technology. It integrates the source and sink function in one unit. Based on these two functions, IT6000C offers the functionality of two-quadrant operation.

The regenerative capability enables the energy consumed to be put back onto the grid cleanly, saving costs from energy consumption and cooling, while not interfering with the grid. IT6000C series provide max. output voltage up to 2250V, support master-slave paralleling with averaging current distribution , max. output power up to 2 MW.Built-in waveform generator supports generating arbitrary waveforms, and import LIST files for waveforms via front panel USB port. IT6000C is the combination of high reliability, high efficient setting, safe and multiple measurement functions.

Key Features

Adopts SiC-base technology, integrates source and sink function in one unit

Stand-alone max. output power 144kW, expandable up to 2 MW by paralleling

Voltage range: 0 to 2250V

Current range: 0 to 2040A

High power density up to 18kW in compact 3U rack space

Bi-directional power transfer, seamless switch between sourcing and sinking

High regenerative efficiency up to 95%

Standard Built-in USB/CAN/LAN/digital IO interface, optional

GPIB/analog & RS232

Full protections: support OVP, ±OCP, ±OPP, OTP, power down protection, anti-islanding protection

Support control loop priority mode setting , different loop speed can be set

Partial pre-compliant with LV123, LV148, DIN40839, ISO-16750-2,

SAEJ1113-11,LV124 and ISO21848 testing standards

Could be used as battery cycler and support various battery charging and discharging modes, such as CC/CV/CP

Built-in function generator, support arbitrary-waveform generating

Could be used as PV simulator,simulating the PV curves(with optional SAS1000 software)

Support multiple working modes, rising and falling time can be adjustable.

Support data saving and the shortest interval of sampling is 10μs

Could be used as battery simulator(with optional BSS2000 Software)

Strong dynamic driving profile simulation function, up to 10,000,000 points

Specifications
IT6000C 80 V Bidirectional Programmable DC Power Supply
Model Overview
Model	Voltage	Current	Power	Resolving	Interface	Size
IT6005C-80-150	80V	150A	5kW	0.001V/0.01A	Built-in: LAN/USB/RS232/GPIB/CAN/External analog control interface	3U
IT6010C-80-300	80V	300A	10kW	0.001V/0.01A	Built-in: LAN/USB/RS232/GPIB/CAN/External analog control interface	3U
IT6015C-80-450	80V	450A	15kW	0.001V/0.01A	Built-in: LAN/USB/RS232/GPIB/CAN/External analog control interface	3U
IT6030C-80-900	80V	900A	30kW	0.001V/0.01A	Built-in: LAN/USB/RS232/GPIB/CAN/External analog control interface	6U
IT6045C-80-1350	80V	1350A	45kW	0.001V/0.01A	Built-in: LAN/USB/RS232/GPIB/CAN/External analog control interface	15U
IT6060C-80-1800	80V	1800A	60kW	0.001V/0.01A	Built-in: LAN/USB/RS232/GPIB/CAN/External analog control interface	15U
IT6075C-80-2040	80V	2040A	75kW	0.001V/0.01A	Built-in: LAN/USB/RS232/GPIB/CAN/External analog control interface	27U
IT6090C-80-2040	80V	2040A	90kW	0.001V/0.01A	Built-in: LAN/USB/RS232/GPIB/CAN/External analog control interface	27U
IT6105C-80-2040	80V	2040A	105kW	0.001V/0.01A	Built-in: LAN/USB/RS232/GPIB/CAN/External analog control interface	27U
