N3304A-J01	DC Electronic Load Module, 0-80V, 0-60A, 300 W, for N330X mainframes, 1 slot
N3304A-J02	DC Electronic Load Module, 0-60V, 60A, 360 W, for N330X mainframes, 1 slot
N3304A-STD	Standard N3304A
N3304A-UJ1	8mm screw terminal
N3304A-UK6	Commercial calibration certificate with test data included
R-50C-011-3	Calibration Assurance Plan - Return to Keysight - 3 years
R-50C-011-5	Calibration Assurance Plan - Return to Keysight - 5 years
R-50C-021-3	ANSI Z540-1-1994 Calibration - 3 years
R-50C-021-5	ANSI Z540-1-1994 Calibration - 5 years
R-51B-001-5Z	Warranty Assurance Plan - Return to Keysight - 5 years

Attribut	Valeur
Maximum Current	60A

Description produit

The N3300 Series supports up to six channels, each with a unique maximum voltage and current. They allow the design of a flexible automated test equipment (ATE) system to verify many types of power supplies, DC-to-DC converters, and batteries. Add additional modules to test multiple power sources simultaneously. Each module includes a 16-bit voltage, current, and power measurement system.

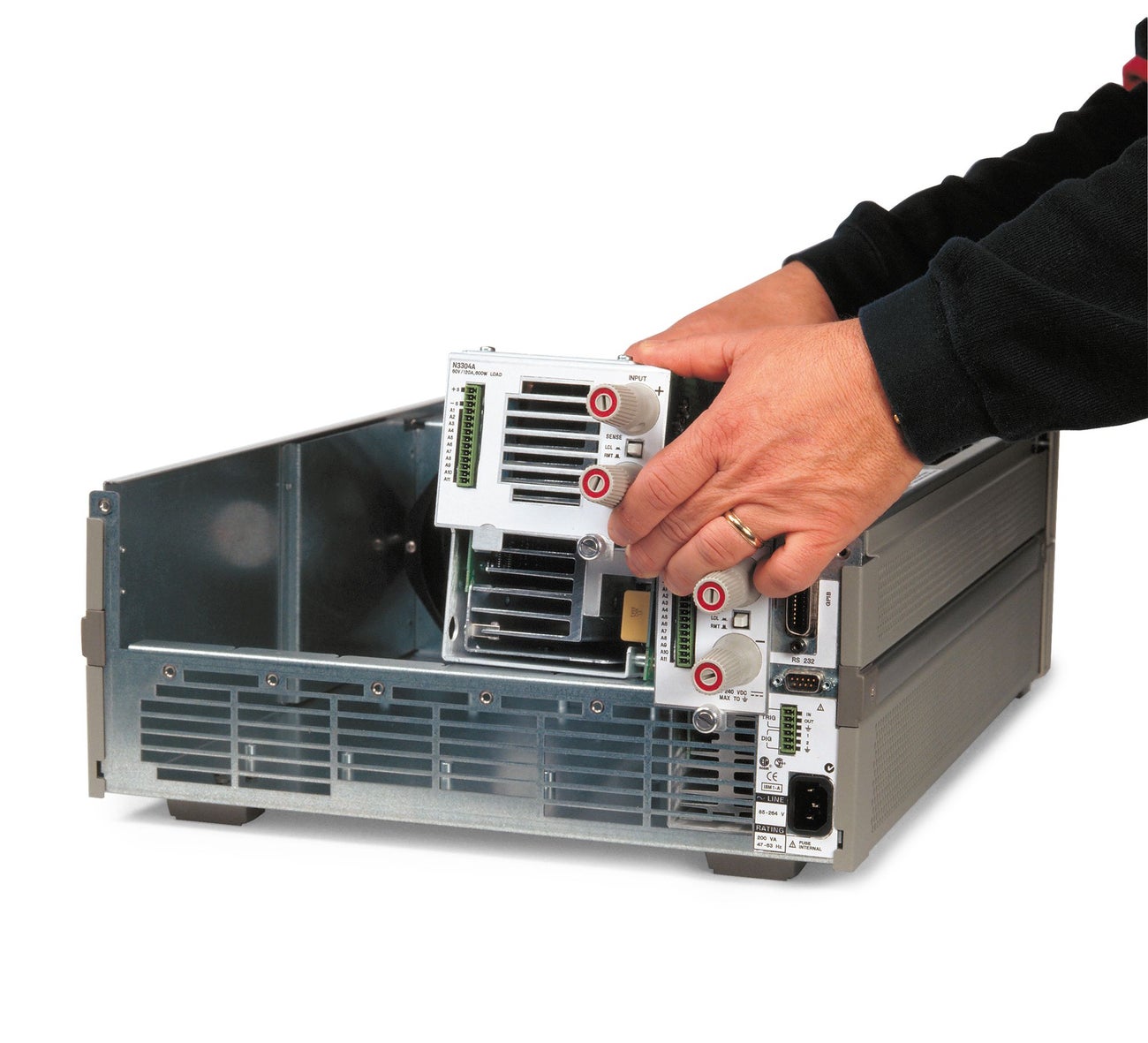

The Keysight N3304A is a 300 W (0-60A, 0-60V) electronic load module for use in either the N3300A or N3301A electronic load mainframe in system applications. The N3304A load module is fast and accurate, for programming in constant current, constant voltage, or constant resistance modes, or for making voltage, current or power measurements. The N3304A can also digitize waveforms.

Testing multiple output dc power supplies and dc-dc converters can be very time consuming if each output must be tested sequentially. If measurements are being made through a MUX using one DMM, this is what will happen. Using the built-in measurement capabilities of the N3300A electronic loads, all outputs can be measured simultaneously. Alternatively, multiple single output power sources can be tested simultaneously.

A single GPIB address is all you need for complete control and read-back of the N3304A load module within a single N3300A or N3301A mainframe. The N3304A electronic load provides fast operation and the accurate programming and read-back needed for high-volume DC power supply test systems.

Specifications
N3304A Electronic Load Module
Feature	Parameter
Input Ratings	Current: 0 - 60 A Voltage: 0 - 60 V Maximum Power: 300 W
Constant Current Mode	Low Range/High Range: 6 A/60 A Regulation: 10 mA Low Range Accuracy: 0.1% + 7.5 mA High Range Accuracy: 0.1% + 15 mA
Constant Voltage Mode	Low Range/High Range: 6 V/60V Regulation: 10 mV Low Range Accuracy: 0.1% + 3 mV High Range Accuracy: 0.1% + 8 mV
Constant Resistance Mode	Range 1 (I >10% of current rating): 0.033-2 Ω Range 2 (I >1% of current rating): 1.8-20 Ω Range 3 (I >0.1% of current rating): 18-200 Ω Range 4 (I >0.01% of current rating): 180-2000 Ω

Specifications
N3300 Series Modular DC Electronic Load
Feature	Parameter
Number of Inputs	Up to 6
Total Power	600 to 1800 W
Programming Accuracy	0.1% + 4 mA
Measurement Accuracy	0.05% +2.5 mA
Connectivity	GPIB and RS232

Specifications
N3300 Series Modular DC Electronic Load
Model Overview
Model	Description
N3300A	The Keysight N3300A is a full-rack width mainframe with 6-slots that accepts combinations of N330xA user-installable load modules (150 W to 600 W) for easy system configuration and future reconfiguration.
N3301A	The Keysight N3301A is a half-rack width mainframe with 2-slots that accepts combinations of N330xA user-installable load modules (150 W to 600 W) for easy system configuration and future reconfiguration.
N3302A	The Keysight N3302A is a 150 W (0-30A, 0-60V) electronic load module for use in either the N3300A or N3301A electronic load mainframe in system applications.
N3303A	The Keysight N3303A is a 250 W (0-10A, 0-240V) electronic load module for use in either the N3300A or N3301A electronic load mainframe in system applications.
N3304A	The Keysight N3304A is a 300 W (0-60A, 0-60V) electronic load module for use in either the N3300A or N3301A electronic load mainframe in system applications.
N3305A	The Keysight N3305A is a 500 W (0-60A, 0-150V) electronic load module for use in either the N3300A or N3301A electronic load mainframe in system applications.
N3306A	The Keysight N3306A is a 600 W (0-120A, 0-60V) electronic load module for use in either the N3300A or N3301A electronic load mainframe in system applications.
N3307A	The Keysight N3307A is a 250 W (0-30A, 0-150V) electronic load module for use in either the N3300A or N3301A electronic load mainframe in system applications.
