Keysight Technologies (formerly Agilent) DSAZ634A | 63GHz 4CH Digital Signal Oscilloscope | Electro Rent

Option	Description
DSAZ000-200	Includes 200 Mpts/CH Memory
DSOZ000-000	Internal SW Option-demo all
DSOZ000-01G	Memory upgrade 1G
DSOZ000-02G	Memory upgrade 2G/CH
DSOZ000-200	Memory upgrade 200M/CH
DSOZ000-500	Memory upgrade 500M/CH
DSOZ000-800	Standard Removable SSD drive for Z-Series - 500 GB
DSOZ000-801	Upgrade - Removable SSD drive for Z-Series - 1TB
DSOZ000-A6J	ANSI Z540 Compliant Calibration
DSOZ000-AMG	Calibration + Uncertainties + Guardbanding (Accredited)
DSOZ000-DSA	DSA includes 100M memory, high-speed SDA, EZJIT plus and Noise reduction features, fixed perpetual license
W10	Windows 10 operating system

Attribut	Valeur
Channel/Port Count	4
Maximum Sample/Data Rate	160 GS/s
High Frequency (range)	50GHz <= 85GHz

Description produit

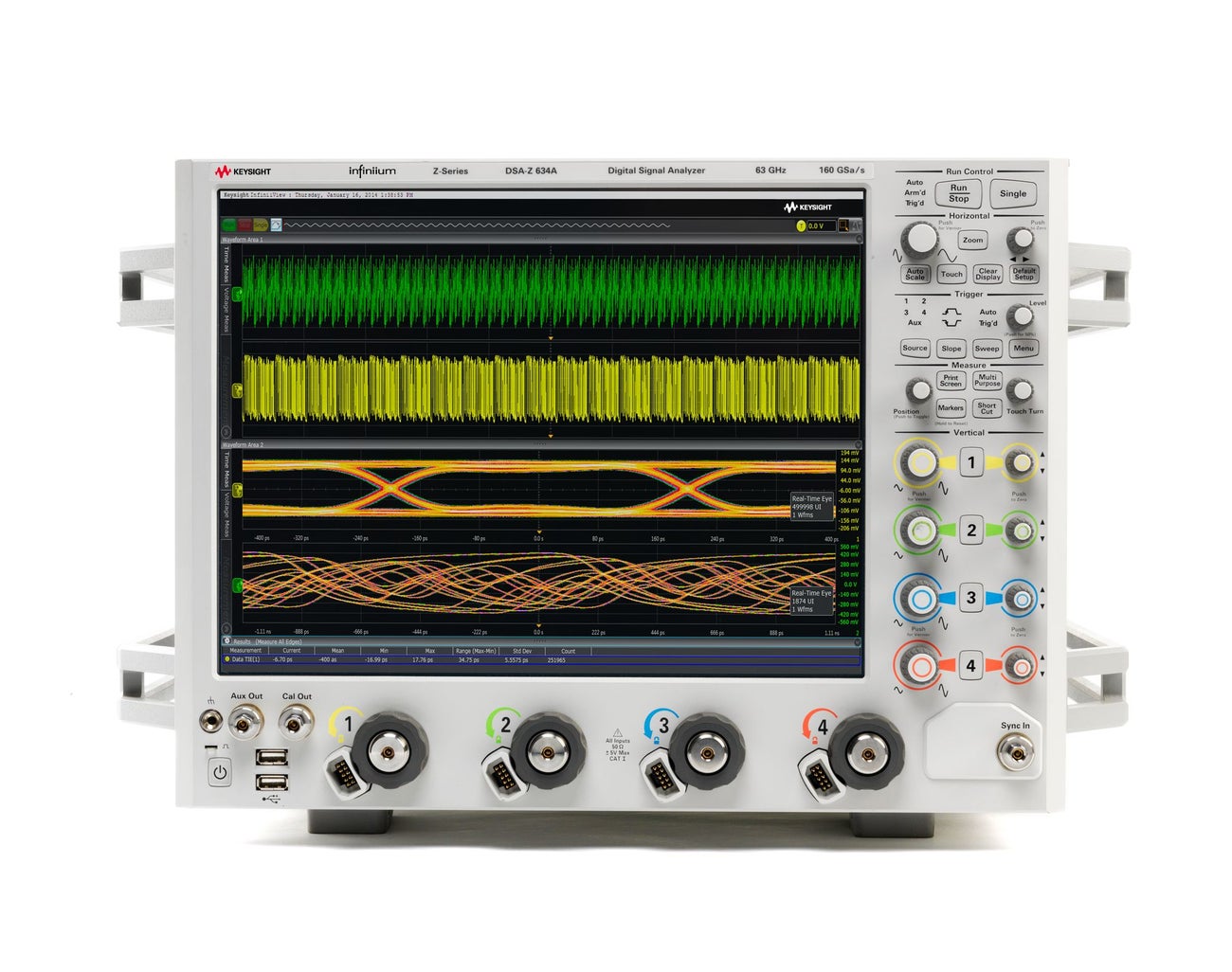

Infiniium Z-Series oscilloscopes feature up to 63 GHz of real-time oscilloscope bandwidth and the industry’s leading noise and jitter measurement floors.

Key Features

63 GHz of real-time bandwidth

80 GSa/s sample rate on 4 channels and 160 GSa/s sample rate on 2 channels

Capture more data with the deep memory of up to 2 Gpts (100 Mpts per channel standard)

Specifications
DSAZ634A
Feature	Parameter
Bandwidth	63 GHz
Bandwidth Upgrades	n/a
Channels	4
Max Memory Depth	2 Gpts (max), 100 Mpts (standard)
Max Sample Rate	160 GSa/s
Display Size	n/a
Waveform Update Rate	n/a
ADC Bits	8 bits
Noise Floor	n/a
Minimum Rise/Fall Time	7 ps (10-90%), 5 ps (20-80%)
Special Triggers	n/a
Protocol Trigger & Decodes	n/a
Applications	n/a
Operating System	n/a
Real-Time	Yes

Specifications

High Performance Real Time Oscilloscope

Model Overview

Model

Bandwidth

Sample Rate

Memory Depth

DSAZ634A

1 Channel: 63 GHz

2 Channel: 63 GHz

4 Channel: 33 GHz

1 Channel: 160 GSa/s

2 Channel: 160 GSa/s

4 Channel: 80 GSa/s

Standard: 100 Mpts

Maximum: 2 Gpts

DSOZ634A

1 Channel: 63 GHz

2 Channel: 63 GHz

4 Channel: 33 GHz

1 Channel: 160 GSa/s

2 Channel: 160 GSa/s

4 Channel: 80 GSa/s

Standard: 50 Mpts

Maximum: 2 Gpts

DSAZ632A

1 Channel: 63 GHz

2 Channel: 33 GHz

4 Channel: --

1 Channel: 160 GSa/s

2 Channel: 80 GSa/s

4 Channel: --

Standard: 100 Mpts

Maximum: 2 Gpts

DSOZ632A

1 Channel: 63 GHz

2 Channel: 33 GHz

4 Channel: --

1 Channel: 160 GSa/s

2 Channel: 80 GSa/s

4 Channel: --

Standard: 50 Mpts

Maximum: 2 Gpts

DSAZ594A

1 Channel: 59 GHz

2 Channel: 59 GHz

4 Channel: 33 GHz

1 Channel: 160 GSa/s

2 Channel: 160 GSa/s

4 Channel: 80 GSa/s

Standard: 100 Mpts

Maximum: 2 Gpts

DSOZ594A

1 Channel: 59 GHz

2 Channel: 59 GHz

4 Channel: 33 GHz

1 Channel: 160 GSa/s

2 Channel: 160 GSa/s

4 Channel: 80 GSa/s

Standard: 50 Mpts

Maximum: 2 Gpts

DSAZ592A

1 Channel: 59 GHz

2 Channel: 33 GHz

4 Channel: --

1 Channel: 160 GSa/s

2 Channel: 80 GSa/s

4 Channel: --

Standard: 100 Mpts

Maximum: 2 Gpts

DSOZ592A

1 Channel: 59 GHz

2 Channel: 33 GHz

4 Channel: --

1 Channel: 160 GSa/s

2 Channel: 80 GSa/s

4 Channel: --

Standard: 50 Mpts

Maximum: 2 Gpts

DSAZ504A

1 Channel: 50 GHz

2 Channel: 50 GHz

4 Channel: 33 GHz

1 Channel: 160 GSa/s

2 Channel: 160 GSa/s

4 Channel: 80 GSa/s

Standard: 100 Mpts

Maximum: 2 Gpts

DSOZ504A

1 Channel: 50 GHz

2 Channel: 50 GHz

4 Channel: 33 GHz

1 Channel: 160 GSa/s

2 Channel: 160 GSa/s

4 Channel: 80 GSa/s

Standard: 50 Mpts

Maximum: 2 Gpts

DSAZ334A

1 Channel: 33 GHz

2 Channel: 33 GHz

4 Channel: 33 GHz

1 Channel: 80 GSa/s

2 Channel: 80 GSa/s

4 Channel: 80 GSa/s

Standard: 100 Mpts

Maximum: 2 Gpts

DSOZ334A

1 Channel: 33 GHz

2 Channel: 33 GHz

4 Channel: 33 GHz

1 Channel: 80 GSa/s

2 Channel: 80 GSa/s

4 Channel: 80 GSa/s

Standard: 50 Mpts

Maximum: 2 Gpts

DSAZ254A

1 Channel: 25 GHz

2 Channel: 25 GHz

4 Channel: 25 GHz

1 Channel: 80 GSa/s

2 Channel: 80 GSa/s

4 Channel: 80 GSa/s

Standard: 100 Mpts

Maximum: 2 Gpts

DSOZ254A

1 Channel: 25 GHz

2 Channel: 25 GHz

4 Channel: 25 GHz

1 Channel: 80 GSa/s

2 Channel: 80 GSa/s

4 Channel: 80 GSa/s

Standard: 50 Mpts

Maximum: 2 Gpts

DSAZ204A

1 Channel: 20 GHz

2 Channel: 20 GHz

4 Channel: 20 GHz

1 Channel: 80 GSa/s

2 Channel: 80 GSa/s

4 Channel: 80 GSa/s

Standard: 100 Mpts

Maximum: 2 Gpts

DSOZ204A

1 Channel: 20 GHz

2 Channel: 20 GHz

4 Channel: 20 GHz

1 Channel: 80 GSa/s

2 Channel: 80 GSa/s

4 Channel: 80 GSa/s

Standard: 50 Mpts

Maximum: 2 Gpts

Specifications
High Performance Real Time Oscilloscope
Model Overview
Model
DSAZ634A	63-GHz digital storage oscilloscope
DSOZ634A	63-GHz digital signal analyzer ¹
DSAZ632A	63-GHz digital storage oscilloscope
DSOZ632A	63-GHz digital signal analyzer ¹
DSAZ594A	59-GHz digital storage oscilloscope
DSOZ594A	59-GHz digital signal analyzer ¹
DSAZ592A	59-GHz digital storage oscilloscope
DSOZ592A	59-GHz digital signal analyzer ¹
DSAZ504A	50-GHz digital storage oscilloscope
DSOZ504A	50-GHz digital signal analyzer ¹
DSAZ334A	33-GHz digital storage oscilloscope
DSOZ334A	33-GHz digital signal analyzer ¹
DSAZ254A	25-GHz digital storage oscilloscope
DSOZ254A	25-GHz digital signal analyzer ¹
DSAZ204A	20-GHz digital storage oscilloscope
DSOZ204A	20-GHz digital signal analyzer ¹
