Keysight Technologies (formerly Agilent) MSOX4154A | 1.5GHz 4 + 16CH Mixed Signal Oscilloscope | Electro Rent

Option	Description
D4000PWRB	Power Supply Test Software for 4000 X-Series
MSO0000-900	Power cord - United Kingdom, BS 1363/A male plug
MSO0000-901	Power cord - Australia and New Zealand, AS 3112 Figure 2.1 (a) male plug
MSO0000-902	Power cord - Continental Europe, CEE 7 male plug
MSO0000-903	Power cord - United States and Canada 120V, NEMA 5-15P male plug
MSO0000-906	Power cord - Switzerland, SEV Type 12 male plug
MSO0000-912	Power cord - Denmark, SR 107-2-D male plug
MSO0000-917	Power cord - India, IEC 83-B1 male plug
MSO0000-918	Power cord - Japan, JIS C8303 male plug
MSO0000-919	Power cord - Israel, Israel SI 32 male plug
MSO0000-920	Power cord - Argentina, IRAM 2073 male plug
MSO0000-921	Power cord - Chile, CEI 23-16 male plug
MSO0000-922	Power cord - China, GB 1002 (figure 3) male plug
MSO0000-923	Power cord - South Africa, SANS 164-1 male plug
MSO0000-927	Power cord - Thailand, NEMA 5-15P 250 male plug
MSO0000-930	Power cord - Brazil, NBR 14136 male plug
MSO0000-931	Power cord - Taiwan, CNS 10917-2 male plug
MSO0000-932	Power cord - Cambodia, CS 0017 male plug
MSOX4000-000	Internal SW Option
MSOX4000-1CF	Soft Carrying Case
MSOX4000-A6J	Certificate of compliance calibration - ANSI Z540, printed
MSOX4000-AB0	Overlay - Traditional Chinese front panel
MSOX4000-AB1	Overlay - Korean front panel
MSOX4000-AB2	Overlay - Simplified Chinese front panel
MSOX4000-AB3	Overlay- Thai Localization
MSOX4000-AB8	Overlay -Turkish Localization
MSOX4000-AB9	Overlay - Portuguese front panel
MSOX4000-ABD	Overlay - German front panel
MSOX4000-ABE	Overlay - Spanish front panel
MSOX4000-ABF	Overlay - French front panel
MSOX4000-ABJ	Overlay - Japanese front panel
MSOX4000-ABZ	Overlay - Italian front panel
MSOX4000-AK8	Overlay - Czech Localization
MSOX4000-AKD	Overlay- Polish Localization
MSOX4000-AKT	Overlay - Russian front panel
MSOX4000-AMG	Calibration + Uncertainties + Guardbanding (Accredited)
MSOX4000-BDL	SW application bundle license for 4000 X-Series, factory installed fixed perpetual license
MSOX4000-PWR	Power analysis application - installed
R-50C-011-3	Calibration Assurance Plan - Return to Keysight - 3 years
R-50C-011-5	Calibration Assurance Plan - Return to Keysight - 5 years
R-50C-011-MU-3	Keysight Calibration + Uncertainties 3 years
R-50C-011-MU-5	Keysight Calibration + Uncertainties 5 years
R-50C-016-3	Keysight Calibration + Uncertainties + Guardbanding 3 years
R-50C-016-5	Keysight Calibration + Uncertainties + Guardbanding 5 years
R-50C-021-3	ANSI Z540-1-1994 Calibration - 3 years
R-50C-021-5	ANSI Z540-1-1994 Calibration - 5 years
R-51B-001-5F	Warranty Assurance Plan - Return to Keysight - 5 years

Attribut	Valeur
Channel/Port Count	20
Maximum Sample/Data Rate	5 GS/s
High Frequency (range)	1GHz <= 10GHz

Description produit

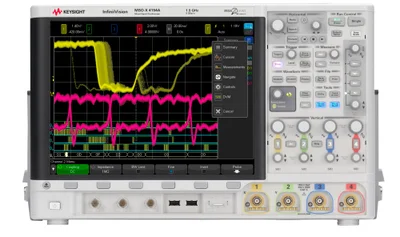

The 4000 X-Series boasts 12.1-inch display, capacitive touch screen technology, InfiniiScan Zone touch triggering, 1-million-waveforms/sec update rate, MegaZoom IV smart memory technology and standard segmented memory.

The Keysight 4000 X-Series oscilloscopes are engineered for next-generation performance, delivering waveform update rates 20 times faster than the competition to display the most signal detail. An industry-leading 12.1-inch capacitive touch screen with innovative hardware-based zone touch triggering provides the most intuitive interface to get you answers faster. The 4000 X-Series provides maximum investment protection with fully upgradable 7-instruments-in-1.

Key Features

1.5 GHz, this model

4 analog plus 16 digital channels

Easily view signals on the large 12.1-inch capacitive touch screen

Isolate signals in seconds with exclusive Zone touch triggering

Capture more data with 4 Mpts memory and standard segmented memory

See more signal detail with 1,000,000 wfms/s update rate

Expand your measurement capabilities with full upgradability: Add bandwidth, dual-ch 20 MHz arbitrary WaveGen, 3-digit DVM, serial trigger and analysis & mask testing at any time

Specifications
MSOX4154A Mixed Signal Oscilloscope
Feature	Parameter
Bandwidth Upgrades	n/a
Channels	4 + 16
Max. Memory Depth	4 Mpts
Max. Sample Rate	5 GSa/s
Display Size	12.1 inch
Waveform Update Rate	1,000,000 wfms/sec
ADC Bits	8 bits
Special Triggers	edge pulse width video protocol decodes zone touch edge then edge pattern runt pulse rise/fall time Nth edge burst setup and hold
Operating System	Embedded

Specifications
4000 X-Series
Model Overview
Model	4022A	4024A	4032A	4034A	4052A	4054A	4104A	4154A
Bandwith* (–3 dB)	200 MHz	200 MHz	350 MHz	350 MHz	500 MHz	500 MHz	1 GHz	1.5 GHz*
All Channel Real Time Bandwidth	200 MHz	200 MHz	350 MHz	350 MHz	500 MHz	500 MHz	1 GHz	1 GHz
Calculated Rise Time (10 to 90%)	≤ 1.75 ns	≤ 1.75 ns	≤ 1 ns	≤ 1 ns	≤ 700 ps	≤ 700 ps	≤ 450 ps	≤ 300 ps
Input Channels DSOX	2	4	2	4	2	4	4	4
Input Channels MSOX	2 + 16	4 + 16	2 + 16	4 + 16	4 + 16	4 + 16	4 + 16	4 + 16
Maximum Sample Rate	5 GSa/s half channel, 2.5 GSa/s all channel	5 GSa/s half channel, 2.5 GSa/s all channel	5 GSa/s half channel, 2.5 GSa/s all channel	5 GSa/s half channel, 2.5 GSa/s all channel	5 GSa/s half channel, 2.5 GSa/s all channel	5 GSa/s half channel, 2.5 GSa/s all channel	5 GSa/s half channel, 2.5 GSa/s all channel	5 GSa/s half channel, 2.5 GSa/s all channel
Maximum Memory Depth	4 Mpts half channels, 2 Mpts all channels	4 Mpts half channels, 2 Mpts all channels	4 Mpts half channels, 2 Mpts all channels	4 Mpts half channels, 2 Mpts all channels	4 Mpts half channels, 2 Mpts all channels	4 Mpts half channels, 2 Mpts all channels	4 Mpts half channels, 2 Mpts all channels	4 Mpts half channels, 2 Mpts all channels
Display Size and Type	12.1-inch high-definition capacitive touch display	12.1-inch high-definition capacitive touch display	12.1-inch high-definition capacitive touch display	12.1-inch high-definition capacitive touch display	12.1-inch high-definition capacitive touch display	12.1-inch high-definition capacitive touch display	12.1-inch high-definition capacitive touch display	12.1-inch high-definition capacitive touch display
Waveform Update Rate	> 1 million waveforms per second	> 1 million waveforms per second	> 1 million waveforms per second	> 1 million waveforms per second	> 1 million waveforms per second	> 1 million waveforms per second	> 1 million waveforms per second	> 1 million waveforms per second
System Bandwidth with; N2894A Standard Passive Probe	200 MHz	200 MHz	350 MHz	350 MHz	500 MHz	500 MHz	700 MHz	700 MHz

Notes:

* 1.5 GHz real time bandwidth in half-channel mode or full channel equivalent time mode

Specifications
InfiniiVision X-Series Oscilloscopes
Model Overview
Model	InfiniiVision 1000 X-Series	InfiniiVision 2000 X-Series	InfiniiVision 3000T X-Series	InfiniiVision 4000 X-Series
Analog Channels	2 and 4	2 and 4	2 and 4	2 and 4
Bandwidth (upgradable)	50, 70, 100, 200 MHz	70, 100, 200 MHz	100, 200, 350, 500 MHz, 1 GHz	200, 350, 500 MHz, 1 GHz, 1.5 GHz
Digital Channels	External trigger can be used as a 3rd digital channel for 2 channel model	8 (MSO models or upgrade) *	16 (MSO models or upgrade)	16 (MSO models or upgrade)
Maximum Sample Rate	2 GSa/s	2 GSa/s	5 GSa/s	5 GSa/s
Maximum Memory Depth	Up to 2 Mpts standard	1 Mpt/channel	4 Mpts	4 Mpts
Waveform Update Rate	Up to 200,000 wfms/sec	Up to 200,000 wfms/sec	> 1,000,000 wfms/sec	> 1,000,000 wfms/sec
Display	7-inch display	8.5-inch display	8.5-inch capacitive touch display	12.1-inch capacitive touch display
Zone Touch Trigger	No	No	Standard	Standard
WaveGen 20-MHz Function/ Arbitrary Waveform Generator	Single-channel function only (standard on G models)	Single-channel function only (option)	Single-channel AWG (option)	Dual-channel AWG (option)
Integrated Digital Voltmeter (standard)	Yes	Yes	Yes	Yes
Integrated Hardware Counter (standard)	5-digits	5-digits	5-digits, 8-digits - totalizer	5-digits
Serial Protocol Analysis	I 2C, UART( standard on all models) SPI, CAN/LIN (standard on DSO models)	Yes (optional: CAN, LIN, I²C, SPI, RS232/UART) *	Yes (optional: ARINC 429, CAN/CANdbc/CAN-FD/LIN/LIN symbolic, SENT, FlexRay, I2C, I2S, LIN, MIL-STD-1553, SPI, UART/RS232, CXPI, Manchester/NRZ)	Yes (optional: ARINC 429, CAN/CAN-dbc/CANFD/LIN/LIN symbolic, SENT, FlexRay, I2C, I2S, LIN, MIL-STD-1553, SPI, UART/RS232, USB 2.0, CXPI, Manchester/NRZ)
Segmented Memory	Yes (standard on DSO model)	Standard	Standard	Standard
Mask/Limit Testing	Yes (standard on DSO model)	Yes (option)	Yes (option)	Yes (option)
Power Analysis	No	No	Yes (option)	Yes (option)
USB 2.0 Signal Quality Test	No	No	No	Yes (option)
HDTV Analysis	No	No	Yes (option)	Yes (option)
Advanced Waveform Math	No	Standard	Standard	Standard
Connectivity	Standard USB 2.0, LAN	Standard USB 2.0 (LAN/video option) (GPIB option)	Standard USB2.0 (LAN/video option) (GPIB option)	Standard USB2.0, LAN, video out (GPIB option)
