The LinkRunner AT Network AutoTester offers user-configured AutoTests for a wide range of important tasks. This network tester’s quick cable test and switch identification facilitate fast problem isolation.

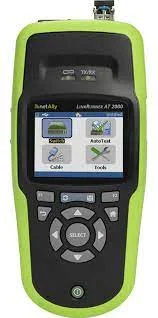

The LinkRunner AT Network Tester is a rugged, fast, and complete copper and fiber Ethernet network connectivity tester. It performs an essential set of network connectivity tests, enabling you to quickly and accurately identify and solve network connectivity problems.
Key Features |
Fiber support |
TruePower™ PoE Power Test up to 30W |
IPv6 support |
Reflector support |
More reports: 50 instead of 10 |
Uses Li-ION rechargeable battery instead of an AA battery pack |
These exclusive features cannot be added to the LinkRunner AT 1000. |
Specifications |
|
LinkRunner AT
Network AutoTester
|
|
Feature | Parameter |
Dimensions | 3.5 in x 7.8 in x 1.9 in
8.9 cm x 19.8 cm x 4.8 cm
|
Weight | 18 oz
0.5 kg
|
Battery | Removable, rechargeable lithium-ion battery pack
(18.5 Watt-hrs)
|
Battery Life | Typical operating life is 6 hours
Typical charge time is 3 hours
|
External AC Adapter/Charger | AC input 90 to 264V AC 48 to 62 Hz input power DC output 15V DC at 1.2 Amps |
Display | 2.8 in color LCD
(320 x 240 pixels)
|
Keypad | 12-key elastomeric |
Tone Generator | IntelliTone™
Digital Tone: [500 KHz]
Analog Tones: [400 Hz, 1 KHz]
|
Media Access; Copper | RJ-45: 10BASE-T, 100BASE-TX, 1000BASE-T and PoE (IEEE 802.3af and 802.3at) |
Media Access; Fiber | SFP Adapter Port supports 100BASE-FX and 1000BASE-LX/ SX/ZX (LRAT-2000 Only) |
Cable Tests | Pair lengths opens, shorts, splits, crossed, straight through, and cable ID |
Power over Ethernet (PoE) | Single-ended testing:
User-defined testing to IEEE 802.3at class 0, 1, 2, 3, 4 without LLDP negation, or 4 with LLDP negotiation
The following PSE PoE parameters are measured:
Pairs used
Received class
PSE type
Unloaded voltage(V)
Loaded voltage (V) (LRAT-2000 with TruePower™)
Unloaded power (W) (LRAT-1000)
Loaded power (W) (LRAT-2000 with TruePower™)
|
Supporting Operating Systems | Windows® 8.1 and Windows® 10
Minimum hardware requirement:
Processor: 1 GHz or better CPU
RAM: 1 GB or more
Hard Disk: 1 MB available space
Display: 1024 x 768 high color, 32-bit (recommended)
Interface: USB
|
Specifications |
|
LinkRunner AT
Network AutoTester
|
|
Feature | Parameter |
Operating Temperature and Relative Humidity | 32°F to 113°F
0°C to +45°C
Note: The battery will not charge if the internal temperature of the tester is above 113°F (45°C)
|
Operating Relative Humidity
(% RH without condensation)
| 90% (50°F to 95°F; 10°C to 35°C)
75% (95°F to 113°F; 35°C to 45°C)
|
Storage Temperature | -4°F to 140°F
-20°C to +60°C
|
Shock and Vibration | Random, 2 g
5 Hz-500 Hz (Class 2) 1 m drop
|
Safety | EN 61010-1 2nd edition |
Safety (LR-AT 2000 only) | EN/IEC 60825-1:2007, EN/IEC 60825-2:2004+ A1:2007 (LRAT- 2000 only) |
Altitude | 4,000 m
Storage: 12,000 m
|
EMC | FCC Part 15 Class A, EN 61326-1 |
Certifications and Compliance | Conforms to relevant European Union directives
Conforms to relevant Australian standards
Listed by the Canadian Standards Association
|
