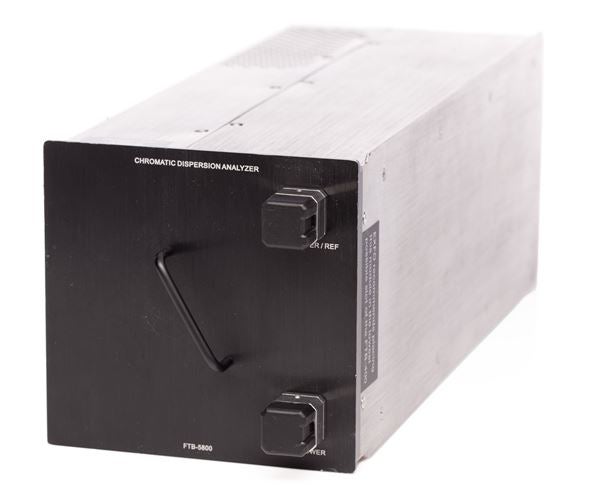

EXFO FTB-5800-XX

FTB-5800 - chromatic dispersion analyzer delivers fast and reliable performance in a field-ready unit for all chromatic and polarization dispersion testing needs, from verifying the capacity of legacy fiber to upgrading a network to a given rate.

Designed for ultra-longhaul and 40/100 Gbit/s applications, EXFO’s FTB-5500B PMD and FTB-5800 CD analyzer combo provides you with the speed, accuracy and high performance you need to ensure high-quality network services. Housed in the expert FTB-500 platform, the FTB-5500B and FTB-5800 test modules survive splashes, knocks and drops—ideal for CO and field conditions.

Chromatic dispersion (CD) causes pulse broadening and can have a very negative impact on transmission performance by increasing the Bit Error Rate. EXFO’s FTB-5800 CD Analyzer offers high performance in a field-ready unit for all chromatic dispersion testing situations.

Note:

^a. All specifications are typical with four seconds averaging time per point (where applicable), at a temperature of 23 ºC ± 1 ºC, with FC connectors and after warmup time.

^b. Displayed range. Values may be extrapolated.

^c. Dynamic range is defined as the difference between the strongest signal and the weakest detectable by the receiver. Extra averaging may be required. Uncertainty (accuracy) is not guaranteed at the limits of range.

^d. C+L band.

^e. Including EDFAs.

^f. Additional gain setting time may be required prior to the first point of each band.
