Keysight Technologies (formerly Agilent) U2053XA | 10MHz to 33GHz USB Wide Dynamic Range Average Power Sensor | Electro Rent

Option	Description
R-50C-011-3	Calibration Plan - Return to Keysight - 3 years
R-50C-011-5	Calibration Plan - Return to Keysight - 5 years
R-51B-001-5Z	Extended Warranty - Return to Keysight - 5 years
U2000A-201	Transit case
U2000A-202	Soft carrying case
U2000A-203	Holster
U2000A-204	Soft carrying pouch
U2000A-301	Power sensor cable; 5-ft (1.5m)
U2000A-302	Power sensor cable; 10-ft (3m)
U2000A-303	Power sensor cable; 16.4-ft (5m)
U2053XA-0B1	English language user guide; printed
U2053XA-0BF	English language programming guide; printed
U2053XA-0BN	English language service guide; printed
U2053XA-1A7	Calibration + Uncertainties + Guardbanding (Not Accredited)
U2053XA-100	Type N (male) connector
U2053XA-A6J	ANSI Z540-1-1994 Calibration
U2053XA-ABJ	Japan - Japanese user guide; printed
U2053XA-CD1	Documentation Optical Disk
U2053XA-UK6	Commercial calibration certificate with test data
W4100-3MW	Warranty, 3mth for included accessories

Attribute	Value
High Frequency (range)	20GHz <= 50GHz

Product Overview

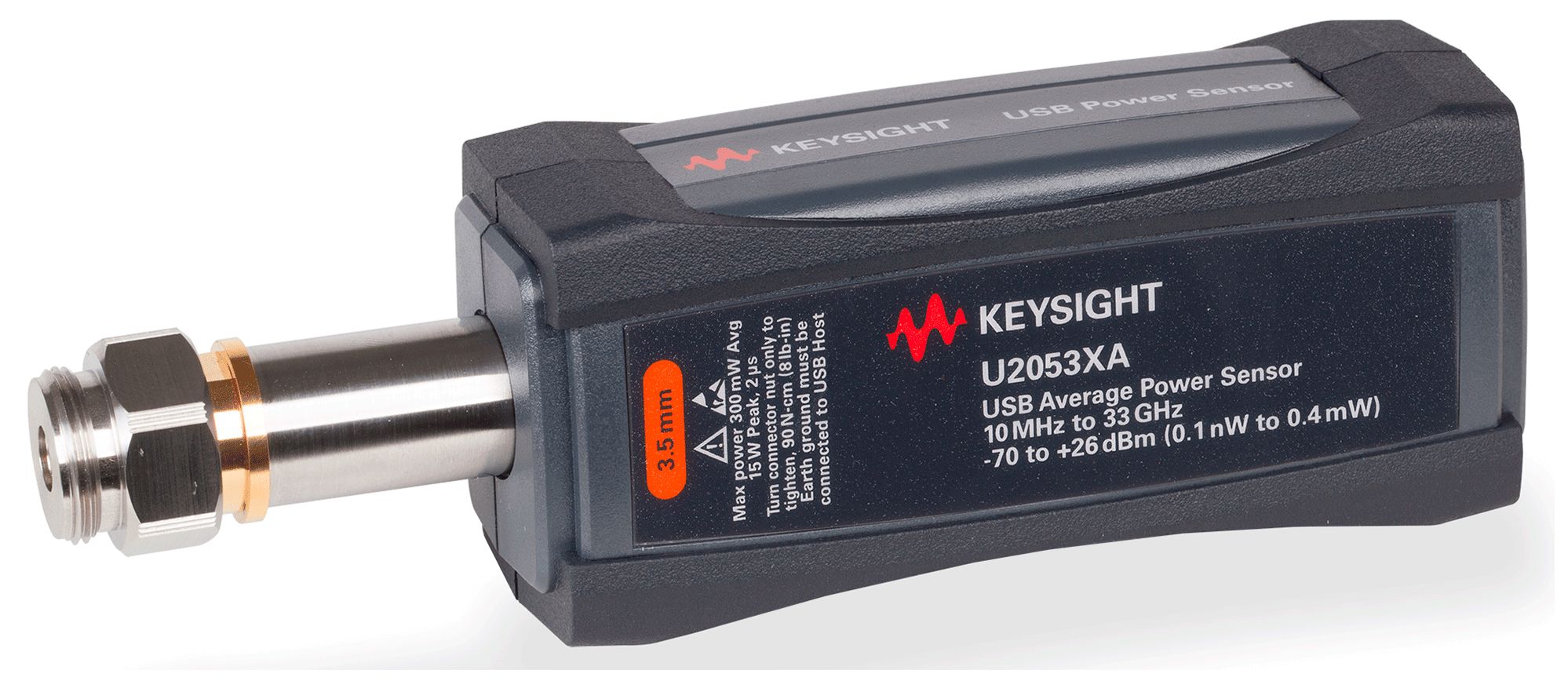

The Keysight U2053XA is a fast, accurate and wide dynamic range 10 MHz – 33 GHz USB average power sensor.

Accurately measure any modulated signal with the Keysight Technologies, Inc. U/L2050/60 X-Series wide dynamic range power sensors. The USB/LAN connectivity models come with wide dynamic range, covering -70 to +26 dBm. This sensor offers very accurate and repeatable power measurements for any modulated signal and comes with super-fast measurement speed of 50,000 readings/sec, which enables higher manufacturing throughput. Users can also save time and reduce measurement uncertainty with the internal zero and calibration function.

The U/L2050/60 X-Series is supported by the Keysight BenchVue software. BenchVue makes it easy to control your power meter to log data and visualize measurements in a wide array of display options without any programming. Simply connect the sensor to your PC installed BenchVue BV0007B Power Meter/Sensor Control and Analysis app to perform average power measurement and analysis.

Key Features

Frequency range of 10 MHz – 33 GHz

USB connectivity with a wide dynamic range of -70 to +26 dBm for small signal measurements

Fast real-time measurement of 50,000 readings/sec

Real-time measurement with zero dead time to ensure every single continuous pulse is measured

Average mode time-selectivity function allows full dynamic range for average and time selectivity average power measurements

Internal zero and automatic calibration saves time and reduces measurement uncertainty

A BenchVue software license (BV0007B) is now included with your instrument. BenchVue makes it simple to connect, control instruments, and automate test sequences

Specifications
LAN / USB Average Power Sensor
Model Overview
Model	Description
U2049XA	LAN peak and average power sensor, 10 MHz to 33 GHz
U2049XA, Option TVA	LAN peak and average power sensor, 10 MHz to 33 GHz, Thermal Vacuum Option
U2051XA	USB wide dynamic range average power sensor, 10 MHz to 6 GHz
U2052XA	USB wide dynamic range average power sensor, 10 MHz to 18 GHz
U2053XA	USB wide dynamic range average power sensor, 10 MHz to 33 GHz
U2054XA	USB wide dynamic range average power sensor, 10 MHz to 40 GHz
U2055XA	USB wide dynamic range average power sensor, 10 MHz to 50 GHz
U2055XA, Option 053	USB wide dynamic range average power sensor, 10 MHz to 53 GHz
U2056XA	USB wide dynamic range average power sensor, 10 MHz to 54 GHz
U2057XA	USB wide dynamic range average power sensor, 10 MHz to 67 GHz
U2061XA	USB wide dynamic range peak and average power sensor, 10 MHz to 6 GHz
U2062XA	USB wide dynamic range peak and average power sensor, 10 MHz to 18 GHz
U2063XA	USB wide dynamic range peak and average power sensor, 10 MHz to 33 GHz
U2064XA	USB wide dynamic range peak and average power sensor, 10 MHz to 40 GHz
U2065XA	USB wide dynamic range peak and average power sensor, 10 MHz to 50 GHz
U2065XA, Option 053	USB wide dynamic range peak and average power sensor, 10 MHz to 53 GHz
U2066XA	USB wide dynamic range peak and average power sensor, 10 MHz to 54 GHz
U2067XA	USB wide dynamic range peak and average power sensor, 10 MHz to 67 GHz

Specifications
LAN Average Power Sensor
Model Overview
Model	Description
L2051XA	LAN wide dynamic range average power sensor, 10 MHz to 6 GHz
L2052XA	LAN wide dynamic range average power sensor, 10 MHz to 18 GHz
L2053XA	LAN wide dynamic range average power sensor, 10 MHz to 33 GHz
L2054XA	LAN wide dynamic range average power sensor, 10 MHz to 40 GHz
L2055XA	LAN wide dynamic range average power sensor, 10 MHz to 50 GHz
L2055XA, Option 053	LAN wide dynamic range average power sensor, 10 MHz to 53 GHz
L2056XA	LAN wide dynamic range average power sensor, 10 MHz to 54 GHz
L2057XA	LAN wide dynamic range average power sensor, 10 MHz to 67 GHz
L2061XA	LAN wide dynamic range peak and average power sensor, 10 MHz to 6 GHz
L2062XA	LAN wide dynamic range peak and average power sensor, 10 MHz to 18 GHz
L2063XA	LAN wide dynamic range peak and average power sensor, 10 MHz to 33 GHz
L2064XA	LAN wide dynamic range peak and average power sensor, 10 MHz to 40 GHz
L2065XA	LAN wide dynamic range peak and average power sensor, 10 MHz to 50 GHz
L2065XA, Option 053	LAN wide dynamic range peak and average power sensor, 10 MHz to 53 GHz
L2066XA	LAN wide dynamic range peak and average power sensor, 10 MHz to 54 GHz
L2067XA	LAN wide dynamic range peak and average power sensor, 10 MHz to 67 GHz
L2065XT, Option 053	LAN peak and average power sensor, 10 MHz to 53 GHz, Thermal Vacuum Compliance
L2066XT	LAN peak and average power sensor, 10 MHz to 54 GHz, Thermal Vacuum Compliance
L2067XT	LAN peak and average power sensor, 10 MHz to 67 GHz, Thermal Vacuum Compliance
