Presupuesto Rápido: Rohde & Schwarz FSVR30 (1311.0006.30)


(+34) 91 076 21 90¿Necesita ayuda? Hable con nuestros expertos.

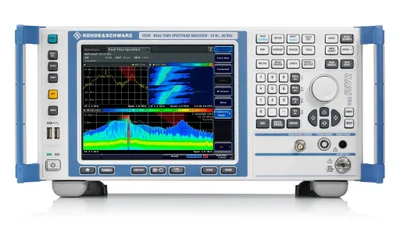

Rohde & Schwarz FSVR30 (1311.0006.30)

Real-Time Spectrum Analyzer; 10 Hz to 30 GHz

Modelo

FSVR30 (1311.0006.30)

Familia de productos

RF & Microwave Spectrum Analyzers

Fabricante

Rohde & Schwarz

Los modelos configurados tienen las siguientes opciones:

RF & Microwave Spectrum AnalyzersSpectrum Analyzers-Performance20GHz <= 50GHzDC <= 1kHz

Configuraciones

Especificaciones clave

Vista general del producto

Recursos

Escoger su configuración

Show:

Opciones de búsqueda y combinación, p. ej., «C4000; M400»

Opciones disponibles para Rohde & Schwarz FSVR30 (1311.0006.30)

Opción ID	Descripción
FSV-B4 (1310.9522.02)	OCXO, Precision Reference Frequency
FSV-B5 (1310.9539.02)	Additional Interfaces (IF/video/AM/FM output, AUX port, trigger output, two additional USB ports)
FSV-B17 (1310.9568.02)	Digital Baseband Interface
FSV-B24 (1310.9616.30)	RF preamplifier 9kHz to 30GHz (for R&S® FSV30 only) Not installable post factory
FSV-K9 (1310.8203.02)	Power sensor measurement with NRP power sensors
FSV-K30 (1310.8355.02)	Noise figure and gain measurements (Preamplifier R&S®FSV-B22 or R&S®FSV-B24 required)

Mostrando 1 - 2 de 2 resultados

Real-Time Spectrum Analyzer, 10 Hz to 30 GHz

ID de producto: P-250330

FSV-B4 (1310.9522.02) • OCXO, Precision Reference FrequencyFSV-B17 (1310.9568.02) • Digital Baseband InterfaceFSV-B24 (1310.9616.30) • RF preamplifier 9kHz to 30GHz (for R&S® FSV30 only) Not installable post factoryFSV-K9 (1310.8203.02) • Power sensor measurement with NRP power sensorsFSV-K30 (1310.8355.02) • Noise figure and gain measurements (Preamplifier R&S®FSV-B22 or R&S®FSV-B24 required)FSV-B5 (1310.9539.02) • Additional Interfaces (IF/video/AM/FM output, AUX port, trigger output, two additional USB ports)

Alquiler

Confirmado en Presupuesto

Presupuesto

Cantidad

Semanas

Fecha de inicio

Seminuevo

Disponibilidad confirmada en el presupuesto

Contáctenos

Correo electrónico (+34) 91 076 21 90

Soluciones Financieras

Pregunte ahora para conocer más

Real-Time Spectrum Analyzer, 10 Hz to 30 GHz

ID de producto: P-250331

FSV-B24 (1310.9616.30) • RF preamplifier 9kHz to 30GHz (for R&S® FSV30 only) Not installable post factoryFSV-B4 (1310.9522.02) • OCXO, Precision Reference FrequencyFSV-K9 (1310.8203.02) • Power sensor measurement with NRP power sensorsFSV-B17 (1310.9568.02) • Digital Baseband InterfaceFSV-B5 (1310.9539.02) • Additional Interfaces (IF/video/AM/FM output, AUX port, trigger output, two additional USB ports)

Alquiler

Confirmado en Presupuesto

Presupuesto

Cantidad

Semanas

Fecha de inicio

Seminuevo

Disponibilidad confirmada en el presupuesto

Contáctenos

Correo electrónico (+34) 91 076 21 90

Soluciones Financieras

Pregunte ahora para conocer más

Mostrando 1 - 2 de 2 resultados

* Los precios y la disponibilidad están sujetos a cambios sin previo aviso. Todos los precios pueden variar debido a los términos de envío, el IVA o el impuesto de ventas, los aranceles de importación y los tipos de cambio. Los productos pueden no estar disponibles en todas las ubicaciones. Cualquier ahorro listado se basa en el precio de lista completo de instrumentos nuevos; Los ahorros reales pueden variar según las opciones, la configuración, los tipos de cambio de divisas y otros factores. La garantía puede variar según la categoría o el producto específico disponible. Todos los términos deben ser confirmados en el presupuesto por escrito.

Especificaciones clave

Indica atributos disponibles a nivel de la parte. Vea la pestaña Configuraciones para detalles del equipo

Atributo	Valor
High Frequency (range)	20GHz <= 50GHz
Low Frequency (range)	DC <= 1kHz

Vista general del producto

The R&S®FSVR combines a full-featured signal and spectrum analyzer with a real-time spectrum analyzer. In real-time operation, the R&S®FSVR seamlessly measures and displays the spectrum in the time domain with a span of up to 40 MHz. As a result, it captures every event for analysis, no matter how brief it might be.

Besides its real-time capabilities, the R&S®FSVR offers all functions of the R&S®FSV signal and spectrum analyzer.

Key Features

Frequency range from 10 Hz to 7 GHz, 13.6 GHz, 30 GHz or 40 GHz

40 MHz real-time analysis bandwidth

Triggering on frequency masks

Benefits
Real-Time Spectrum Analysis up to 40 GHz	Spectrogram function for gapless spectrum display in the time domain. Frequency mask trigger (FMT) for triggering the measurement on individual, sporadic events in the spectrum. Persistence mode for visualizing how frequently signals occur. Power versus time for analyzing the length/time variance of signals. Real-time streaming of I/Q data for recording long RF sequences.
Full-Featured Signal and Spectrum Analyzer	Frequency sweep across the entire frequency range from 10 Hz to 40 GHz in just a few milliseconds Expansion of the maximum input frequency to 110 GHz using external mixers Outstanding level measurement accuracy up to 7 GHz Excellent dynamic range and low phase noise High measurement speed Power measurement functions and statistical evaluations for analyzing digitally modulated signals Versatile marker and trace evaluation functions Measurement software for determining noise figure or phase noise General vector signal analysis (VSA) and special analysis options for; GSM/EDGE, WCDMA/HSPA+, LTE, WiMAX™, WLAN as well as analog modulation methods. Large I/Q memory depth
Simple and Intuitive Touchscreen Operation	Touchscreen operation: using a finger as a mouse cursor Fast access to all important functions Built-in help function Undo/redo function
Low Total Cost of Ownership	Convenient on-site retrofitting of options Easy scalability to handle application-specific requirements Always up-to-date with firmware updates

Specifications
FSVR Real-Time Spectrum Analyzer
Series Overview
Model	Order Number	Frequency Range	Phase Noise	DANL @ 1 GHz	Max. Analysis Bandwidth	Description
FSVR7	1311.0006.07	10 Hz - 7 GHz	< –106 dBc (1 Hz) (f = 500 MHz, 10 kHz offset)	< –160 dBm/Hz	40 MHz	Real-time spectrum analyzer
FSVR13	1311.0006.13	10 Hz - 13.6 GHz	< –106 dBc (1 Hz) (f = 500 MHz, 10 kHz offset)	< –160 dBm/Hz	40 MHz	Real-time spectrum analyzer
FSVR30	1311.0006.30	10 Hz - 30 GHz	< –106 dBc (1 Hz) (f = 500 MHz, 10 kHz offset)	< –160 dBm/Hz	40 MHz	Real-time spectrum analyzer
FSVR40	1311.0006.40	10 Hz - 40 GHz	< –106 dBc (1 Hz) (f = 500 MHz, 10 kHz offset)	< –160 dBm/Hz	40 MHz	Real-time spectrum analyzer
