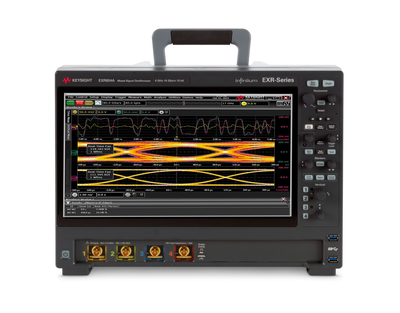

Keysight Technologies EXR604A

Configurar

Infiniium EXR-Series Real-Time Oscilloscope; 4 Channel, 16 GSa/s, 6 GHz

Modelo

EXR604A

Familia de productos

Oscilloscopes & Logic Analyzers

Fabricante

Keysight Technologies

Los modelos configurados tienen las siguientes opciones:

Oscilloscopes & Logic AnalyzersOscilloscopes > 3GHz - < 8GHz

Configuraciones

Especificaciones clave

Vista general del producto

Recursos

Escoger su configuración

Show:

Opciones de búsqueda y combinación, p. ej., «C4000; M400»

Opciones disponibles para Keysight Technologies EXR604A

Opción ID	Descripción
EXR000-100	Standard 100 Mpts/ch Memory
EXR000-500	Standard 500 GB Removable SSD
MXR000-000	Demo all - internal orders only, installed fixed perpetual license

Mostrando 1 - 2 de 2 resultados

Infiniium EXR-Series Real-Time Oscilloscope, 6 GHz, 16 GSa/s, 4 Ch; Standard 100 Mpts/ch Memory; Sta

ID de producto: P-646757

EXR000-100 • Standard 100 Mpts/ch MemoryMXR000-000 • Demo all - internal orders only, installed fixed perpetual licenseEXR000-500 • Standard 500 GB Removable SSD

Alquiler

Confirmado en Presupuesto

Presupuesto

Cantidad

Semanas

Fecha de inicio

Seminuevo

Disponibilidad confirmada en el presupuesto

Contáctenos

Correo electrónico (+34) 91 076 21 90

Soluciones Financieras

Pregunte ahora para conocer más

Infiniium EXR-Series Real-Time Oscilloscope, 6 GHz, 16 GSa/s, 4 Ch

ID de producto: P-624350

Alquiler

Contáctenos

Correo electrónico (+34) 91 076 21 90

Seminuevo

Disponibilidad confirmada en el presupuesto

Contáctenos

Correo electrónico (+34) 91 076 21 90

Nuevo

Entrega estimada 09/01/2026

76.627,00 €*

Mostrando 1 - 2 de 2 resultados

* Los precios y la disponibilidad están sujetos a cambios sin previo aviso. Todos los precios pueden variar debido a los términos de envío, el IVA o el impuesto de ventas, los aranceles de importación y los tipos de cambio. Los productos pueden no estar disponibles en todas las ubicaciones. Cualquier ahorro listado se basa en el precio de lista completo de instrumentos nuevos; Los ahorros reales pueden variar según las opciones, la configuración, los tipos de cambio de divisas y otros factores. La garantía puede variar según la categoría o el producto específico disponible. Todos los términos deben ser confirmados en el presupuesto por escrito.

Vista general del producto

The Infiniium EXR-Series combines the signal integrity and capabilities of our high-performance UXR-Series scope with the instrument integration and speed of our InfiniiVision scopes. The EXR is 7 instruments in 1: a mixed signal oscilloscope, protocol analyzer, logic analyzer, waveform generator, frequency response analyzer, counter, and digital voltmeter. Keysight’s Infiniium EXR and MXR-Series oscilloscopes are the only scopes in the market that support up to 6 GHz of bandwidth on all eight channels simultaneously.

The Infiniium EXR-Series. With eight models ranging in performance from 500 MHz to 6 GHz, 4 or 8 analog channels, and dozens of hardware and software options, your Infiniium EXRSeries is powerful, easy to own, and intuitive to use.

Key Features

Bandwidths of up to 500 MHz to 6 GHz on all 4 or 8 analog channels

Capabilities extended with 7-in-1 instrument integration: oscilloscope, logic and protocol analyzers, DVM, counter, bode plotter, waveform generator

Completely upgradeable, including channel upgrades

Benefits
World-Class Signal Integrity	Each model incorporates a 10-bit ADC with a sample rate of 16 GSa/s available on all channels simultaneously. A high-resolution ADC’s usefulness is dependent on the low-noise front end that supports the additional quantization levels. Our low noise front end includes custom ICs, like the 130 nm BiCMOS IC that incorporates user-selectable analog filters and bandwidth upgrades via a software license. This gives you: • Four times more vertical resolution than 8-bit oscilloscopes • Up to 16 bits with high-res mode • As low as 43 µV of noise, 9.0 bits system ENOB with hardware filtering
History Mode and Segmented Memory	The Infiniium EXR-Series comes standard with two useful tools that allow you to look forward and backward in time. With history mode, simply stop the oscilloscope at any time to review up to 1,024 previous trigger events. With segmented memory, you can capture > 100,000 events post-trigger for analysis, with no limit between events. If your design has an elusive event that only seems to happen when you’re not around, these tools arm the oscilloscope to look for it, then let you review what gets captured at your leisure. And with a full HD screen of 1920x1080 pixels, and support for a second, independent external monitor, that data can be organized and displayed however is best for you.
Completely Upgradeable	Assume that today’s project requires 4 channels of 1 GHz analysis bandwidth. What if your next project needs 8 channels and 6 GHz of analysis bandwidth? And a waveform generator? This is no problem with the Infiniium EXR-Series, which is fully upgradeable – no exceptions. The Infiniium EXR gives you the flexibility to use capital or operating expense budgets more intelligently when making your purchase now and in the future. Keysight is the world’s only oscilloscope manufacturer to offer an upgrade from 4 to 8 analog channels, and it is always more affordable than purchasing a new 8 channel oscilloscope. Along with this, you can upgrade bandwidth, memory, integrated equipment, applications and more after purchase, with just a license key. No matter how your needs change, the Infiniium EXR-Series protects your investment by growing with your lab’s needs of tomorrow.

Specifications
Infiniium EXR-Series
Feature	Parameter
Analog Channels	4 or 8, upgradeable
Bandwidth	500 MHz to 6 GHz, upgradeable
Sample Rate	16 GSa/s
Memory	100 Mpts, upgradeable to 400 Mpts or 1.6 Gpts flexible memory ¹
Resolution	10 bits, up to 16 with high resolution
ENOB	As high as 9.0
Digital Logic Channels	16, dedicated input, upgradeable
Update Rate	> 200,000 wfm/s
Eye Diagram Speed	> 750,000 UI/s
Screen Display	15.6” touch, full HD, dual screen support

Specifications
Infiniium EXR-Series
Model Overview
Model	EXR054A	EXR104A	EXR204A	EXR254A	EXR404A	EXR604A
Bandwidth	500 MHz	1 GHz	2 GHz	2.5 GHz	4 GHz	6 GHz
Input Channels	4 channels analog BNC (f) 16 channels digital (optional)	4 channels analog BNC (f) 16 channels digital (optional)	4 channels analog BNC (f) 16 channels digital (optional)	4 channels analog BNC (f) 16 channels digital (optional)	4 channels analog BNC (f) 16 channels digital (optional)	4 channels analog BNC (f) 16 channels digital (optional)
Memory Depth ¹	Standard: 100 Mpts/channel, all channels Optional: 400 Mpts/channel, all channels (400 Mpts/ch option) 1.6 Gpts shared between channels 1-4, 5-8 (1.6 Gpts Combined Flexible Memory option) ³	Standard: 100 Mpts/channel, all channels Optional: 400 Mpts/channel, all channels (400 Mpts/ch option) 1.6 Gpts shared between channels 1-4, 5-8 (1.6 Gpts Combined Flexible Memory option) ³	Standard: 100 Mpts/channel, all channels Optional: 400 Mpts/channel, all channels (400 Mpts/ch option) 1.6 Gpts shared between channels 1-4, 5-8 (1.6 Gpts Combined Flexible Memory option) ³	Standard: 100 Mpts/channel, all channels Optional: 400 Mpts/channel, all channels (400 Mpts/ch option) 1.6 Gpts shared between channels 1-4, 5-8 (1.6 Gpts Combined Flexible Memory option) ³	Standard: 100 Mpts/channel, all channels Optional: 400 Mpts/channel, all channels (400 Mpts/ch option) 1.6 Gpts shared between channels 1-4, 5-8 (1.6 Gpts Combined Flexible Memory option) ³	Standard: 100 Mpts/channel, all channels Optional: 400 Mpts/channel, all channels (400 Mpts/ch option) 1.6 Gpts shared between channels 1-4, 5-8 (1.6 Gpts Combined Flexible Memory option) ³
Max. Sample Rate	16 GSa/s	16 GSa/s	16 GSa/s	16 GSa/s	16 GSa/s	16 GSa/s
Typical Rise/Fall Time ²	860 ps (10-90) 620 ps (20-80)	430 ps (10-90) 310 ps( 20-80)	215 ps (10-90) 155 ps( 20-80)	172 ps (10-90) 124 ps (20-80)	107.5 ps (10-90) 77.5 ps (20-80)	71.7 ps (10-90) 51.7 ps (20-80)

Note:

¹ Denotes warranted specifications, all others are typical. Specifications are valid after a 30-minute warm-up period and ± 5 °C from firmware calibration temperature. Input impedance is valid when V/div scaling is adjusted to show all waveform vertical values within the oscilloscope display

² 10/90 calculation based on Tr = 0.43/BW. 20/80 calculation based on Tr = 0.31/BW.

³ Combined flexible memory shares 1.6 Gpts of memory between channels 1 through 4. This means you can have 1 channel with 1.6 Gpts, two channels with 800 Mpts, or three channels with 533 Mpts memory (on top of 400 Mpts on all channels). Double those channel counts for 8 channel models, as the same logic applies to channels 5-8.

Specifications
Infiniium EXR-Series
Model Overview
Model	Description
EXR054A	4 Channel; 500MHz
EXR104A	4 Channel; 1 GHz
EXR204A	4 Channel; 2 GHz
EXR254A	4 Channel; 2.5 GHz
EXR404A	4 Channel; 4 GHz
EXR604A	4 Channel; 6 GHz

Specifications
Infiniium EXR-Series
Model Overview
Model	Description
EXR058A	8 Channel; 500MHz
EXR108A	8 Channel; 1 GHz
EXR208A	8 Channel; 2 GHz
EXR258A	8 Channel; 2.5 GHz
EXR408A	8 Channel; 4 GHz
EXR608A	8 Channel; 6 GHz

Specifications
Infiniium EXR-Series
Performance Upgrades
Model	Description
EXR2MEM-001	Memory Upgrade, 200 Mpts/ch
EXR2MEM-002	Memory Upgrade, 400 Mpts/ch
EXR2MEM-004	Memory Upgrade, 1.6 Gpts Combined Flexible Memory
EXR2SSD-01T	Upgrade to 1 TB Removable SSD
EXR000-1A7	ISO 17025 Calibration (Not Accredited)
EXR000-AMG	ISO 17025 Calibration (Accredited)
Additional Equipment
EXR2RACK	Rackmount Kit, 8U
EXR2SSD	Additional Removable SSDs, 500 GB or 1 TB
3F2002-1910C	Hard Shell Transit Case
54855-67604¹	BNC(m) to SMA(f) Adapters, DC-10 GHz
4865B	GPIB Adapter

Note:

¹ Precision adapter designed to extend the oscilloscope mating plane to sma connector. The measured insertion loss of this adaptor and the front panel connector is around -.05db at 13GHz. This loss is included in the performance specification of the oscilloscope.
