Keysight Technologies (formerly Agilent) N9322C | 9kHz-7GHz Basic Spectrum Analyzer (BSA) | Electro Rent

Options-ID	Beschreibung
DEMACC	Demo Accessories
N9322-60701	BSA SHC - 9 kHz to 7 GHz
N9322C-0B0	Printed manual not included
N9322C-1CM	Rack mount kit
N9322C-1CP	Rack mount kit with handle
N9322C-1TC	Hard transit case
N9322C-600	Benchtop configuration
N9322C-900	Power cord, Hong Kong, Singapore, Malaysia and UK, BS 1363/A male plug
N9322C-901	Power cord, Australia and New Zealand, AS 3112 Figure 2.1 (a) male plug
N9322C-902	Power cord, Korea, Continental Europe, Indonesia and Vietnam, CEE 7 male plug
N9322C-903	Power cord, United States,Canada and Mexico, NEMA 5-15P male plug
N9322C-906	Power cord, Switzerland, SEV Type 12 male plug
N9322C-912	Power cord, Denmark, SR 107-2-D male plug
N9322C-917	Power cord, India, IEC 83-B1 male plug
N9322C-918	Power cord, Japan, JIS C8303 male plug
N9322C-919	Power cord, Israel, Israel SI 32 male plug
N9322C-920	Power cord, Argentina, IRAM 2073 male plug
N9322C-921	Power cord, Chile, CEI 23-16 male plug
N9322C-922	Power cord, China, GB 1002 (figure 3) male plug
N9322C-923	Power cord, South Africa, SANS 164-1 male plug
N9322C-927	Power cord, Brazil andThailand, NEMA 5-15P 250 male plug
N9322C-930	Power cord, Brazil, NBR 14136 male plug
N9322C-931	Power cord, Taiwan, CNS 10917-2 male plug
N9322C-932	Power cord, Cambodia, CS 0017 male plug
N9322C-AB2	Printed user`s guide, Simplified Chinese
N9322C-ABA	Printed user`s guide, English
N9322C-ABJ	Printed user`s guide, Japanese
N9322C-AMA	AM/FM modulation analysis
N9322C-BB1	Baseband input
N9322C-DMA	ASK/FSK modulation analysis
N9322C-DST	Measurements license, temporary - 9 month
N9322C-EMC	EMI filters and quasi-peak detector
N9322C-G01	GPIB interface
N9322C-MNT	Spectrum monitor with spectrogram record and playback
N9322C-P07	Preamplifier, 7 GHz
N9322C-PFR	Precision frequency reference
N9322C-PLG	Continental European power cord - ONLY FOR EU DISTR W MULT PWR CORD STANDARDS
N9322C-PWM	USB average power sensor support (U2000 series )
N9322C-PWP	USB peak and average power sensor support (U2020 X-series)
N9322C-RM7	Reflection measurement (requires option TG7)
N9322C-SCN	Channel scanner
N9322C-SEC	Security features
N9322C-TG7	Tracking generator, 7 GHz
N9322C-TMG	Time-gated spectrum analysis
N9322C-TPN	Task planner for test automation
N9322C-UK6	Commercial calibration certificate with test data
R-50C-011-3	Calibration Assurance Plan - Return to Keysight - 3 years
R-50C-011-5	Calibration Assurance Plan - Return to Keysight - 5 years
R-50C-011-7	Calibration Assurance Plan - Return to Keysight - 7 years
R-50C-011-10	Calibration Assurance Plan - Return to Keysight - 10 years
R-51B-001-5Z	Warranty Assurance Plan - Return to Keysight - 5 years
R-51B-001-7Z	Warranty Assurance Plan - Return to Keysight - 7 years
R-51B-001-10Z	Warranty Assurance Plan - Return to Keysight - 10 years

Merkmal	Wert
High Frequency (range)	1GHz <= 10GHz
Low Frequency (range)	1kHz <= 100kHz
Form Factor	Benchtop

Produktübersicht

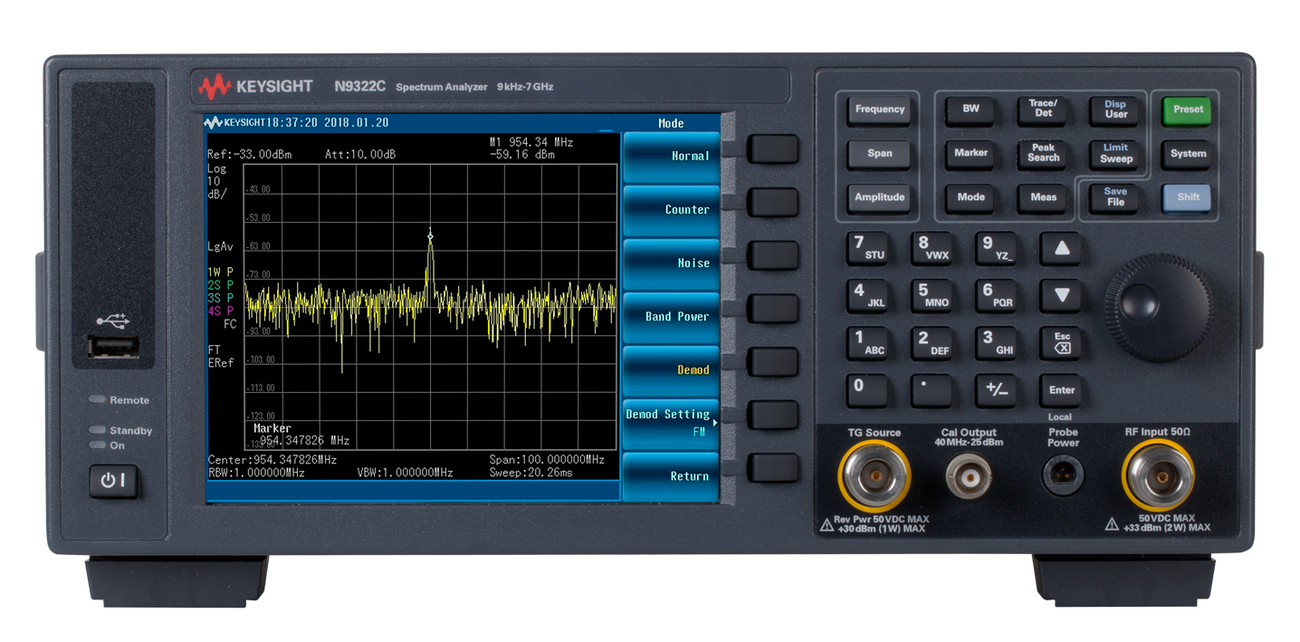

The N9322C Basic Spectrum Analyzer is a value-priced, channel power measurement spectrum analyzer with general-purpose functionality for the 9 kHz to 7 GHz frequency range. You can rely on the N9322C basic spectrum analyzer for proven testing efficiency, usability, and the flexibility to adapt to new requirements.

Key Features

Quickly uncover key insights through fast, value-priced, general purpose performance up to 7 GHz with -152 dBm DANL and ±0.6 dB overall amplitude accuracy

Achieve straightforward and efficient operation with marker demodulation, one-button optimization, and user-definable soft keys

Implement up to 20 pre-defined measurements automatically and reduce test setup time by 95% with the task planner feature

Enjoy industry standard SCPI language support and USB and LAN connectivity

Specifications
Basic Spectrum Analyzer (BSA)
Features	Parameters
Applications Available	n/a
Applications-Cellular	n/a
Applications-Digital Video	n/a
Applications-General Purpose	AM/FM Tune and Listen Analog Demodulation Cable Fault Location Cable and Antenna Analysis Field Strength Measurement SCPI Code Compatibility Spectral Emissions Mask Spectrogram Stimulus Response ASK/FSK demodulation EMI interference analysis
Applications-Wireless Connectivity	n/a
Bandwidth Options	n/a
DANL @1 GHz	-152 dBm
Frequency	9 kHz to 7 GHz
Frequency Options	9 kHz to 7 GHz
Maximum Analysis Bandwidth	1 MHz
Maximum Dynamic Range 3rd Order @1 GHz	n/a
Overall Amplitude Accuracy	±0.6 dB
Performance Level	◆◇◇◇◇◇
Phase Noise @1 GHz (1 MHz offset)	-115 dBc/Hz
Phase Noise @1 GHz (10 kHz offset)	-90 dBc/Hz
Phase Noise @1 GHz (30 kHz offset)	n/a
Standard Attenuator Range	n/a
Standard Attenuator Step	1 dB
Type	Benchtop
TOI @1 GHz (3rd Order Intercept)	+15 dBm
Triggering	RF Burst External Video

Specification
Basic Spectrum Analyzer (BSA)
Model Overview
Model	Description
N9321C	Basic Spectrum Analyzer; 9 kHz to 4 GHz Included Accessories: USB Cable N-BNC Adapter BNC Cable Power Cord
N9322C	Basic Spectrum Analyzer; 9 kHz to 7 GHz Included Accessories: USB Cable N-BNC Adapter BNC Cable Power Cord
N9323C	Basic Spectrum Analyzer; 9 kHz to 13.6 GHz Included Accessories: USB Cable N-BNC Adapter BNC Cable Power Cord
N9324C	Basic Spectrum Analyzer; 9 kHz to 20 GHz Included Accessories: USB Cable N-BNC Adapter BNC Cable Power Cord
