Keysight Technologies E5052B

Options-ID	Beschreibung
DEMACC	Demo Accessories
E5001A	SSA-J Precision Clock Jitter Analysis Software
E5001A-1FP	Jitter Application 1FP
E5052B-1CP	Handle/Rack Mount Kit
E5052B-011	Delete Functions
E5052B-810	Add Keyboard
E5052B-820	Add Mouse
E5052B-DM1	Demo kit consists of mouse & keyboard
W7X	Windows 7 OS
W10	Windows 10 OS
WXP	Windows XP OS

Produktübersicht

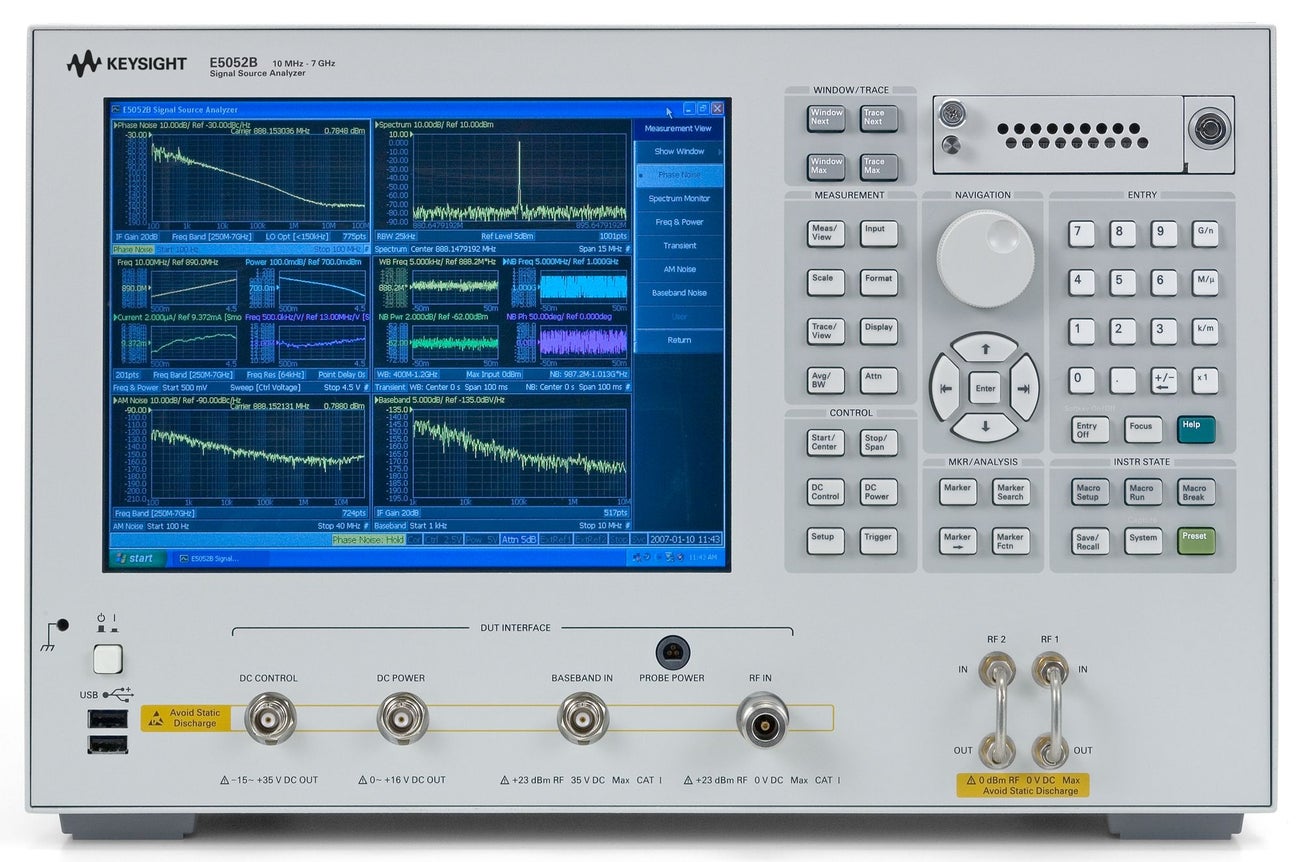

The E5052B 10 MHz to 7 GHz Signal Source Analyzer features a number of enhanced performance characteristics, partially shown in the key features above. And it offers world's highest measurement throughput and best usability in characterizing VCO or other types of high frequency signal sources, as well as clock jitter evaluation in high-speed data communication systems.

E5052B's frequency range can be extended up to 26.5 GHz with the E5053A, and up to 110 GHz with the E5053A plus Keysight 11970 series mixers.

The E5052B SSA is suitable for use in a wide range of applications including RF/uW/mmW oscillators, VCO's, system reference clocks, LAN modules, high-speed timing modules, SerDes chips, and high-speed data converters (ADC/DAC).

Key Features

Phase noise measurement with ultra-low noise floor and a cross-correlation method

Simplifies complicated, time-consuming measurements and dramatically reduces test time

Multi-window display speeds your measurement evaluation and allows you to view multiple results simultaneously

Simultaneous transient measurements for frequency, phase, and power over time

Video trigger function allows capture of unexpected frequency changes

Evaluates clock jitter in high-speed data communication systems

Benefits
Frequency Range	RF Input frequency range: 10 MHz to 110 GHz Analysis offset frequency range: 1 Hz to 100 MHz Phase noise measurement with ultra low noise floor and a cross-correlation method Frequency transient capture range: up to 80 MHz in narrow band, up to 4.8 GHz in wide band
Noise Measurement Functions	Phase noise with ultra low noise floor and a cross-correlation method AM noise measurement and phase noise measurement without changing RF connection Baseband noise measurement from 1 Hz to 100 MHz Spectrum monitoring up to 15 MHz span in a real-time mode
Analysis Capabilities	Simultaneous transient measurements for frequency, phase and power over time Capture of unexpected frequency change with video trigger function Complete VCO characterization with outstanding low-noise DC sources(frequency/power/DC-supply-current over Vc and Vs) Clock jitter measurement with femto-second resolution

Specifications
E5052B Signal Source Analyzer
Features	Parameters
Additional Information	Easy-one-step measurement Exceptionally fast measurements
DC Sources for Oscillator Characterization	Yes: -15 to +35 V for V tune 0 to 16 V for Vcc
Frequency Range	10 MHz to 7, 26.5, or 110 GHz
Measurement Capabilities	Phase noise Frequency Power DC current Transients Spectrum monitor AM Noise Baseband Noise
Offset Frequency Range	1 Hz to 100 MHz
Phase Noise Sensitivity	-178 dBc/Hz (Typical)
Reference Source	Built-in
Transient/RF Transient Measurements	Yes (frequency/phase/power over time)

Specifications
E5052B Signal Source Analyzer
Model Overview
Model	Description
E5052B	Signal Source Analyzer 10 MHz to 7 GHz
E5053A	Microwave Downconverter 3 GHz to 26.5 GHz
Options
E5052B-011	Delete functions
E5052BU-058	Add removable SSD kit (For S/N MY474xxxxx)
E5052BU-041	Upgrade OS, from Windows XP to Windows 10, for E5052B
E5052BU-042	Upgrade OS, from Windows 7 to Windows 10, for E5052B
E5052BU-068	Solid state drive kit (SATA, Flex ATX, Win10)
