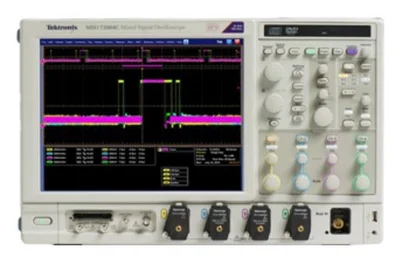

Tektronix MSO72504DX

Gerät konfigurieren

Mixed Signal Oscilloscope; 4 + 16 Channels, 25GHz

Modell

MSO72504DX

Produktfamilie

Oscilloscopes & Logic Analyzers

Hersteller

Tektronix

Konfigurierte Modelle enthalten die folgenden Merkmale:

Oscilloscopes & Logic AnalyzersOscilloscopes 20GHz+20100 GS/s20GHz <= 50GHz

Konfigurationen

Wichtigste Daten

Produktübersicht

Ressourcen

Wir helfen Ihnen gerne bei Ihrer genauen Konfiguration

Bitte nutzen Sie die Option "Schnelles Angebot einholen" oder "Einheit konfigurieren". Wir werden uns dann mit Ihnen in Verbindung setzen und ein Angebot für Ihren genauen Bedarf erstellen.

Gerät konfigurieren

Sie können sich auch an uns wenden, und unsere Experten können Sie mit der richtigen Anwendungs- und Beschaffungslösung für dieses Produkt beraten.

Wichtigste Daten

Zeigt auf Part-Ebene verfügbare Merkmale an. Weitere Part-Details finden Sie unter dem Tab 'Konfiguration'

Merkmal	Wert
Channel/Port Count	20
Maximum Sample/Data Rate	100 GS/s
High Frequency (range)	20GHz <= 50GHz

Produktübersicht

The MSO/DPO70000 is one of the most advanced oscilloscopes in its class—enabling today's engineer to see signals better with minimal noise, debug signal anomalies faster and utilize measurement and analysis tools for automated compliance testing and other verifications. In addition, the MSO/DPO70000 is perfect for analog/digital design and debug, data communications and high-speed serial communications. See how you can use the MSO/DPO70000 for your next project to find and analyze a wide range of mixed-signal anomalies.

Key Features

Superior signal integrity and excellent signal-to-noise ratio – observe the truest representation of your waveform

Pinpoint® triggering – minimize time spent trying to acquire problem signals for efficient troubleshooting and shortened debug time

Visual Trigger – precisely qualify triggers and find unique events in complex waveforms

Search and Mark – provides waveform or serial bus pattern matching and software triggers for signals of interest

Automated Serial Analysis options for PCI Express, 8b/10b encoded serial data, I2C, SPI, CAN, LIN, FlexRay, RS-232/422/485/UART, USB 2.0, HSIC, MIL-STD-1553B, and MIPI® C-PHY, D-PHY and M-PHY

P7700, P7600, and P7500 TriMode™ probing system – perfectly matched signal connectivity, with calibration to probe tip

P6780, P6750, and P6717A high-performance 17-channel logic probes with bandwidths up to 2.5 GHz for connections to today's fast digital signals (MSO70000 Series only)

Key Performance Specifications

Up to 33 GHz analog bandwidth and rise time as fast as 9 ps. Enables measurement on the latest high-speed serial standards

True 33 GHz Real-time Analog Bandwidth on 2 Channels with 33 GHz models

Industry-leading sample rate and timing resolution;

100 GS/s on 2 Channels (33, 25, 23, 20, 16, and 12.5 GHz models)

Four-channel Simultaneous Performance;

Up to 23 GHz Bandwidth

Up to 50 GS/s Real-time Sample Rate

Up to 500 Megasample Record Length with MultiView Zoom™ for quick navigation

Fastest Waveform Capture Rate with >300,000 wfms/s maximum per channel

16 Logic Channels with 80 ps Timing Resolution for Debug of digital and analog signals (MSO70000 Series only)

Unique iCapture® capability enables viewing analog characteristics of digital channels with single probe connection

6.25 Gb/s Real-time Serial Trigger – Assures triggering on the first instance of a specified NRZ or 8b/10b pattern to allow isolation of pattern-dependent effects

Application Support for High-speed Serial Industry Standards, wideband RF, Power supplies, and memory – Enables standard-specific certification, measurement automation, and ease of use

Specifications
MSO/DPO70000 Series Digital and Mixed Signal Oscilloscopes
Model Overview
Model	Analog Bandwidth	Analog Sample Rate – 2/4 Channels	Standard Memory – Analog + Digital	Analog Channels	Logic Channels
DPO70404C	4 GHz	25 GS/s	31 MS	4	-
MSO70404C	4 GHz	25 GS/s	62 MS	4	16
DPO70604C	6 GHz	25 GS/s	31 MS	4	-
MSO70604C	6 GHz	25 GS/s	62 MS	4	16
DPO70804C	8 GHz	25 GS/s	31 MS	4	-
MSO70804C	8 GHz	25 GS/s	62 MS	4	16
DPO71254C	12.5 GHz	100 GS/s / 50 GS/s	31 MS	4	-
MSO71254C	12.5 GHz	100 GS/s / 50 GS/s	62 MS	4	16
DPO71604C	16 GHz	100 GS/s / 50 GS/s	31 MS	4	-
MSO71604C	16 GHz	100 GS/s / 50 GS/s	62 MS	4	16
DPO72004C	20 GHz	100 GS/s / 50 GS/s	31 MS	4	-
MSO72004C	20 GHz	100 GS/s / 50 GS/s	62 MS	4	16
DPO72304DX	23 GHz	100 GS/s / 50 GS/s	31 MS	4	-
MSO72304DX	23 GHz	100 GS/s / 50 GS/s	62 MS	4	16
DPO72504DX	25 GHz	100 GS/s / 50 GS/s	31 MS	4	-
MSO72504DX	25 GHz	100 GS/s / 50 GS/s	62 MS	4	16
DPO73304DX	33 GHz	100 GS/s / 50 GS/s	31 MS	4	-
MSO73304DX	33 GHz	100 GS/s / 50 GS/s	62 MS	4	16

Specifications
MSO/DPO70000 Series Digital and Mixed Signal Oscilloscopes
Series Overview
Model	Description
Mixed Signal Oscilloscopes
MSO70404C	4 GHz Mixed Signal Oscilloscope
MSO70604C	6 GHz Mixed Signal Oscilloscope
MSO70804C	8 GHz Mixed Signal Oscilloscope
MSO71254C	12.5 GHz Mixed Signal Oscilloscope
MSO71604C	16 GHz Mixed Signal Oscilloscope
MSO72004C	20 GHz Mixed Signal Oscilloscope
MSO72304DX	23 GHz Mixed Signal Oscilloscope
MSO72504DX	25 GHz Mixed Signal Oscilloscope
MSO73304DX	33 GHz Mixed Signal Oscilloscope
Digital Phosphor Oscilloscope
DPO70404C	4 GHz Digital Phosphor Oscilloscope
DPO70604C	6 GHz Digital Phosphor Oscilloscope
DPO70804C	8 GHz Digital Phosphor Oscilloscope
DPO71254C	12.5 GHz Digital Phosphor Oscilloscope
DPO71604C	16 GHz Digital Phosphor Oscilloscope
DPO72004C	20 GHz Digital Phosphor Oscilloscope
DPO72304DX	23 GHz Digital Phosphor Oscilloscope
DPO72504DX	25 GHz Digital Phosphor Oscilloscope
DPO73304DX	33 GHz Digital Phosphor Oscilloscope
