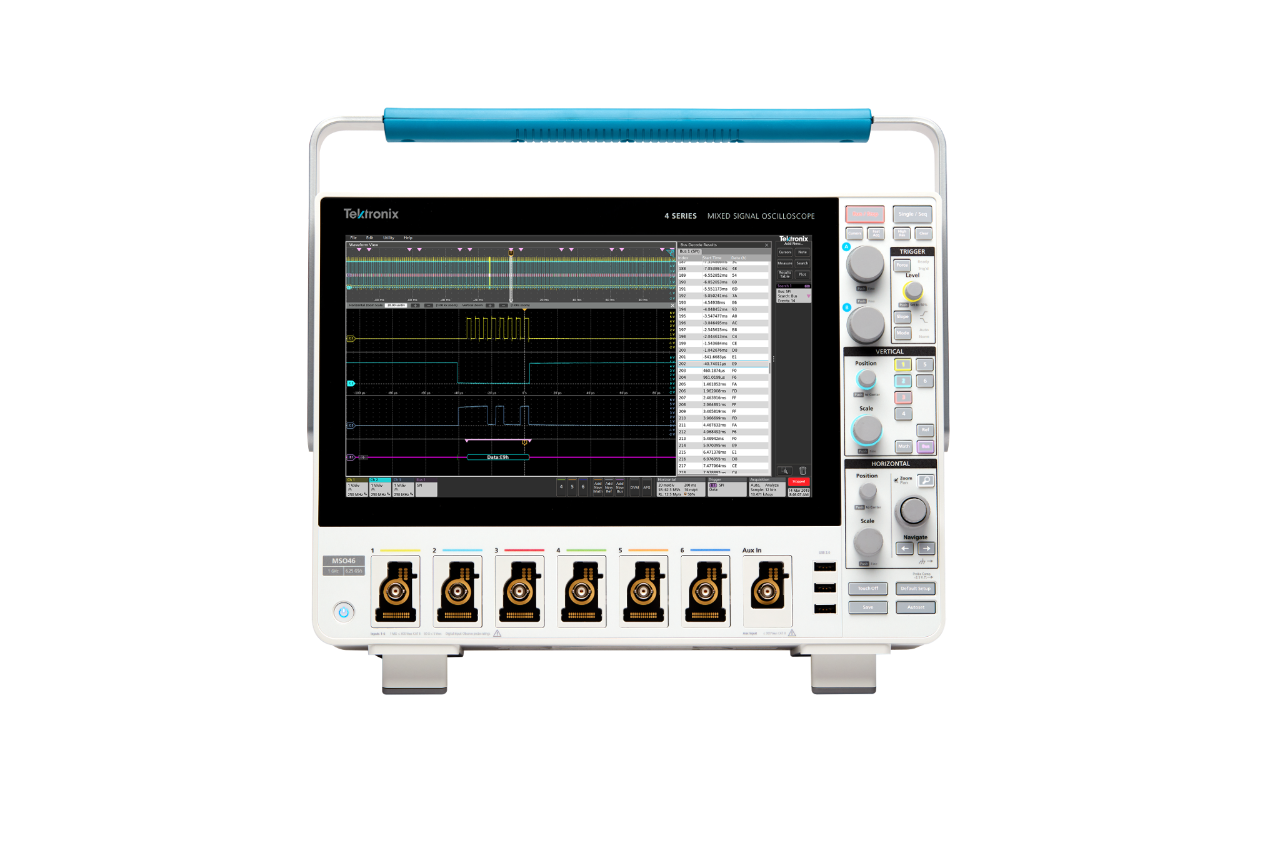

Tektronix MSO46

Options-ID	Beschreibung
4-3PHASE
4-AFG	Installed Option; Arbitrary Function Generator
4-DDU	Demo Licenses
4-MTM	Installed Option; Mask Testing
4-PS2	Installed Option; Power solution bundle (PWR-BAS, THDP0200, TCP0030A, 067-1686-xx Deskew Fixture)
4-PWR-BAS	Installed Option; Basic power measurements and analysis
4-RL-1	Installed Option; Extend record length to 62.5M/ch maximum
4-SEC	Installed Option; Password protected enabling and disabling of all communication ports and firmware upgrades
4-SRAERO	Installed Option; Aerospace serial triggering and analysis (MIL-STD-1553, ARINC429)
4-SRAUDIO	Installed Option; Audio serial triggering and analysis (I2S, LJ, RJ, TDM)
4-SRAUTO	Installed Option; Automotive serial triggering and analysis (CAN, LIN, FlexRay)
4-SRAUTOSEN	Installed Option; Automotive sensor serial triggering and analysis (SENT)
4-SRCOMP	Installed Option; Computer serial triggering and analysis (RS-232/422/485/UART)
4-SREMBD	Installed Option; Embedded serial triggering and analysis (I2C, SPI)
4-SRENET	Installed Option; Ethernet serial triggering and analysis (10BASE-T, 100BASE-TX)
4-SRI3C	Installed option; MIPI I3C serial analysis
4-SRNRZ	Installed Option; NRZ Protocol Decoder and Search, No Hardware Trigger
4-SRPM	Installed Option; SPMI protocol trigger and decode of serial packet content
4-SRSPACEWIRE	Installed Option; SPACEWIRE Protocol Decoder>500 MHz bandwidth, No Hardware Trigger
4-SRUSB2	Installed Option; USB serial triggering and analysis (USB 2.0 LS, FS, HS)
4-SV-BW-1	Installed Option; Increase Spectrum View Capture Bandwidth to 500 MHz (requires option 4-SV-BAS)
4-SV-RFVT	Installed Option; Spectrum View RF versus Time Analysis
MSO46 4-BW-200	Installed Option; 200 MHz Bandwidth
MSO46 4-BW-350	Installed Option; 350 MHz Bandwidth
MSO46 4-BW-500	Installed Option; 500 MHz Bandwidth
MSO46 4-BW-1000	Installed Option; 1 GHz Bandwidth
MSO46 4-BW-1500	Installed Option; 1.5 GHz Bandwidth
MSO46 4-DB	Demonstration board with USB cable
MSO46 C3	Calibration service 3 years. Includes traceable calibration or functional verification where applicable, for recommended calibrations. Coverage includes the initial calibration plus 2 years calibration coverage.
MSO46 C5	Calibration service 5 years. Includes traceable calibration or functional verification where applicable, for recommended calibrations. Coverage includes the initial calibration plus 4 years calibration coverage.
MSO46 D1	Calibration Data Report
MSO46 D3	Calibration Data Report 3 Years (with Option C3)
MSO46 D5	Calibration Data Report 5 Years (with Option C5)
MSO46 R5	Standard Warranty Extended to 5 Years. Covers parts, labor and 2-day shipping within country. Guarantees faster repair time than without coverage. All repairs include calibration and updates. Hassle free - a single call starts the process
MSO46 T3	Three Year Total Protection Plan, includes repair or replacement coverage from wear and tear, accidental damage, ESD or EOS plus preventative maintenance. Including a 5 day turnaround time and priority access to customer support
MSO46 T5	Five Year Total Protection Plan, includes repair or replacement coverage from wear and tear, accidental damage, ESD or EOS plus preventative maintenance. Including a 5 day turnaround time and priority access to customer support

Produktübersicht

The 4 Series MSO offers better visibility into complex systems by offering four and six channel models with a 13.3-inch high-definition (1,920 x 1,080) display. Many applications, such as embedded systems, three-phase power electronics, automotive electronics, power supply design, and DC-to-DC power converters, require the observation of more than four analog signals to verify and characterize device performance, and to debug challenging system issues.

With the largest display and highest available channel count in its class, the 4 Series offers unprecedented insight in a bench-friendly package.

With a remarkably innovative pinch-swipe-zoom touchscreen user interface, a high-definition display, and 4 or 6 FlexChannel®inputs that let you measure one analog or eight digital signals per channel, the 4 Series MSO is ready for today’s toughest challenges, and tomorrow’s too. It sets a new standard for performance, analysis, and overall user experience.

Specifications
4 Series MSO Mixed Signal Oscilloscope
Feature	Parameter
Input Channels	4 or 6 FlexChannel® inputs Each FlexChannel provides: One analog signal that can be displayed as a waveform view, a spectrum view1, or both simultaneously Eight digital logic inputs with TLP058 logic probe
Bandwidth (all analog channels)	200 MHz 350 MHz 500 MHz 1 GHz 1.5 GHz (upgradable)
Sample Rate (all analog / digital channels)	Real-time: 6.25 GS/s
Record Length (all analog / digital channels)	31.25 Mpoints standard (62.5 Mpoints optional upgrade)
Waveform Capture Rate	>500,000 waveforms/s
Vertical Resolution	12-bit ADC Up to 16-bits in High Res mode
Standard Trigger Types	Edge Pulse Width Runt Timeout Window Logic Setup & Hold Rise/Fall Time Parallel Bus Sequence Visual Trigger Video (optional) RF vs. Time (optional) Auxiliary Trigger ≤300 VRMS (Edge Trigger only)
Standard Analysis	Cursors: Waveform, V Bars, H Bars, V&H Bars Measurements: 36 Spectrum View: Frequency-domain analysis with independent controls for frequency and time domains FastFrameTM: Segmented memory acquisition mode with maximum trigger rate >5,000,000 waveforms per second Plots: Time Trend, Histogram, and Spectrum Math: Basic waveform arithmetic, FFT, and advanced equation editor Search: Search on any trigger criteria
Optional Analysis	Advanced Spectrum View RF vs. Time traces, triggers, Spectrograms, and IQ capture Mask/Limit Testing Advanced Power Measurements and Analysis Three-Phase Electrical Analysis (MSO46 only)
Optional Serial Bus Trigger, Decode, and Analysis	I²C SPI eSPI I3C RS-232/422/485/UART SPMI SMBus CAN CAN FD LIN FlexRay SENT PSI5 CXPI USB 2.0 eUSB2 Ethernet EtherCAT Audio MIL-STD-1553 ARINC`429 Spacewire NRZ Manchester SVID SDLC 1-Wire MDIO
Arbitrary/Function Generator ¹	50 MHz waveform generation Waveform Types: Arbitrary, Sine, Square, Pulse, Ramp, Triangle, DC Level, Gaussian, Lorentz, Exponential Rise/Fall, Sin(x)/x, Random Noise, Haversine, Cardiac
Digital Voltmeter ²	4-digit AC RMS, DC, and DC+AC RMS voltage measurements
Trigger Frequency Counter ²	8-digit
Display	13.3-inch (338 mm) TFT color High Definition (1,920 x 1,080) resolution Capacitive (multi-touch) touchscreen
Connectivity	USB 2.0 Host, USB 2.0 Device (5 ports); LAN (10/100/1000 Base-T Ethernet); HDMI³
Dimensions (H x W x D)	11.299 in x 17.7 in x 6.1 in 286.99 mm x 450 mm x 155 mm
Weight	<16.8 lbs 7.6 kg

Notes:

¹ Optional and upgradable.

² Free with product registration.

³ Requires connection to high definition display (1,920 x 1,080 resolution)

Specifications
4 Series MSO Mixed Signal Oscilloscope
Model Overview
Model	Analog Bandwidth	Analog Channels	Digital Channels	Sample Rate	Record Length
MSO44	200 MHz to 1.5 GHz	4	Up to 32 (optional)	6.25 GS/s	31.25 M to 62.5 M
MSO46	200 MHz to 1.5 GHz	6	Up to 48 (optional)	6.25 GS/s	31.25 M to 62.5 M

Specifications
4 Series MSO Mixed Signal Oscilloscope
Model Overview
Model	MSO44	MSO46
FlexChannel Inputs	4	6
Maximum Analog Channels	4	6
Maximum Digital Channels (with optional logic probes)	32	48
Auxiliary Trigger Input	≤300 V RMS (Edge Trigger only)	≤300 V RMS (Edge Trigger only)
Bandwidth (calculated rise time)	200 MHz 350 MHz 500 MHz 1 GHz 1.5 GHz	200 MHz 350 MHz 500 MHz 1 GHz 1.5 GHz
DC Gain Accuracy	50 Ω: ±1%, (±2.5% at 1 mV/Div and 500 µV/Div settings), de-rated at 0.100%/°C above 30 °C 1 MΩ and 250 kΩ: ±1.0%, (±2.0% at 1 mV/Div and 500 µV/Div settings)	50 Ω: ±1%, (±2.5% at 1 mV/Div and 500 µV/Div settings), de-rated at 0.100%/°C above 30 °C 1 MΩ and 250 kΩ: ±1.0%, (±2.0% at 1 mV/Div and 500 µV/Div settings)
ADC Resolution	12 bits	12 bits
Vertical Resolution	8 bits @ 6.25 GS/s 12 bits @ 3.125 GS/s 13 bits @ 1.25 GS/s (High Res) 14 bits @ 625 MS/s (High Res) 15 bits @ 312.5 MS/s (High Res) 16 bits @ ≤125 MS/s (High Res)	8 bits @ 6.25 GS/s 12 bits @ 3.125 GS/s 13 bits @ 1.25 GS/s (High Res) 14 bits @ 625 MS/s (High Res) 15 bits @ 312.5 MS/s (High Res) 16 bits @ ≤125 MS/s (High Res)
Sample Rate	6.25 GS/s on all analog / digital channels (160 ps resolution)	6.25 GS/s on all analog / digital channels (160 ps resolution)
Record Length (std.)	31.25 Mpoints on all analog / digital channels	31.25 Mpoints on all analog / digital channels
Record Length (opt.)	62.5 Mpoints on all analog / digital channels	62.5 Mpoints on all analog / digital channels
Waveform Capture Rate, typical	>500,000 wfms/s	>500,000 wfms/s
Arbitrary/Function Generator (opt.)	13 predefined waveform types with up to 50 MHz output	13 predefined waveform types with up to 50 MHz output
DVM	4-digit DVM (free with product registration)	4-digit DVM (free with product registration)
Trigger Frequency Counter	8-digit frequency counter (free with product registration)	8-digit frequency counter (free with product registration)

Specifications
4 Series MSO Mixed Signal Oscilloscope
Model Overview
Model	Description
MSO44	4 FlexChannels
MSO46	6 FlexChannels
Included Accessories
	One passive analog probe per channel; TPP0250 250 MHz probes with 200 MHz bandwidth models TPP0500B 500 MHz probes with 350 MHz and 500 MHz bandwidth models TPP1000 1 GHz probes with 1 GHz and 1.5 GHz models
	Installation and safety manual (translated in English, Japanese, Simplified Chinese )
	Embedded Help
	Power Cord
	Calibration certificate documenting traceability to National Metrology Institute(s) and ISO9001/ISO17025 quality system registration
Bandwidth Options
4-BW-200	200 MHz
4-BW-350	350 MHz
4-BW-500	500 MHz
4-BW-1000	1 GHz
4-BW-1500	1.5 GHz
