Keysight Technologies (formerly Agilent) U8903B | Performance Audio Analyzer 2CH | Electro Rent

Options-ID	Beschreibung
C13SPWR-PLG	Power Cord, Continental Europe- Only For EU DISTR W MULT Power Cord Standards
DEMACC	Demo Accessories
EDEL-ONLY-01	License certificate delivery - email only
N3431A	Software for increase bandwidth to 1.5MHz,
N3432B	Software, POLQA measurement, fixed perpetual license
N3434A	AES3/SPDIF/DSI digtl audo
R-50C-011-3	Calibration Assurance Plan - Return to Keysight - 3 years
R-50C-011-5	Calibration Assurance Plan - Return to Keysight - 5 years
R-50C-011-MU-3	Keysight Calibration + Uncertainties - 3 years
R-50C-011-MU-5	Keysight Calibration + Uncertainties - 5 years
R-50C-016-3	Keysight Calibration + Uncertainties + Guardbanding - 3 years
R-50C-016-5	Keysight Calibration + Uncertainties + Guardbanding - 5 years
R-50C-021-3	ANSI Z540-1-1994 Calibration - 3 years
R-50C-021-5	ANSI Z540-1-1994 Calibration - 5 years
R-51B-001-5Z	Warranty Assurance Plan - Return to Keysight - 5 years
U8903A-101	Male BNC to male BNC cable, 1.2m, jade gray
U8903A-102	Male BNC to male RCA cable, 2m, black
U8903A-103	Male XLR to female XLR, 2m, black
U8903A-107	Cable, accessory- Male XLR-2 male BNC analyzer, 0.26m
U8903A-108	Cable, accessory- Female XLR-2 male BNC generator, 0.26m
U8903A-109	BNC accessory kit
U8903A-908	Rackmount kit - 132.6H without handle
U8903B-1A7	Calibration + Uncertainties + Guardbanding
U8903B-1FP	Factory installed N3431A software
U8903B-3FP	Factory installed N3433A software
U8903B-4FP	Factory installed N3434A software
U8903B-105	Digital serial interface cable
U8903B-201	Performance audio analyzer with 4 analog analyzer channel, digital audio (AES3/ SPDIF and DSI digital audio)
U8903B-210	Performance audio analyzer with 4 analog analyzer channel, digital audio (AES3/ SPDIF and DSI digital audio) and Bluetoo
U8903B-A6J	ANSI Z540-1-1994 Calibration
U8903B-AN4	Analog analyzer; 4 channels
U8903B-AN8	Analog analyzer; 8 channels
U8903B-AUX	BNC, monitor input and output, and trigger auxiliary output
U8903B-BL2	Bluetooth card, secondary option slot
U8903B-BLU	Bluetooth card
U8903B-DGT	Digital audio card
U8903B-STD	Performance audio analyzer; 2 channels
U8903B-XN4	Cover, 4 channel card
U8903B-XN6	Cover, 6 channel card
U8903B-XN8	Cover, 8 channel card
W4100-3MW	Warranty, 3mth for included accessories

Produktübersicht

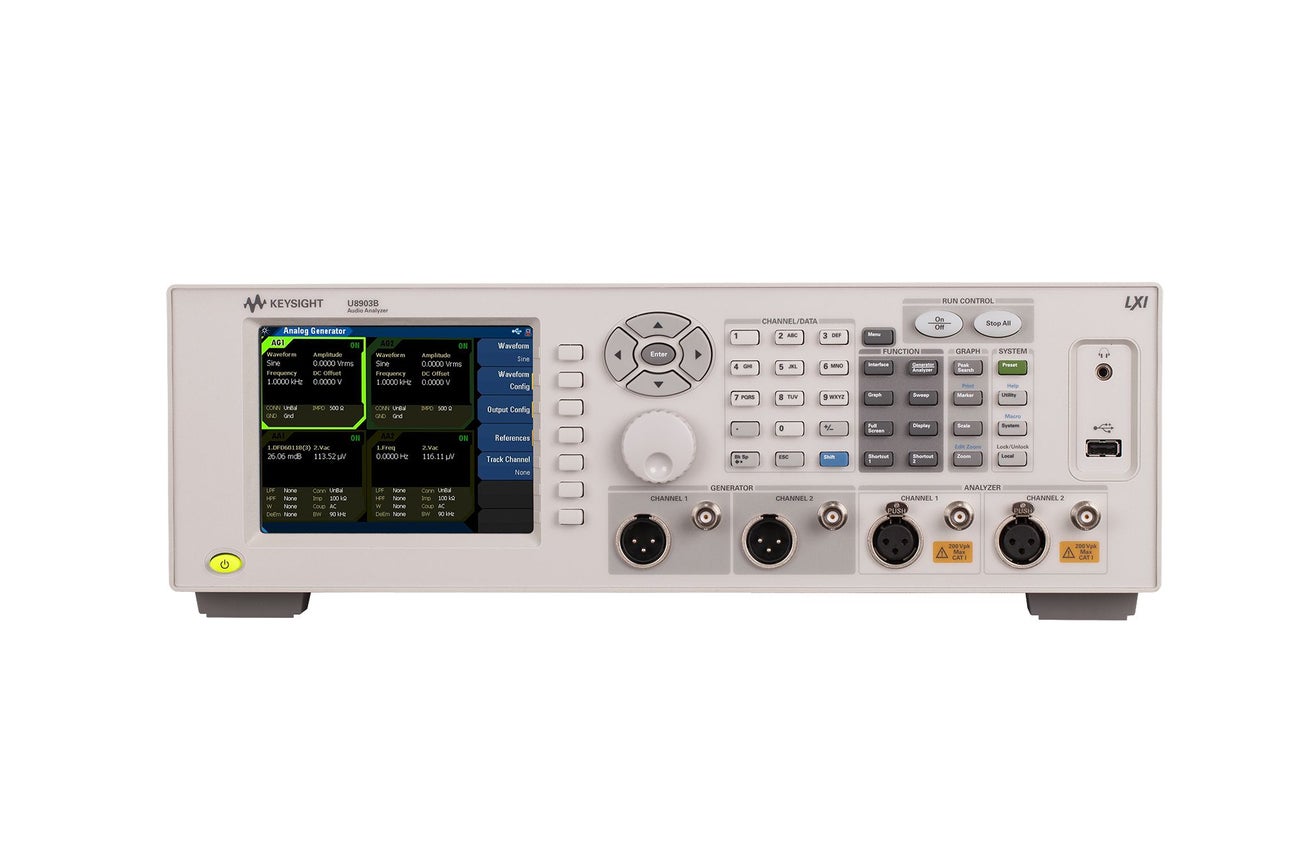

The Keysight U8903B Performance Audio Analyzer allows you to measure the most demanding audio devices with high accuracy. Perform audio measurements via a Bluetooth® link with the new Bluetooth option, and make the highest resolution two-channel measurements available when you expand your bandwidth to 1.5 MHz.

With an extremely low residual distortion of < –110 dB, the Keysight U8903B audio analyzer allows you to measure the most demanding audio devices with a high degree of accuracy. Perform audio measurements via a Bluetooth® link option. Make the highest resolution two-channel measurements available when you expand your bandwidth to 1.5 MHz. With these options and more, the U8903B audio analyzer offers a configurable audio test solution to meet your audio application needs.

Key Features

Test low distortion devices with a low residual distortion of < –110 dB

Expand your measurement bandwidth to measure from DC or 10 Hz to a maximum of 1.5 MHz

Make Bluetooth audio measurements with the new Bluetooth option

Configure the U8903B up to 8 analog analyzer channels

Implement automatic test with the test sequence function

Benefits

Expand your measurement bandwidth

(with the wide bandwidth option N3431A) to measure from DC or 10 Hz to a maximum of 1.5 MHz.

Simplify your testing environment with automatic tests and built-in test sequences.

Configure the U8903B with up to eight analog analyzer channels.

Eliminate the need to rewrite programs into SCPI command with built-in compatibility mode.

Easily meet standards with preconfigured Perceptual Objective Listening Quality Analysis and Perceptual Evaluation of Speech Quality measurements.

Configure for specific applications with a digital audio interface and Bluetooth® audio measurement options.

Characterize signal-to-noise ratios, cross talk, and more.

Specifications
U8903B Performance Audio Analyzer
Features	Parameters
Applications Available	n/a
Applications-Cellular	n/a
Applications-Digital Video	n/a
Applications-General Purpose	SCPI Code Compatibility
Applications-Wireless Connectivity	n/a
DANL @1 GHz	n/a
Frequency	10 Hz to 1.5 MHz
Frequency Options	n/a
Maximum Analysis Bandwidth	1.5 MHz
Maximum Real-Time Bandwidth	n/a
Overall Amplitude Accuracy	±0.03 dB
Performance Level	◆◆◇◇◇◇
Type	Benchtop
Triggering	n/a

Specifications
U8903B Performance Audio Analyzer
Model Overview
Model	Description
U8903B-STD	Performance Audio Analyzer, 2 channels Included Accessories: USB cables Power cord Keysight U8903B audio analyzer product reference CD-ROM Certificate of calibration
Measurement Channel Options
U8903B-AN4	Analog analyzer, 4 channels
U8903B-AN8	Analog analyzer, 8 channels
U8903B-DGT	Digital audio card
Bluetooth Option
U8903B-BLU	Bluetooth card
U8903B-BL2	Bluetooth card, secondary option slot
Bundling Options¹
U8903B-201	Performance audio analyzer with 4 analog analyzer channels, digital audio (AES3/SPDIF and DSI digital audio). This bundle option is suitable for consumer audio or automotive infotainment system test.
U8903B-210	Performance audio analyzer with 4 analog analyzer channels, digital audio (AES3/SPDIF and DSI digital audio) and Bluetooth. This bundle option is suitable for consumer audio or automotive infotainment system test with Bluetooth devices.
U8903B-212	Performance audio analyzer; 2 channels with 50 ohm impedance. This bundle option is suitable for consumer audio test.
Optional Software
N3431A	Wide bandwidth option –1.5 MHz (fixed perpetual license)
N3433A	POLQA and PESQ measurement software (fixed perpetual license)
Optional Accessories
11500A	Cable assembly, Type-N (male) to Type-N (male), DC to 6.0 GHz
U8903A-101	Male BNC to male BNC cable; 1.2 m
U8903A-102	Male BNC to male RCA cable, 2 m
U8903A-103	Male XLR to female XLR cable; 2 m
U8903A-908	Rackmount kit
U8903B-105	Cable, digital serial interface for DSI input and output connection
U8903A-107	Cable, accessory – Male XLR-2 male BNC analyzer, 0.26 m
U8903A-108	Cable, accessory – Female XLR-2 male BNC generator, 0.26 m
U8903A-109	BNC accessory kit
Warranty and Services
U8903B-1A7	ISO17025 compliant calibration with test data
U8903B-A6J	ANSI Z540 compliant calibration with test data

Note:

¹ The bundle options include U8903B-STD and other options. They are designed for some common applications or required by some specific customers.
