Megger ADX-15-RLC
Automated Static Motor Analyzer; with RLC, DC Insulation Resistance, DC HiPot, 15 kV
Modell
ADX-15-RLCProduktfamilie
Electrical & Power QualityHersteller
MeggerKonfigurierte Modelle enthalten die folgenden Merkmale:
Electrical & Power QualityTransformer and Motor TestingKonfigurationen
Wichtigste Daten
Produktübersicht
Ressourcen
Wir helfen Ihnen gerne bei Ihrer genauen Konfiguration
Bitte nutzen Sie die Option "Schnelles Angebot einholen". Wir werden uns dann mit Ihnen in Verbindung setzen und ein Angebot für Ihren genauen Bedarf erstellen
Sie können sich auch an uns wenden, und unsere Experten können Sie mit der richtigen Anwendungs- und Beschaffungslösung für dieses Produkt beraten.
Wichtigste Daten
Wir haben derzeit leider keine Informationen über Kerndaten für dieses Produkt online verfügbar.
Wenn Sie mehr erfahren möchten, wenden Sie sich an uns und ein Mitarbeiter unseres Teams wird Ihnen gern behilflich sein.
Produktübersicht

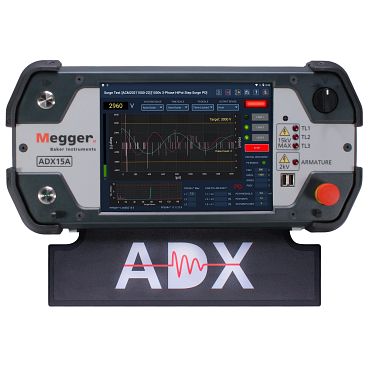

The ADX family includes models designed to perform tests up to 15 kV.
The five main options include 4 kV, 6 kV, 12 kV, 15 kV, and 15 kV-A (Armature). These analyzers can be coupled with PPX to increase test voltages to 30 kV or 40 kV for tests on high voltage motors, coils, and generators.
The Megger Baker ADX is used for motor winding, coil, assembled motor, and generator testing. It will be used by Original Equipment Manufacturers, Industrial Maintenance Engineers, Motor Repair Shops, and Service Engineers working on equipment in the field for verification, validation, fault finding, and research; or to serve as part of a maintenance program.
| Key Features |
| Detachable IEC61010-compliant HV / LV Kelvin test leads |
| PowerDB Dashboard secure cloud-based analysis software |
| 10.4-inch daylight viewable touch screen |
| Industrial IP68 Waterproof Silicone Keyboard |
| Choice of Manual, Automatic, or Sequence testing |
| Screen-level context sensitive help |
| Adaptable search capability |
| Asset management tools |
| Configurable Route based testing |
| Pulse-to-Pulse and Line-to-Line Error Area Ratio analysis |
| Import existing databases from AWA and DX |
| Android operating system |
| 2 x USB ports and ethernet connection |
| HDMI port for duplicating screens |
| Wi-Fi and Bluetooth enabled |
| Foldable viewing stand |
| Benefits |
| Asset-centric approach provides opportunities for turnkey testing. |
| Sequence mode leverages the approach for fully-automatic testing. |
| Data analysis features identify service needs and reduce down time |
| Remote asset configuration via PowerDB Dashboard frees the ADX for testing needs. |
| Separating Asset from Installation opens opportunities for data analysis |
| Tests Performed |
| Winding Resistance |
| Inductance |
| Capacitance |
| Insulation Resistance |
| Dielectric Absorption (DA) |
| Polarization Index (PI) |
| DC HiPot |
| DC Step-Voltage |
| DC Continuous Ramped |
| Surge analysis with EAR+™ |
| Partial Discharge on Surge |
| Specifications | |
ADX Automated Static Motor Analyzer | |
| Feature | Parameter |
Max. Generated Voltage (Peak Voltage for AC or DC Test) | ADX4: Nominal 100 V–4 kV ADX6: Nominal 100 V–6 kV ADX12: Nominal 100 V–12 kV ADX15: Nominal 100 V–15 kV ADX15A: Nominal 100 V–15 kV |
| Internal Memory | RAM 2GB DDR3 |
| Internal Storage | 8GB MMC and 480GB SSD Drive |
| Processor Speed | 1.0 Ghz (Quad core) |
| User Interface | Capacitive touch screen, mouse, keyboard, stylus |
| Platform | Android |
| Display | 10.4-in touch screen |
| Resolution | XGA 1024 x 768 |
| Bluetooth | 4.1 / BLE with CSA2 support |
| Wi-Fi | 802.11 a/b/g/n Dual Band 2.4 / 5 GHz |
| Ethernet | Gigabit Ethernet 10/100/1000 Mbps |
| USB Flash Drive | USB 2.0 |
| Battery Backup | 4+ hours standby time |
| Weight | ADX15: 46.3 lbs. (21 kg) ADX15A: 50.7 lbs. lbs. (23 kg) |
| Dimensions | 18 x 23 x 8.5 in (457 x 584 x 216 mm) |
| Specifications | ||
ADX Automated Static Motor Analyzer | ||
| Model Overview | ||
| Model | Description | Part Number |
| ADX 4 | 4 kV Standard ADX with DC Insulation Resistance (IR, DA, PI), DC HiPot (standard, Step, Ramp), and Surge tests only. | 1013-911 |
| ADX-4-RLC | 4 kV Standard ADX with RLC (low voltage Resistance, Inductance, and Capacitance), DC Insulation Resistance (IR, DA, PI), DC HiPot (standard, Step, Ramp), and Surge tests. | 1013-916 |
| ADX-4-RLC-PD | 4 kV Standard ADX with RLC (low voltage Resistance, Inductance, and Capacitance), DC Insulation Resistance (IR, DA, PI), DC HiPot (standard, Step, Ramp), Surge, and Partial Discharge tests. | 1013-920 |
| ADX-4-RLC-PD-PPI | 4 kV Standard ADX with RLC (low voltage Resistance, Inductance, and Capacitance), DC Insulation Resistance (IR, DA, PI), DC HiPot (standard, Step, Ramp), Surge, and Partial Discharge tests. Includes Power Pack Interface. | 1013-925 |
| ADX-6 | 6 kV Standard ADX with DC Insulation Resistance (IR, DA, PI), DC HiPot (standard, Step, Ramp), and Surge tests only. | 1013-912 |
| ADX-6-RLC | 6 kV Standard ADX with RLC (low voltage Resistance, Inductance, and Capacitance), DC Insulation Resistance (IR, DA, PI), DC HiPot (standard, Step, Ramp), and Surge tests. | 1013-917 |
| ADX-6-RLC-PD | 6 kV Standard ADX with RLC (low voltage Resistance, Inductance, and Capacitance), DC Insulation Resistance (IR, DA, PI), DC HiPot (standard, Step, Ramp), Surge, and Partial Discharge tests. | 1013-921 |
| ADX-6-RLC-PD-PPI | 6 kV Standard ADX with RLC (low voltage Resistance, Inductance, and Capacitance), DC Insulation Resistance (IR, DA, PI), DC HiPot (standard, Step, Ramp), Surge, and Partial Discharge tests. Includes Power Pack Interface. | 1013-926 |
| ADX 12 | 12 kV Standard ADX with DC Insulation Resistance (IR, DA, PI), DC HiPot (standard, Step, Ramp), and Surge tests only. | 1013-913 |
| ADX-12-RLC | 12 kV Standard ADX with RLC (low voltage Resistance, Inductance, and Capacitance), DC Insulation Resistance (IR, DA, PI), DC HiPot (standard, Step, Ramp), and Surge tests. | 1013-918 |
| ADX-12-RLC-PD | 12 kV Standard ADX with RLC (low voltage Resistance, Inductance, and Capacitance), DC Insulation Resistance (IR, DA, PI), DC HiPot (standard, Step, Ramp), Surge, and Partial Discharge tests. | 1013-922 |
| ADX-12-RLC-PD-PPI | 12 kV Standard ADX with RLC (low voltage Resistance, Inductance, and Capacitance), DC Insulation Resistance (IR, DA, PI), DC HiPot (standard, Step, Ramp), Surge, and Partial Discharge tests. Includes Power Pack Interface. | 1013-927 |
| ADX-15 | 15 kV Standard ADX with DC Insulation Resistance (IR, DA, PI), DC HiPot (standard, Step, Ramp), and Surge tests only. | 1013-914 |
| ADX-15-RLC | 15 kV Standard ADX with RLC (low voltage Resistance, Inductance, and Capacitance), DC Insulation Resistance (IR, DA, PI), DC HiPot (standard, Step, Ramp), and Surge tests. | 1013-919 |
| ADX-15-RLC-PD | 15 kV Standard ADX with RLC (low voltage Resistance, Inductance, and Capacitance), DC Insulation Resistance (IR, DA, PI), DC HiPot (standard, Step, Ramp), Surge, and Partial Discharge tests. | 1013-923 |
| ADX-15-RLC-PD-PPI | 15 kV Standard ADX with RLC (low voltage Resistance, Inductance, and Capacitance), DC Insulation Resistance (IR, DA, PI), DC HiPot (standard, Step, Ramp), Surge, and Partial Discharge tests. Includes Power Pack Interface. | 1013-928 |
| ADX-15A | 15 kV Standard ADX with DC Insulation Resistance (IR, DA, PI), DC HiPot (standard, Step, Ramp), and Surge tests only. Includes Armature testing hardware and accessories | 1013-915 |
| ADX-15A-RLC-PD | 6 kV Standard ADX with RLC (low voltage Resistance, Inductance, and Capacitance), DC Insulation Resistance (IR, DA, PI), DC HiPot (standard, Step, Ramp), Surge, and Partial Discharge tests. Includes Armature testing hardware and accessories. | 1013-924 |
