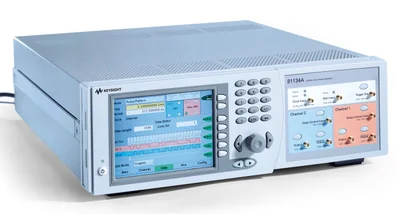

Keysight Technologies 81134A

Pulse Pattern Generator; Dual-Channel, 3.35 GHz

Modell

81134A

Produktfamilie

Digital Design

Hersteller

Keysight Technologies

Konfigurierte Modelle enthalten die folgenden Merkmale:

Digital DesignHigh-Speed ARBS2

Konfigurationen

Wichtigste Daten

Produktübersicht

Ressourcen

Wir helfen Ihnen gerne bei Ihrer genauen Konfiguration

Bitte nutzen Sie die Option "Schnelles Angebot einholen". Wir werden uns dann mit Ihnen in Verbindung setzen und ein Angebot für Ihren genauen Bedarf erstellen

Sie können sich auch an uns wenden, und unsere Experten können Sie mit der richtigen Anwendungs- und Beschaffungslösung für dieses Produkt beraten.

Merkmal	Wert
Channel/Port Count	2

Produktübersicht

When timing and performance requirements are critical, for example in high-speed serial bus applications like PCI Express or Serial ATA, its fast rise times and low intrinsic jitter allow the precise and in-depth characterization of devices, e.g. receivers or backplanes. On top of that, it allows to generate application-specific signal levels like pre- and de-emphasis (PCI Express) or squelch (Serial ATA). The Keysight 81134A lets you test your DUT instead of the pulse or data source!

Key Features

Frequency range from 15 MHz - 3.35 GHz

Two ouput channels

Low jitter

Fast rise times (20%-80%) < 60 ps

Delay modulation (jitter emulation)

Variable cross-over point (eye deformation) LVDS applications can be addressed with output levels from 50 mV to 2 V Pre-/de-emphasis and squelch levels for PCI Express and serial ATA

LVDS applications can be addressed with output levels from 50 mV to 2 V

Pre-/de-emphasis and squelch levels for PCI Express and serial ATA

Benefits

Hardware-based PRBS

Memory-based pattern generation

Basic test patterns for Infiniband, PCI-Express and Serial ATA

Deep 12 MBit pattern memory per channel supports tests that require long data streams like disk drive tests

PC-based Pattern Management Tool, easier to handle long patterns: generate, modify and store patterns on a Microsoft Windows based PC and an easy-to-use function to quickly load the selected pattern to the 81134A via one of the remote control interfaces GPIB, LAN or USB

Clock and data signals distortion

Versatile variable cross-point

Jitter insertion capabilities

Frequency, level and shape of injected jitter variation emulate real-world signals, e.g. by connecting an arbitrary waveform generator like the Agilent 33220A to the Pulse Pattern Generators delaycontrol input

Graphics User Interface: quick access to all relevant parameters

Controllable via the interfaces GPIB, LAN and USB 2.0

Specifications
Pulse Pattern Generators 3.35 GHz
Ordering Information
Model	Description
81133A	3.35 GHz 1-channel pulse/pattern generator
81134A	3.35 GHz 2-channel pulse/pattern generator
Options
8113xA-UK6	Commercial Calibration Certificate with Test Data
8113xA-1CP	Rackmount and Handle Kit
1494-0059	Rack Slide Kit
N4871A	Cable Kit: SMA matched pair, tt=50 ps (Recommended for high performance and differential applications)
