快速报价: FLIR A65SC

400 819 2800需要帮忙？请与我们的专家联系

FLIR A65SC

Thermal Benchtop Test Kit; 640x512, 30Hz

型号

A65SC

产品类别

Thermal

制造商

FLIR

配置型号包含以下特性:

ThermalTemperature Measurement & EnvironmentalInspection Equipment - Cameras and Borescopes

配置

技术指标

产品总览

资源

选择您的配置

显示:

搜索和整合选项，例如“C4000; M400”

FLIR A65SC的可用选项

找不到配置

显示中 1 - 1 的 1 结果

FLIR A65sc 30Hz 640x512 Thermal Benchtop Test Kit

产品编号: P-558199

租赁

查询报价

报价

数量

周

开始日期

二手购置

查询报价

查询

电子邮件 400 819 2800

其他购置方案

查询我们的金融解决方案

显示中 1 - 1 的 1 结果

* 价格及供应情况如有更改，恕不另行通知。所有价格可能因运输条款、增值税或销售税、进口关税和汇率而有所不同。产品可能不是在所有地区都能买到。任何列出的折扣是基于全新仪器的售价并仅供参考;实际折扣可能会因选项、配置、货币汇率和其他因素而有所不同。保修期可能因仪器类别或特定产品而有差异。所有条款均需通过完整的书面报价确认。

¹ 对于我们的品质二手仪器，在发货前需要进行23步认证检查

产品总览

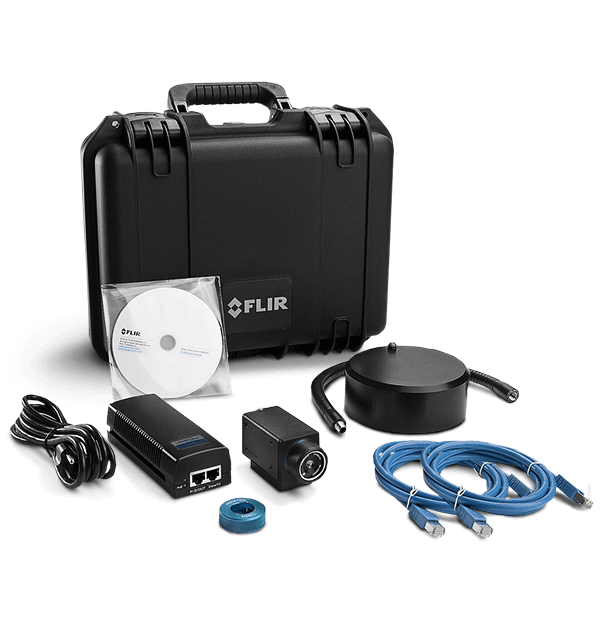

The FLIR A65sc Benchtop Test Kit is the perfect choice for engineering and science labs where size constraints are critical. The uncooled VOx detector offers longwave imaging with thousands of temperature measurement points across your target, for more reliable and comprehensive results than with a thermocouple or spot pyrometer. Together with the kit’s lens choices and advanced analysis software, the A65sc kit is the most dependable temperature measurement solution for industrial and R&D labs.

Benefits
Eliminate Guesswork	Instant non-contact measurements across 327,680 (640 x 512) thermal pixels helps eliminate the guesswork of finding hot spots.
Spot on Detection	With accuracy of ±5% and a thermal sensitivity/NETD of <50 mK, the A65sc offers spot-on detection of fine thermal variations.
Plug and Play	GigE Vision and GenICam compliance means the A65sc is plug-and-play when used with IMAQ Vision or other software packages.

Specifications
FLIR A65sc
Feature	Parameter
IR Resolution	640 × 512 pixels
Resolution	640 × 512
Detector Pitch	17 µm
Spectral Range	7.5–13 µm
Detector Type	Focal plane array (FPA), uncooled VOX microbolometer
f-number	1.25
Sensitivity	<0.05°C @ 30°C/50 mK
Thermal Sensitivity/NETD	<0.05°C @ 30°C (86°F) / 50 mK
Temperature Range	-25°C to 135°C (-13F to 275°F) / -40°C to 550°C (-40°F to 1022°F)
Focus	Fixed
