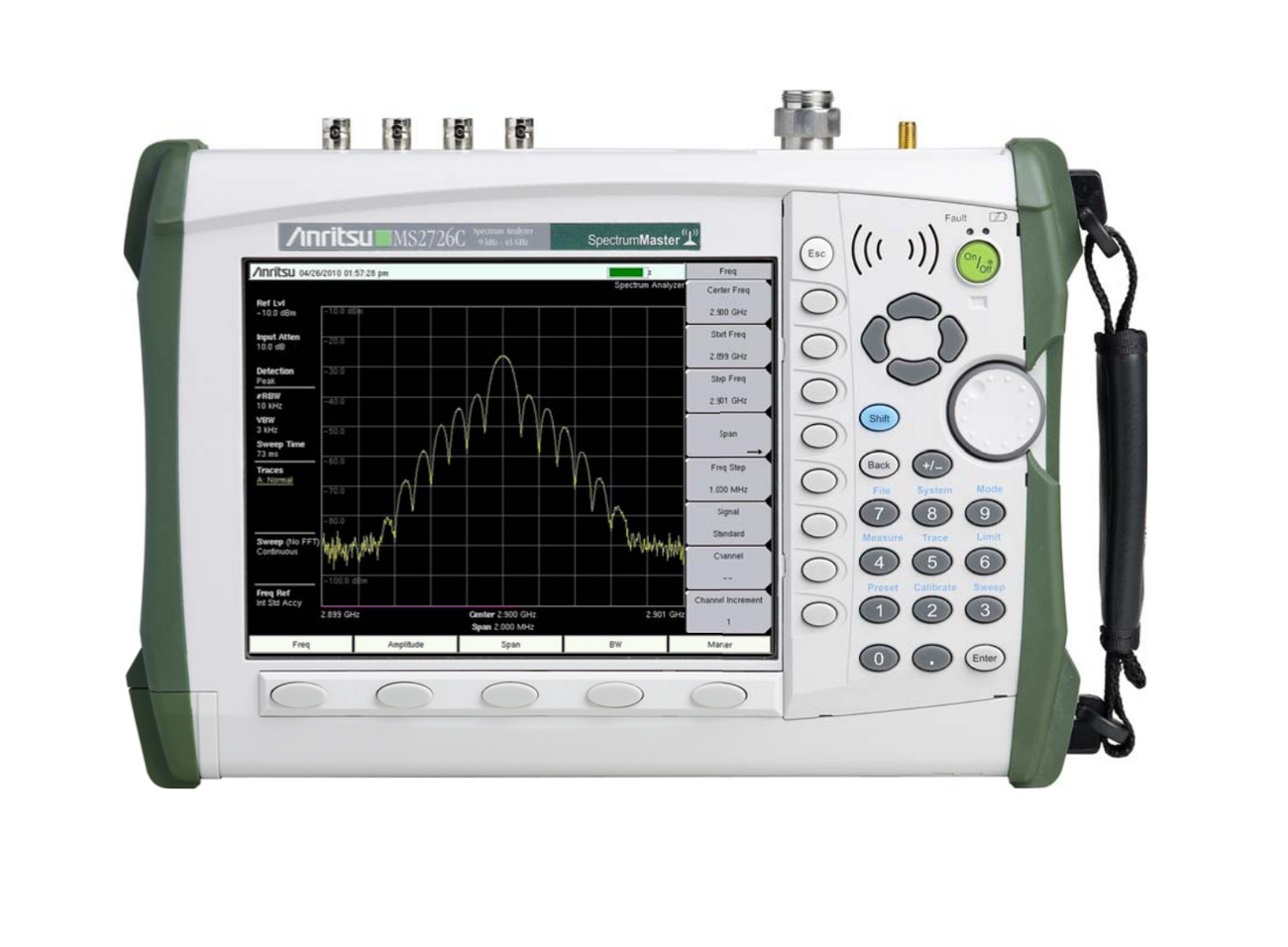

Anritsu MS2726C

Anritsu's latest generation of handheld spectrum analyzers includes the MS2726C Spectrum Master. This represents the company's highest performance handheld spectrum analyzer from the MS272xC family.

Key Features:

• Frequency Coverage - 9 kHz to 43 GHz
• Broadband preamplifiers over the whole frequency range for increased sensitivity around 20 dB
• Three Sweep Modes – with improved Sweep Speed - up to 100 times faster
• Resolution Bandwidths from 1 Hz to 10 MHz
• New triggering choices including hysteresis, hold-off, and delay
• More zero-span capabilities including 10 MHz RBW & VBW
• Enhanced Spectrum Analyzer GUI including large marker display choice
• Choice of display options for readability – normal, black and white, night vision, high contrast
• On-screen Interference Mapping as part of the Interference Analysis option
• LTE Measurements up to 20 MHz
• 30 MHz Wide Zero-Span IF Output at 140 MHz center frequency for external demodulation of virtually any other wideband signal
• Burst detect captures 200 μs bursts the first time, every time

The Spectrum Master MS2726C features over 30 analyzers in one to meet virtually every measurement need. In addition to spectrum analysis a user can select optional capabilities and analyzers including:

• High Accuracy Power Meter
• Interference Analyzer
• Channel Scanner
• 140 MHz Zero-Span IF Output, 30 MHz bandwidth
• GPS Receiver
• Increase frequency accuracy, geo-tag data collection
• Secure data operation
• 3GPP Signal Analyzers
• LTE, GSM/EDGE, W-CDMA/HSPA+, TD-SCDMA/HSDPA
• 3GPP2 Signal Analyzers
• CDMA2000 1X, CDMA2000 1xEV-DO
• IEEE 802.16 Signal Analyzers
• Fixed WiMAX, Mobile WiMAX

For post processing data collected on your instrument utilize Master Software Tools – a PC program included with the instrument. It provides powerful data analysis tools for spectrum clearing and interference monitoring. And the Remote Access Tool allows the user to see and control the instrument over a LAN connection.

Weighing about 8 pounds fully loaded, including a Li-Ion battery, the fully functional Spectrum Master MS2726C family of handheld spectrum analyzers are light enough to take anywhere, including up a tower.

Continuous frequency coverage from 9 kHz to 43 GHz gives the wireless professional the performance needed for the most demanding measurements. Whether your application is spectrum monitoring, hidden signal detection, RF and microwave signal measurements, microwave backhaul testing or cellular signal measurements, the Spectrum Master MS2726C gives you the tools you need to make the job easier and more productive.

Key Specifications:

• Measure: Occupied Bandwidth, Channel Power, ACPR, C/I, Emission Masks
• Interference Analyzer: Spectrogram, Signal Strength, RSSI, Mapping
• Dynamic Range: > 104 dB in 1 Hz RBW
• DANL: –160 dBm in 1 Hz RBW @ 1 GHz preamp On
• Phase Noise: –100 dBc/Hz @ 10 kHz offset at 1 GHz
• Frequency Accuracy: ± 25 ppb with GPS On
• 1 Hz to 10 MHz Resolution Bandwidth (RBW)
• Traces: Normal, Max Hold, Min Hold, Average, # of Averages
• Detectors: Peak, Negative, Sample, Quasi-peak, and true RMS
• Markers: 6, each with a Delta Marker, or 1 Reference with 6 Deltas
• Limit Lines: up to 40 segments with one-button envelope creation
• Trace Save-on-Event: crossing limit line or sweep complete
• Sweep Modes: Fast, Performance, No FFT, burst detect
